5.6 Changing Motor Parameters

Moves are performed using a Trapezoidal or S-Curve velocity profile (see
Section 6.3.4.). The velocity settings relate to the maximum velocity at
which a move is performed, and the acceleration at which the motor
1) On the GUI panel, click the 'Settings' button (bottom right hand corner of the
display) to display the Settings panel.
2) Select the Move/Jogs tab as shown in Fig. 5.5.
3) In the 'Moves' field, change the parameters as follows:
'Max. Vel' - '100'
'Accn/Dec' - '500'
4) Click 'OK' to save the settings and close the window.
5) Any further moves initiated will now be performed at a maximum velocity of 100
mm per second, with an acceleration of 500 mm/sec/sec.
36
speeds up from zero to maximum velocity.

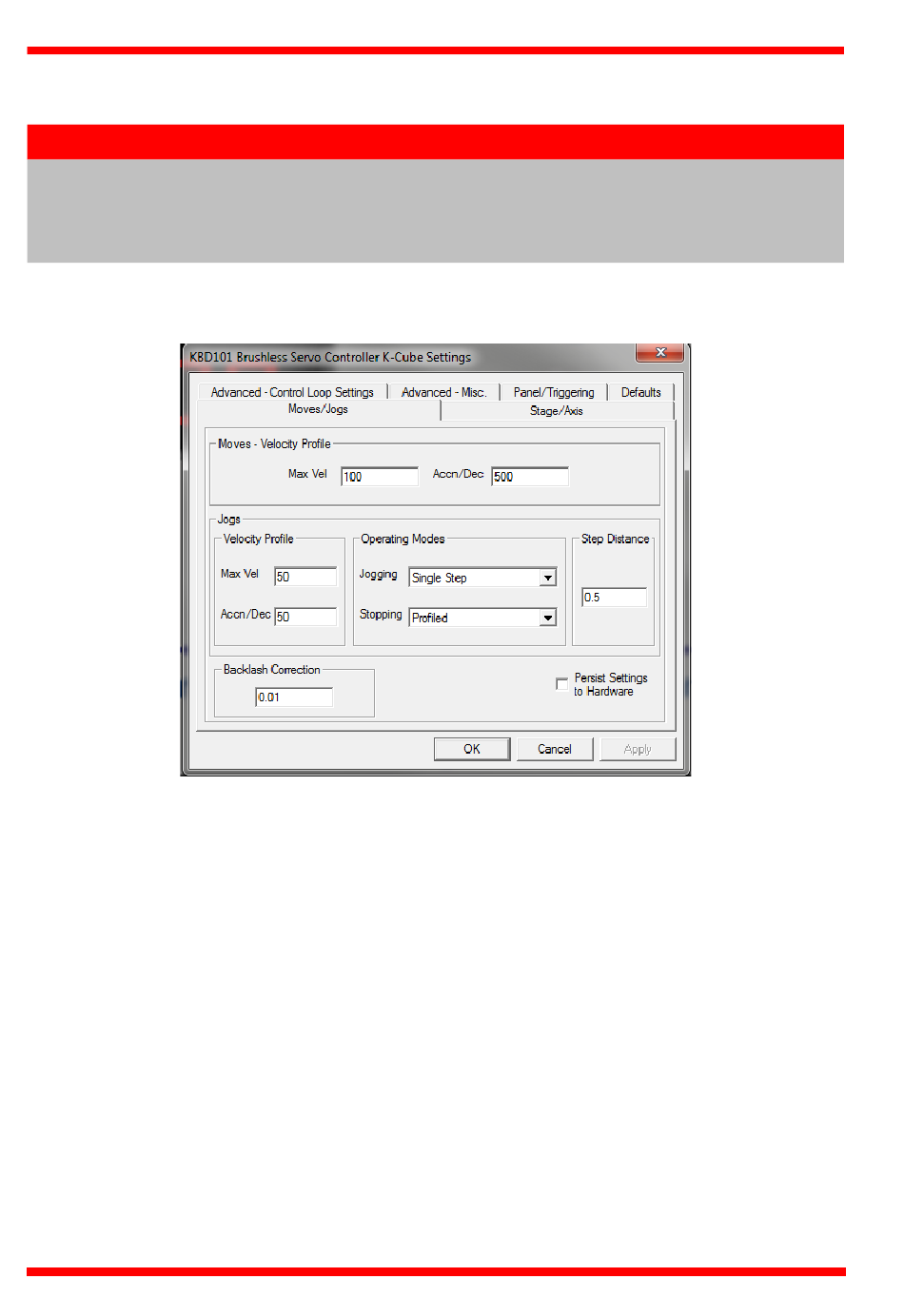

Fig. 5.5 Settings Panel - Move/Jogs Tab
