Outdoor Fan / Fan Motor - Daikin 2AMX40G3V1B Removal Procedure

Si121295

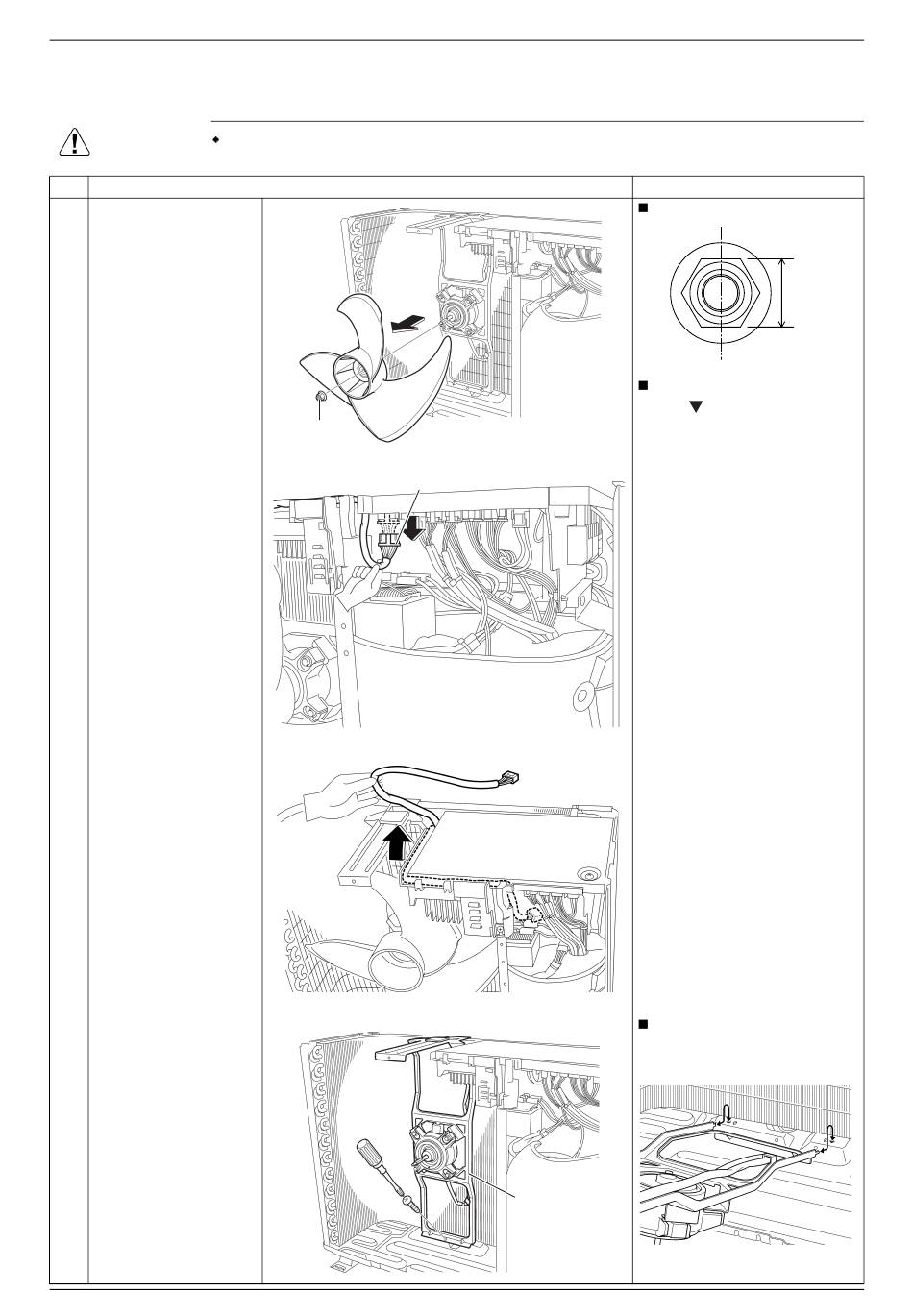

2. Outdoor Fan / Fan Motor

Warning
Step
Remove the nut and
1
remove the outdoor fan.
2 Disconnect the
connector [S70].
Release the fan motor
3
lead wire.
4 Remove the screw and
remove the fan motor
fixing frame.
Removal Procedure
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Procedure
Nut
(R18756)
[S70]
Fan motor
fixing frame
(R7623)
Outdoor Fan / Fan Motor
Points
Nut size: M6
When reassembling, align
the mark of the outdoor
fan with the D-cut section of
the motor shaft.
[S70]: fan motor
(R7621)
(R7579)
When reassembling, fit the
lower 2 hooks into the
bottom frame.
10 mm
(R17216)
(R18757)
3
