Outer Panels - Daikin 2AMX40G3V1B Removal Procedure

Outer Panels

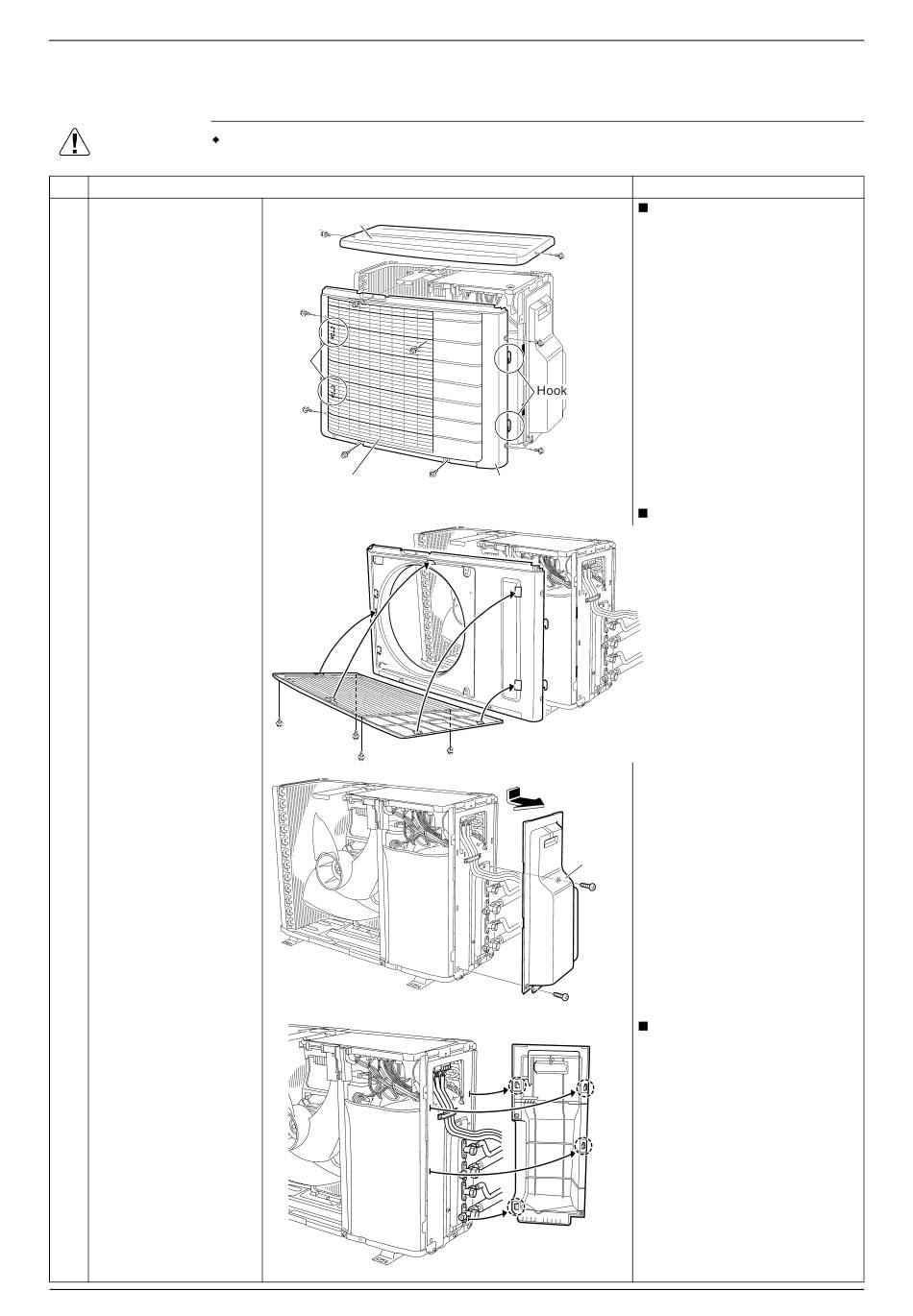

1. Outer Panels
Warning
Step
Remove the 2 screws
1
and remove the top
panel.
2 Remove the 8 screws
and remove the front
panel.
Remove the 4 screws
3
and remove the
discharge grille.
Remove the 2 screws
4
and remove the stop
valve cover.
2
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Procedure
Top panel
Hook
Discharge grille
Front panel
(R18653)
(R12767)
Stop
valve
cover
(R7699)
(R7701)
Si121295
Points
The front panel has 4 hooks.
When reassembling, make
sure to fit the 4 hooks.
When reassembling, make
sure to fit the 4 hooks.
Removal Procedure
