Sound Blankets - Daikin 2AMX40G3V1B Removal Procedure

Sound Blankets

5. Sound Blankets
Warning
Step

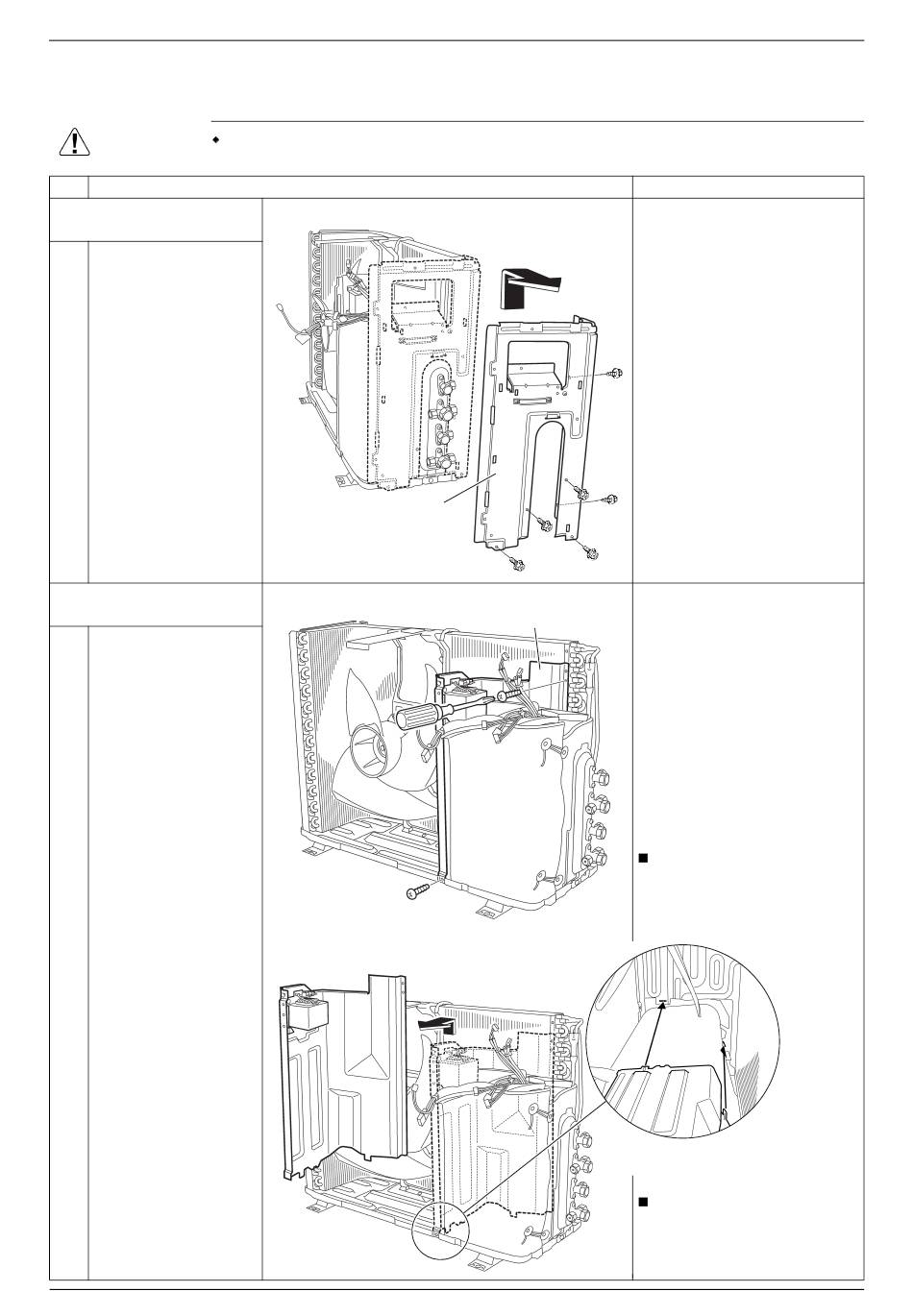

1. Remove the right side
panel.
Remove the 6 screws
1
and remove the right
side panel.
2. Remove the partition
plate.
Remove the 2 screws.
1
2 The partition plate has
2 hooks on the lower
side. Lift and pull the
partition plate and
remove it.
12
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Procedure
Right side
panel
Partition plate
(R7611)
(R7612)
Points
(R12567)
When reassembling, fit the
lower hooks into the bottom
frame.
Remove the screw to
remove the reactor.
Removal Procedure
Si121295
