PCB
Step
6

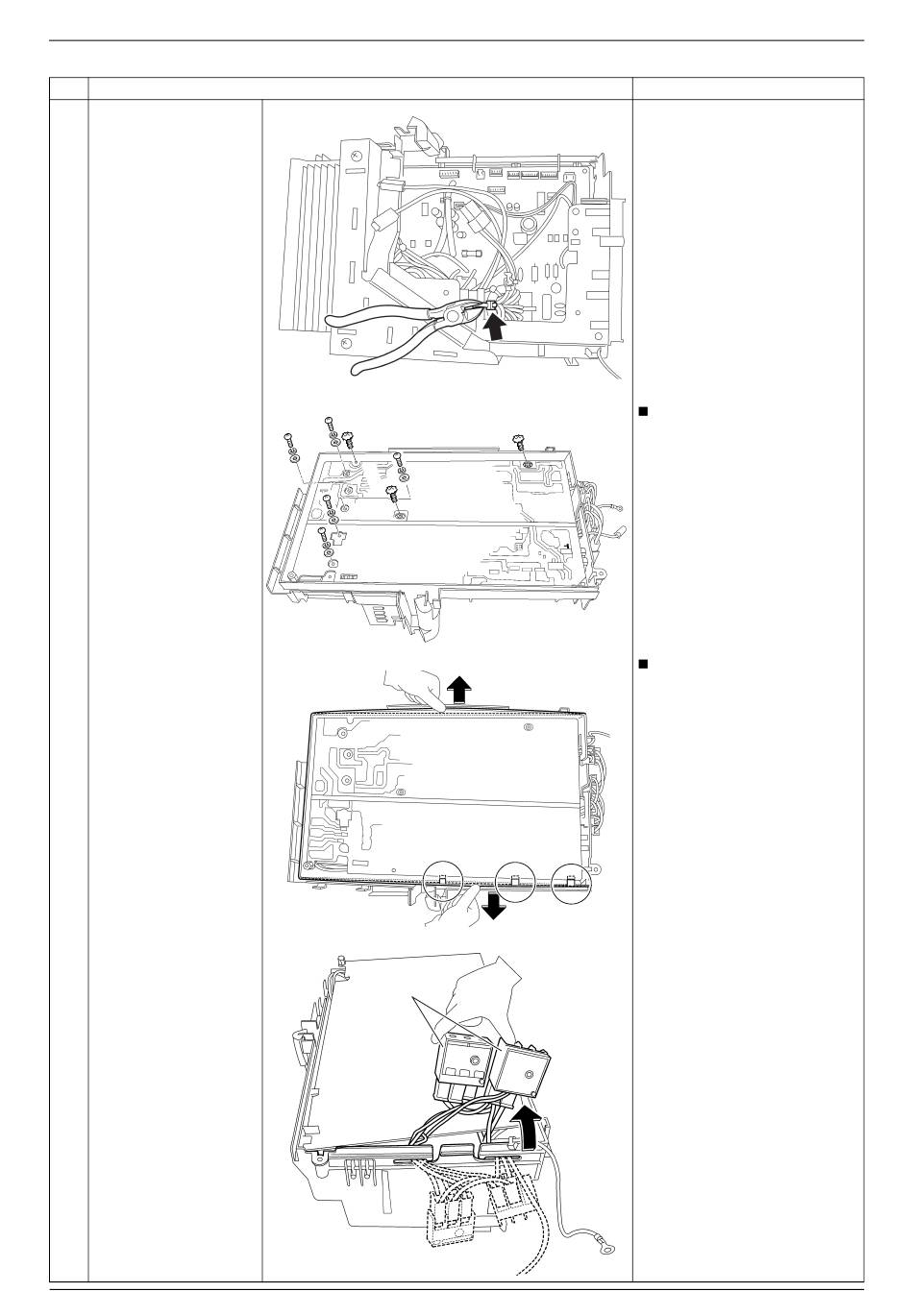

Cut the clamp and
release the wire
harnesses.
Remove the screws to
7
remove the PCB.
8
Lift up the back side of
the electrical box
slightly and unfasten
the 3 hooks.
Release the lead wires
9
from the hooks and
remove the terminal
boards.
10
Procedure
Terminal board
Points
(R7597)
The number of screws varies
depending on the model.
(R18655)
When reassembling, make
sure that the hooks of the
electrical box are placed on
the PCB.
(R7603)
(R7604)
Removal Procedure
Si121295
