Pcb - Daikin 2AMX40G3V1B Removal Procedure

Si121295

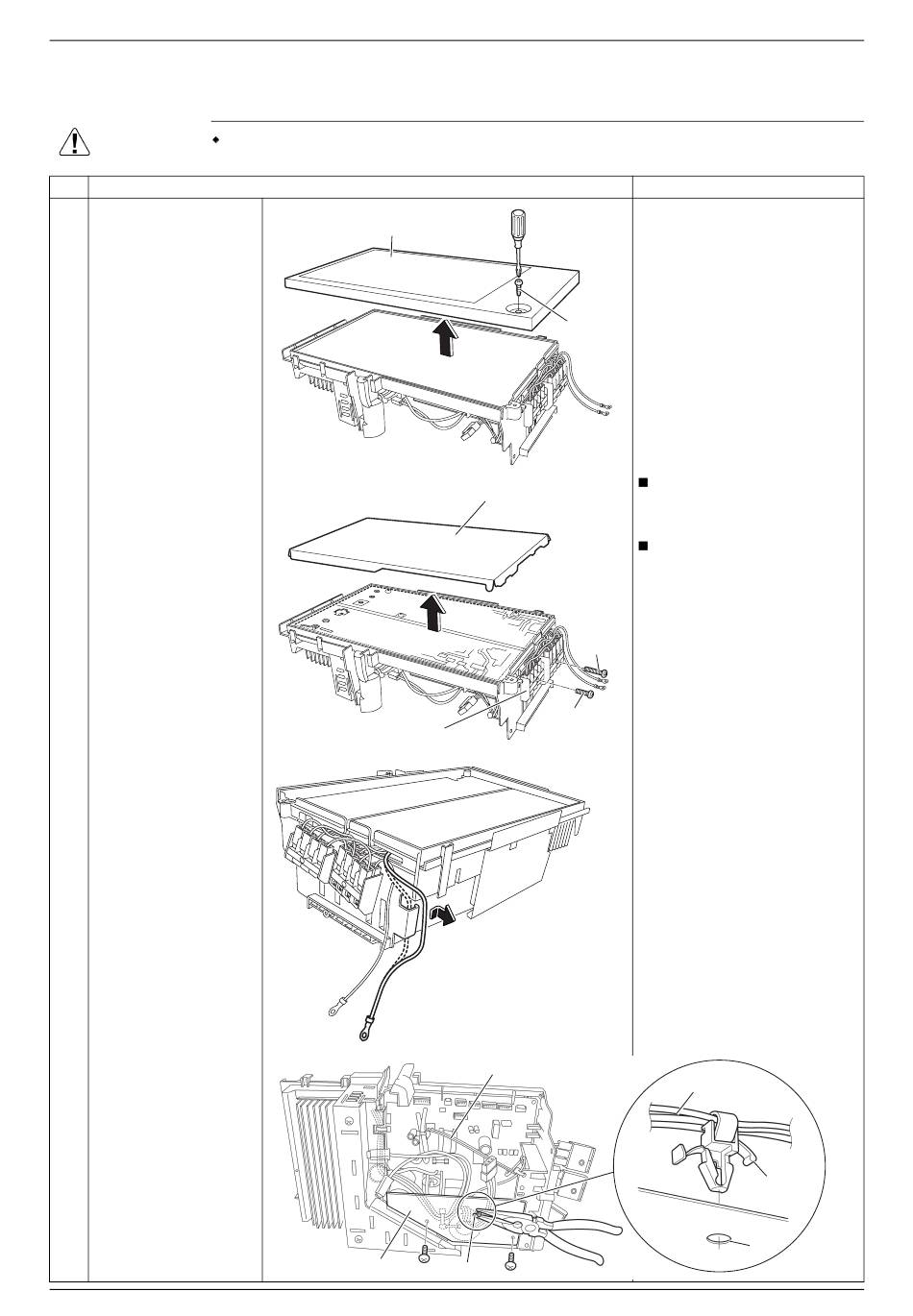

4. PCB

Warning
Step
Remove the screw and
1
remove the electrical
box cover.
Detach the insulation
2
sheet.
3 Remove the 2 screws
and remove the
terminal boards.
Release the earth wire
4
from the hook.
Remove the 2 screws
5
and detach the clip to
remove the radiation
shield plate.
Removal Procedure
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Procedure
Electrical box cover
Terminal board
Radiation shield plate
M4 × 12
(R18654)
Insulation
sheet
M4×35
M4×25
(R18753)
(R12541)
Temperature fuse harness
Clip
(R18754)
PCB
Points
The trimmed part goes front.
The thermal fuse is united
with terminal board.
Compressor
harness
Clip
Hole
