Daikin 2AMX40G3V1B Removal Procedure page 15

Si121295
Step

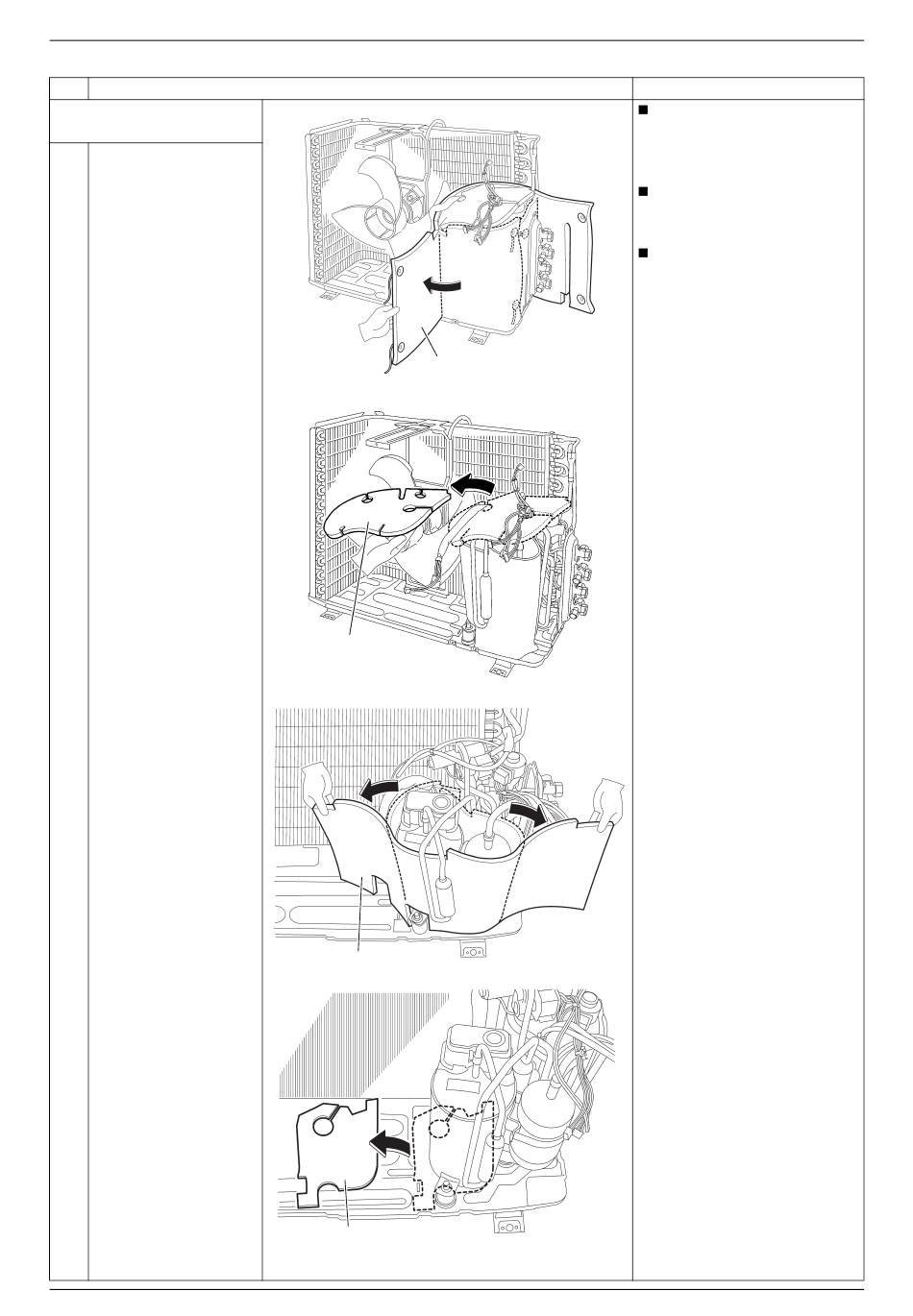

3. Remove the sound
blankets.
1 Untie the strings, open
the sound blanket
(outer) and pull it out.
2 Remove the sound
blanket (top).
3 Open the sound blanket
(inner) and pull it out.
Pull out the sound
4
blanket (bottom).
Removal Procedure
Procedure
Sound blanket (outer)
Sound blanket (top)
Sound blanket (inner)
Sound blanket (bottom)
Since the piping ports are
torn easily, remove the
sound blanket carefully.
Some models have 2 sound
blankets (top).
The design of the sound
blankets is different
depending on the models.
(R7613)
(R18755)
(R7615)
(R7616)
Sound Blankets
