Electrical Box - Daikin ATKC18RV2S Removal Procedure

Si041255EH

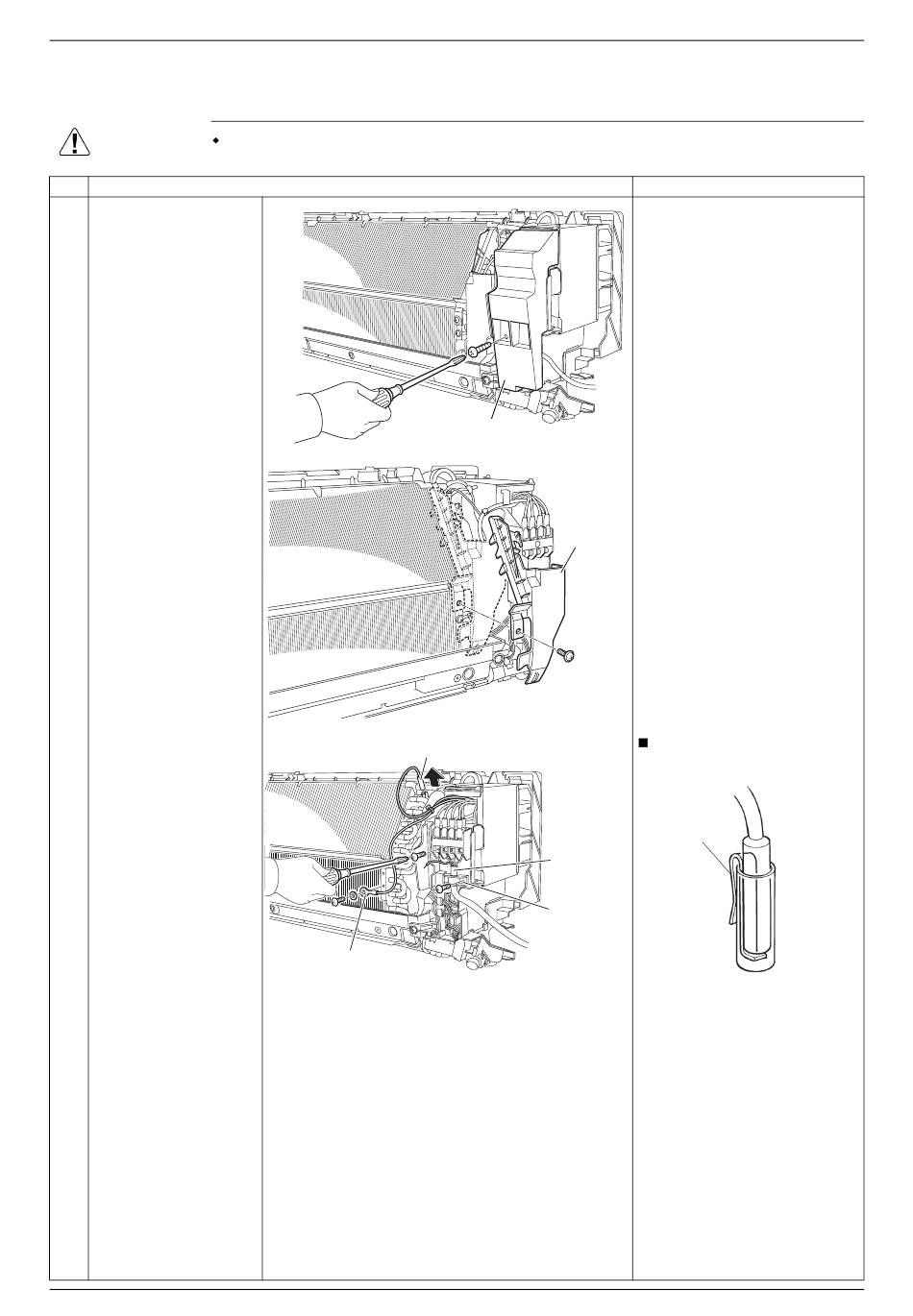

6. Electrical Box

Warning
Step
1 Remove the screw and
remove the service
cover.
2 Remove the screw and
remove the drip proof
plate.
3 Pull out the indoor heat
exchanger thermistor.
4 Remove the screw of
the earth / ground wire.
5 Remove the screw of
the wire fixture.
6 Remove the 4 screws
of the connecting wires.
Removal Procedure
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Procedure
Indoor heat exchanger thermistor
Earth / ground wire
Service cover
(R17675)
Drip proof
plate
(R11343)
Connecting
wire
Wire
fixture
(R18966)
Electrical Box
Points
Be careful not to lose the clip
of the thermistor.
Clip
(R11268)
7
