Horizontal Blades - Daikin ATKC18RV2S Removal Procedure

Si041255EH

4. Horizontal Blades

Warning

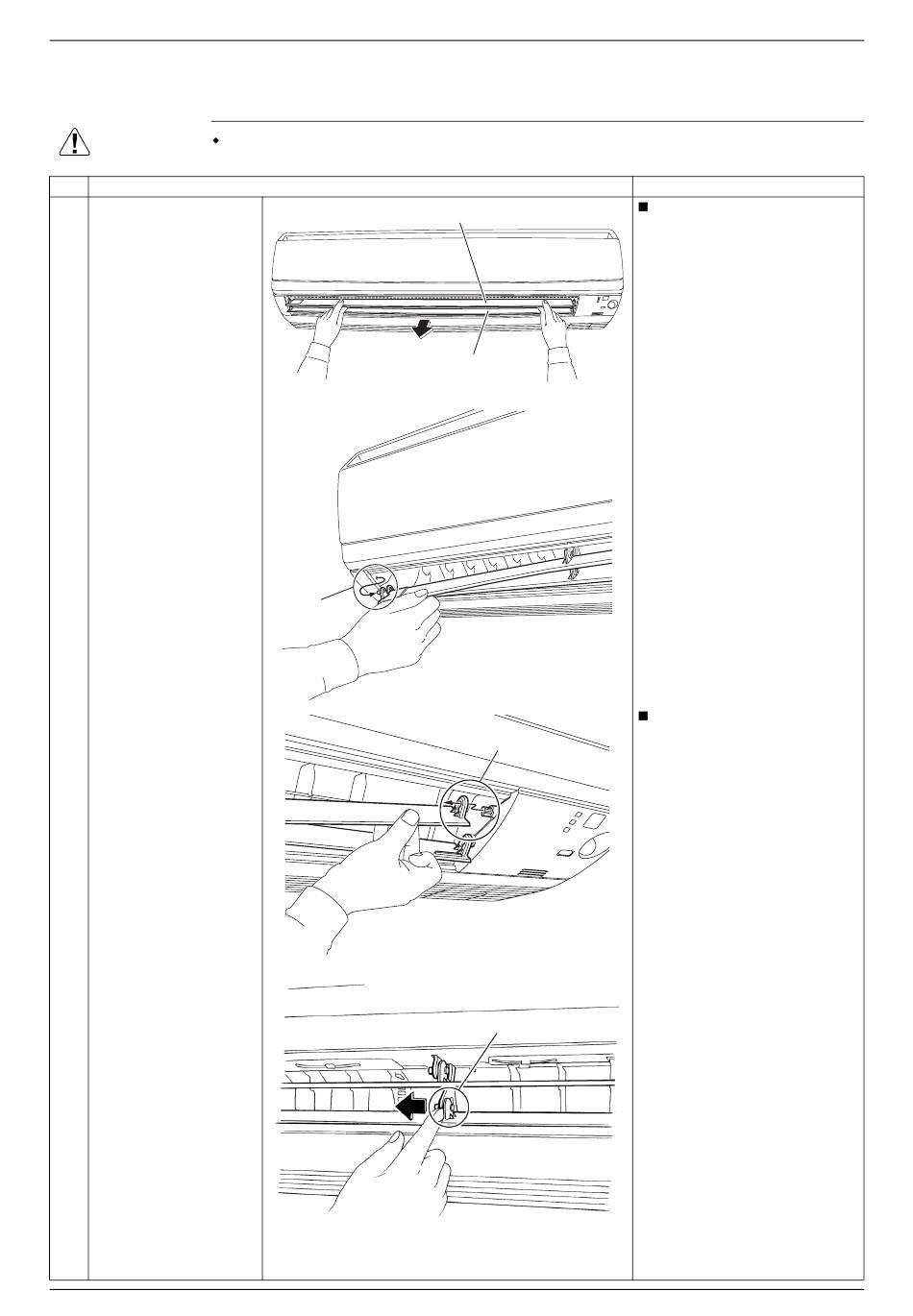

Step
1 Open the horizontal
blades.
2 Release the left shaft of
the horizontal blade
(large).
3 Release the right shaft
of the horizontal blade
(large).
4 Release the 2 center
shafts and remove the
horizontal blade (large).
5 Remove the horizontal
blade (small) in the
same way.
Removal Procedure
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Procedure
Horizontal blade (large)
Horizontal blade (small)
Left shaft
(R11335)
(R11336)
Right shaft
(R23405)
Center shaft
(R2765)
Horizontal Blades
Points
When reassembling, mount
the large horizontal blade to
the upper position and the
small horizontal blade to the
lower position.
Reassembling procedure
1. Fit the horizontal blade to the
right shaft first. Make sure to
rotate the horizontal blade so
the shaft fits correctly.
2. Fit the horizontal blade to the
center and left shafts.
5
