Air Filters - Daikin ATKC18RV2S Removal Procedure

Air Filters

1. Air Filters
Warning
Step

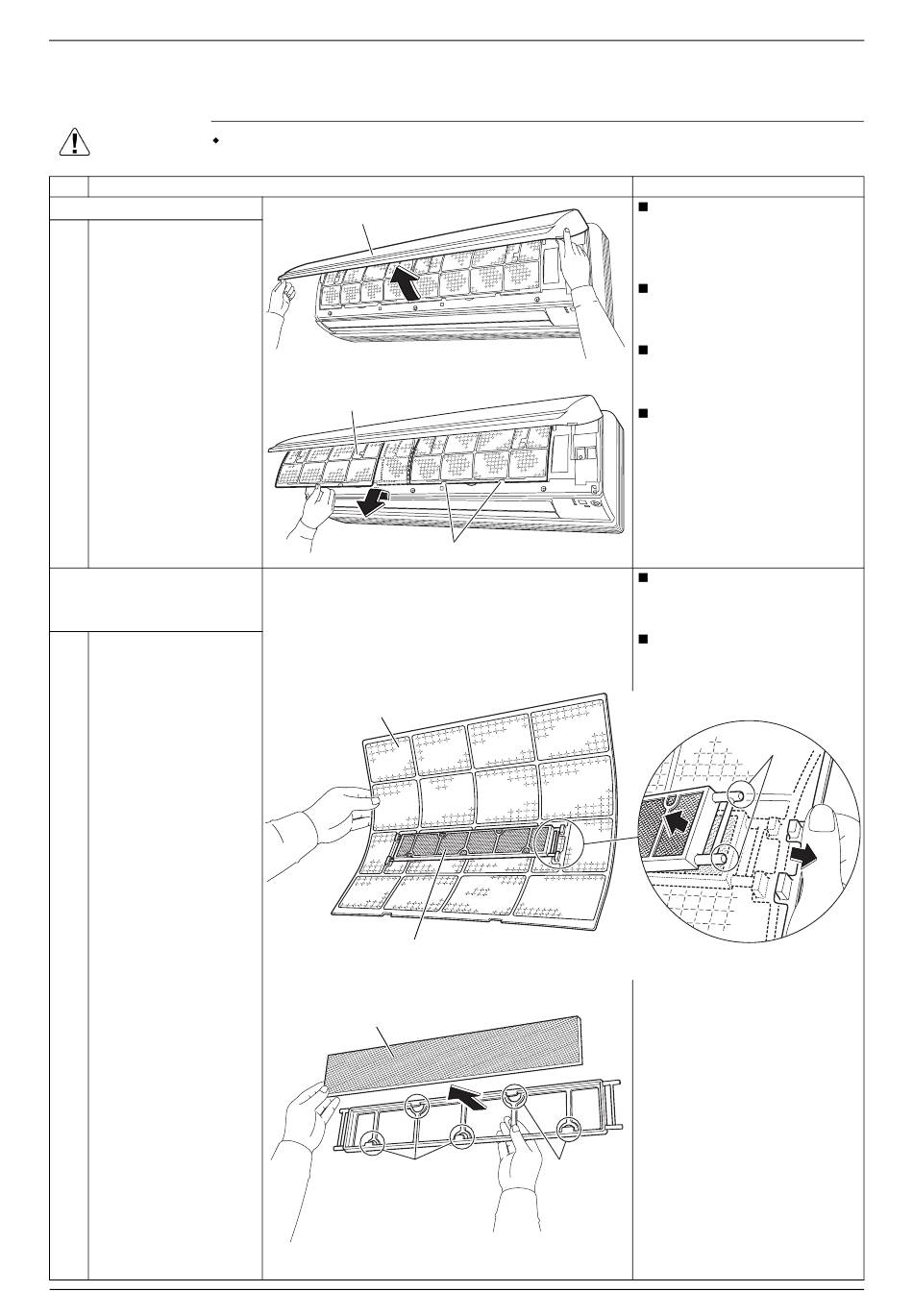

1. Remove the air filters.
1 Open the front panel to
the position where it
stops.
2 Pull out the air filter
downward and remove
it.
2. Remove the Titanium
apatite photocatalytic air-
purifying filters.
1 Remove the Titanium
apatite photocatalytic
air-purifying filter ASSY
from the back of the air
filter.
2 Unfasten the 5 hooks
and remove the
Titanium apatite
photocatalytic air-
purifying filter from the
frame.
2
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Procedure
Front panel
Air filter
Air filter
Titanium apatite photocatalytic
air-purifying filter ASSY
Titanium apatite photocatalytic
air-purifying filter
Hook
(R11322)
(R11323)
Hook
(R17672)
Hook
(R18808)
Si041255EH
Points
The air filter is not marked
for difference between the
right and left sides.
Insert the air filter with the
"FRONT" mark faced up.
When reassembling, insert
the air filter along the guides.
Be sure to fit the 2 bottom
hooks when installing the air
filter.
The right and left filters are
interchangeable.
Bend the air filter and
release the projections from
the air filter frame.
Projection
Removal Procedure
