Front Grille - Daikin ATKC18RV2S Removal Procedure

Front Grille

3. Front Grille
Warning
Step

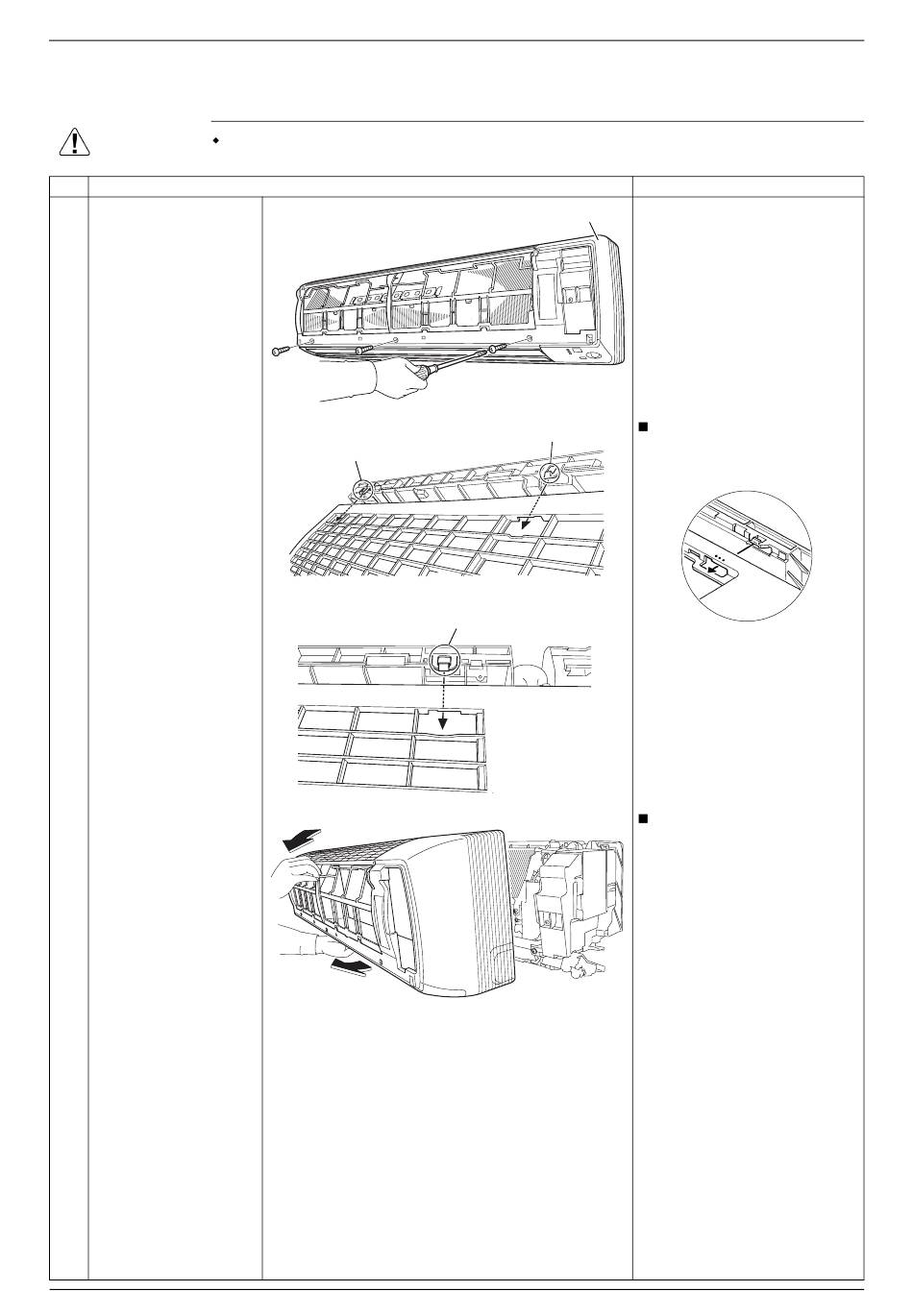

1 Remove the 3 screws
of the front grille.
2 Unfasten the 3 hooks
on the top of the front
grille.
3 Pull out the upper part
of the front grille, lift up
the lower part, and then
remove the front grille.
4
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Procedure
Left hook
Front grille
(R11330)
Center hook
(R17673)
Right hook
(R17674)
(R11334)
Si041255EH
Points
The convex marks (...) on
the front panel indicate the
position of the hooks.
(R12715)
When reassembling, make
sure that the 3 hooks are
fastened.
Removal Procedure
