Operating Instructions

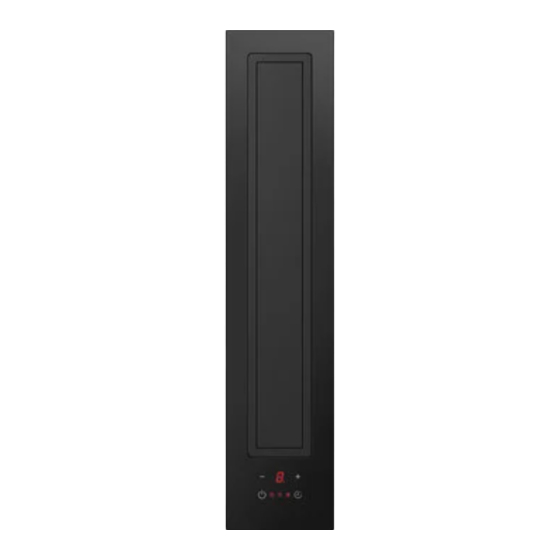

DSMS
Range hood

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSMS and is the answer not in the manual?

Questions and answers

Related Manuals for V-ZUG DSMS

Summary of Contents for V-ZUG DSMS

  • Page 1 Operating Instructions DSMS Range hood...
  • Page 2 Validity These operating instructions apply to: Type Model number Size system DSMS 64005 Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6302 Zug, 2022...

  • Page 3: Table Of Contents

    Contents Safety precautions  4 Quick instructions  24 Symbols used............ 4 General safety precautions........ 4 Appliance-specific safety precautions .... 4 Instructions for use.......... 5 Appliance description  8 Introduction .............  8 Extraction mode .............  8 Recirculation box ...........  8 Features.............. 8 Construction ............ 9 Operating and display elements......

  • Page 4: Symbols Used

    Safety precautions Symbols used Cleaning and user mainten- ance shall not be undertaken Denotes important safety precau- tions. by children without supervi- Failure to observe said precautions sion. can result in injury or in damage to ▪ If an appliance is not the appliance or fittings! equipped with a mains cable Information and precautions that...

  • Page 5: Instructions For Use

    ▪ The use of a gas fired appliance with use in the home and similar the hob hood is only permitted if using a V-ZUG gas hob type listed in the in- settings such as: in staff kit- stallation instructions and the permitted...
  • Page 6 1 Safety precautions ▪ Using another gas appliance type/ ▪ Ensure there is adequate ventilation model or manufacturer is not permitted when the extractor fan is on so as to and can cause lasting damage to the avoid creating underpressure in the kit- range hood.
  • Page 7 1 Safety precautions ▪ The appliance and surrounding com- ponents get hot during operation! Allow the fan flap, gas deflector and other components to cool down before touch- ing them. ▪ Under no circumstances place heated cookware, pots and pans on the operat- ing and display field.

  • Page 8: Appliance Description

    Appliance description Introduction The appliance is designed for use in the home for extracting cooking odours from above a cooking area and can be used in the extraction or recirculation mode. Extraction mode Recirculation mode Extraction mode A fan extracts cooking fumes and smells from above the cooking surface. The metal grease filters clean the extracted air, which is then passed through a connecting pipe fit- ted with an integrated non-return valve and through the air duct to the outside.

  • Page 9: Construction

    2 Appliance description Construction Operating and display elements Fan flap Collection tray Metal grease filter Operating and display elements Buttons Display Reduce power level / Display field (power levels 1–3) reset saturation indicator Increase power level Intensive level Switch appliance on/off Changing to extraction/recirculation mode After-running time...

  • Page 10: Operating The Appliance

    3 Operating the appliance Operating the appliance Using for the first time Appliance configuration The model can be used to extract or recirculate air. The appliance is set up ex-factory for use in the extraction mode. If the appliance is to be operated as an extraction model, the saturation indicator for the activated charcoal filters must be deactivated.

  • Page 11: Setting The Power Level

    3 Operating the appliance If operating a permitted gas appliance, the hob hood must be fitted with the dedic- ated gas deflector 1031218 (accessory)! Operating a gas appliance without a gas deflector is not permitted! Procedure if using a gas appliance: ▸...

  • Page 12: After-Running Time

    4 Care and maintenance After-running time ▸ Open the fan flap and switch the appliance on with the button. ▸ Use the button to select the required power level. ▸ Touch the button to activate the after-running time. – While the after-running time is activated, the corresponding display symbol illu- minates.

  • Page 13: Metal Grease Filters

    4 Care and maintenance Cleaning the outside/inside ▸ Clean the outside of the appliance with a warm, damp cloth and a little detergent and then wipe dry. – Grease and condensate water can build up on the inside around the metal grease filters.

  • Page 14: Recirculation Box With Activated Charcoal Filters

    4 Care and maintenance If no dishwasher is available: ▸ Clean the grease filters 2 in the sink with hot water and detergent. ▸ Then soak the grease filters 2 in hot water in the sink for about two hours and finally clean with a washing-up brush.

  • Page 15: Trouble-Shooting

    5 Trouble-shooting Trouble-shooting What to do if... … the appliance is not working Possible cause Solution ▪ Fuse or automatic circuit breaker for ▸ Replace the fuse. electrical installations in the home is ▸ Reset the automatic circuit breaker. defective. ▪...

  • Page 16: Technical Data

    Product fiche In accordance with EU Regulation No. 65/2014 and No. 66/2014. Description Abbreviations Unit Value Brand V-ZUG LTD Model identifier 64005 Annual Energy Consumption kWh/a 40.4 hood Energy Efficiency Index 48.7...

  • Page 17: Disposal

    8 Disposal Measured air flow rate at the best effi- 286.0 ciency point Measured air pressure at the best effi- 490.0 ciency point Measured value of the electric power 123.0 input at the best efficiency point Nominal power of the lighting system Average illumination of the lighting middle system over the cooking surface...
  • Page 18 Gridiron Building Silom Road N1C 4G London Suriyawong Sub-district GREAT BRITAIN Bangrak District Bangkok 10500 THAILAND HK/MO V-ZUG Hong Kong Co. Ltd. GÜRELLER 12/F, 8 Russell Street Anchor Sit.3A/1-2 Çayyolu Causeway Bay 06690 ÇANKAYA/ANKARA HONG KONG TURKEY Frigo 2000 S.p.A Private enterprise “Stirion”...

  • Page 19: Index

    Index Note on use ............. 6 Safety warnings Accessories ............15 Appliance-specific .......... 4 Addresses of the importers ......18 General ............. 4 After-running time..........12 Saturation indicator.......... 12 Appliance Service & Support..........23 Disposal............ 17 Suction performance Appliance configuration........10 Optimizing .............  10 Appliance description ........

  • Page 20: Notes

    Notes...

  • Page 23: Service & Support

    V‑ZUG service centre. Technical questions, accessories, warranty extensions V-ZUG is happy to help you with any general administrative or technical queries, to take your orders for accessories and spare parts and to inform you about our progressive service agreements.
  • Page 24 Switch appliance on/off Changing to extraction/recirculation mode After-running time Saturation indicator reset After-running time is switched on Saturation indicator for the metal grease filters Saturation indicator for recirculation box (recirculation mode only) 1030007-04 V-ZUG Ltd, Industriestrasse 66, CH-6302 Zug info@vzug.com, www.vzug.com...
