Summary of Contents for V-ZUG DSDSR12

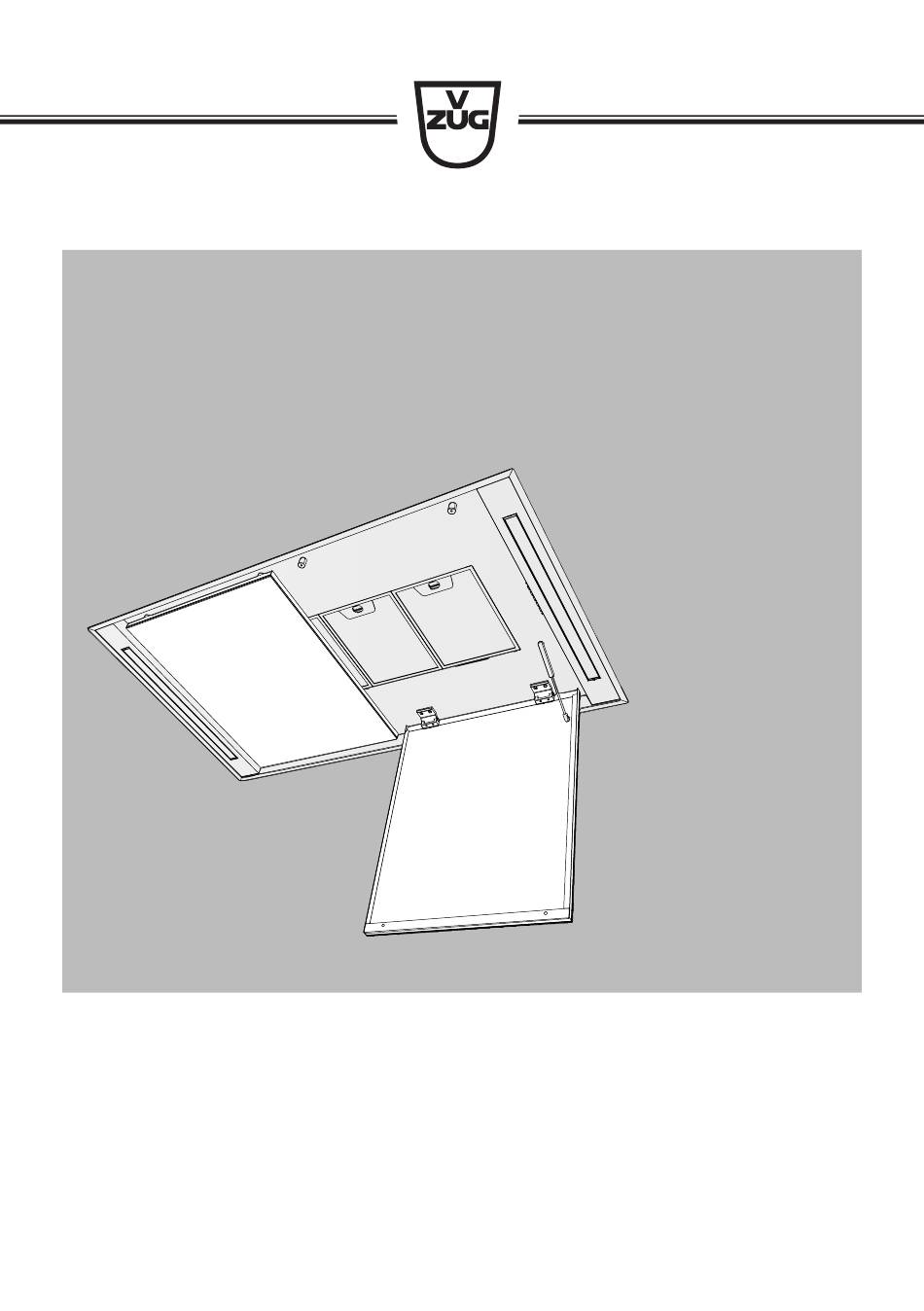

- Page 1 Operating instructions DSDSR12 Range hood...
- Page 2 The model number corresponds to the first alphanumerics on the identification plate. These operating instructions apply to: Type Product family Size system DSDSR12 64003 DSDSR12 64008 Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6302 Zug, 2019...
-
Page 3: Table Of Contents
Table of contents Safety precautions 4 Service & Support 19 Symbols used............ 4 General safety precautions........ 4 Appliance-specific safety precautions .... 4 Instructions for use.......... 5 Appliance description 7 Extraction model ............ 7 Recirculation model with recirculation box.. 7 Equipment ............... 7 Construction ............ -
Page 4: Safety Precautions
Safety precautions Symbols used Cleaning and user mainten- ance shall not be undertaken Denotes important safety precau- tions. by children without supervi- Failure to observe said precautions sion. can result in injury or in damage to ▪ If an appliance is not the appliance or fittings! equipped with a mains cable Information and precautions that... -
Page 5: Instructions For Use
1 Safety precautions ▪ The extracted air must not be motels and other accommod- fed into a chimney which is ation establishments; in bed used for exhausting fumes and breakfast establishments. from appliances burning gas ▪ Do not operate the appliance or other fuels. - Page 6 1 Safety precautions ▪ Use original spare parts only. Caution: Burns hazard! ▪ Retain these operating instructions for ▪ Do not leave the appliance unattended future reference. when deep-frying on the cooking sur- Note on use face. The cooking oil in the deep-frying ▪...
-
Page 7: Appliance Description

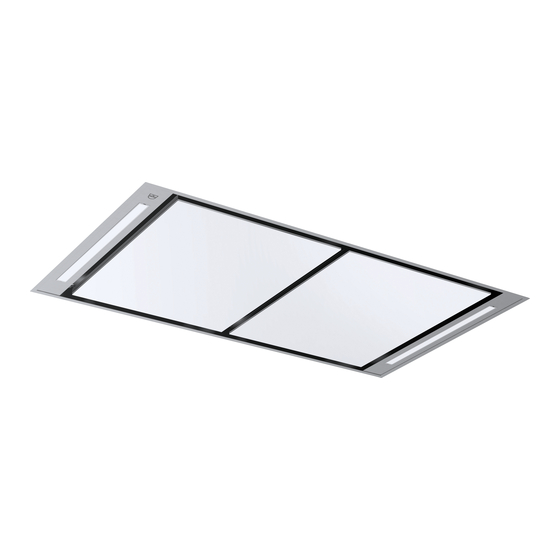

Appliance description The appliance is designed for use in the home for extracting cooking fumes and smells from above the cooking surface. The appliance is used in extraction mode. Extraction model A fan draws cooking fumes and smells from above the cooking area. The metal grease filters clean the extracted air, which is passed through a connecting pipe fitted with an in- tegrated non-return valve and through the air duct to the outside. -
Page 8: Operating And Display Elements
2 Appliance description Operating and display elements Remote control infrared port Switch illumination on/off; change light intensity Power level 1 / switch appliance off; activate after-running time Power level 2 Power level 3 Intensive level Saturation indicator for metal grease filters / activated charcoal filters Depending on the model and features, the specification of your appliance may dif- fer in individual details from the standard specification described. -
Page 9: Operation
3 Operation Operation Activating/deactivating the remote control The appliance can be operated using the operating and display elements on the appli- ance or via the remote control. We recommend operating the appliance using the remote control. ▸ When the appliance is switched off, hold the button depressed for five seconds. -
Page 10: Switching The Intensive Level On / Off Before Time
3 Operation Switching the intensive level on / off before time ▸ Touch the button. – The button illuminates. – The intensive level switches on. ▪ If a power level had been running beforehand, then the appliance will automatically re- vert to this power level after six minutes have elapsed. -
Page 11: Saturation Indicator For Metal Grease Filters
3 Operation Saturation indicator for metal grease filters After 100 operating hours, the saturation indicator flashes when the range hood is switched on and off. The saturation level has been reached and the metal grease filters must be cleaned. Resetting the saturation indicator ▸... -
Page 12: Care And Maintenance
4 Care and maintenance Care and maintenance Cleaning the housing Ensure that no water gets into the housing of the appliance! If water gets into the housing, it can cause damage. Do not use abrasive cleaners, scouring pads, steel wool, etc. for cleaning as the surface could otherwise be damaged. -
Page 13: Trouble-Shooting
5 Trouble-shooting Installation ▸ Insert each grease filter 3 into the support 4. ▸ Push the handle 2 backwards and let the grease filter 3 lock into the sup- port at the top. ▸ Swing the panels 1 upwards. 2 3 3 Recirculation mode with recirculation box For care and maintenance as well as for replacing the activated charcoal filters, see the instructions for the recirculation box. -
Page 14: Accessories And Spare Parts
6 Accessories and spare parts Accessories and spare parts Please give product family of the appliance and exact designation of the accessory or spare part when ordering parts. Metal grease filters Activated charcoal filter for the recircula- tion box Technical data Electrical connection ▸... -
Page 15: Disposal
8 Disposal Disposal Packaging Never allow children to play with packaging material due to the danger of injury or suffocation. Store the packaging material in a safe location or dispose of it in an environmentally-friendly way. Safety Render the appliance unusable to prevent accidents caused by improper use (e.g. through children playing): ▸... -
Page 16: Index
Index Operating elements Remote control.......... 8 Accessories ............14 Activated charcoal filter ........7 Appliance disposal .......... 15 Power level Hood .............. 11 Changing light intensity On the hood.......... 11 Queries .............. 19 Changing power level With remote control........ 9 CleanAir function..........10 Recirculation model with recirculation box Cleaning ................ -
Page 17: Notes
Notes... - Page 19 Your repair order Call the free service number 0800 850 850 to contact your nearest V-ZUG service centre. You can arrange an on-site visit by us by phone if you wish. General queries, accessories and service agreement V-ZUG will be happy to help you with any general administrative or technical queries, to accept your orders for accessories and spare parts and to inform you about our pro- gressive service agreements.
- Page 20 Switch after-running time or CleanAir function on / off before time J64003013-R05 V-ZUG Ltd, Industriestrasse 66, CH-6302 Zug Tel. +41 58 767 67 67, Fax +41 58 767 61 61 info@vzug.com, www.vzug.com Service Centre: Tel. 0800 850 850...
