Operating Instructions

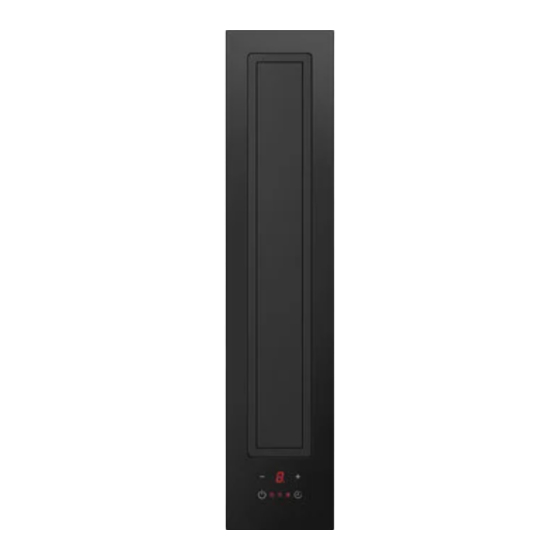

DSMS
Range hood

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSMS and is the answer not in the manual?

Questions and answers

Related Manuals for V-ZUG DSMS

Summary of Contents for V-ZUG DSMS

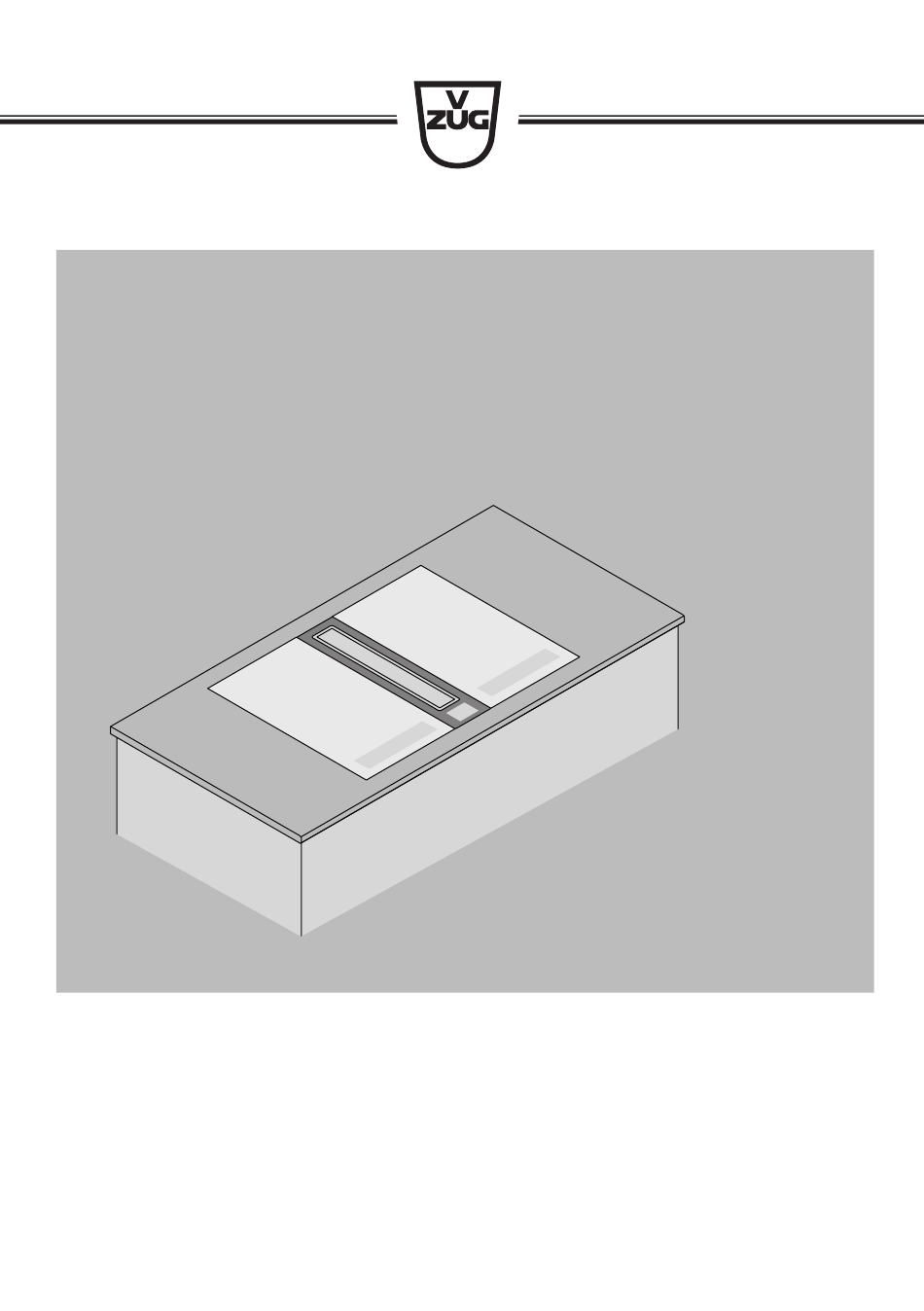

  • Page 1 Operating Instructions DSMS Range hood...
  • Page 2 The product family (model number) corresponds to the first alphanumerics on the identification plate. These operating instructions apply to: Type Product family Size system DSMS 64005 Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6301 Zug, 2017...

  • Page 3: Table Of Contents

    Contents 1 Safety precautions  5 Symbols used ...................... 5 General safety precautions .................  6 Before using for the first time ................ 7 Correct use...................... 7 Children in the home....................  7 Note on use ...................... 8 2 Disposal  10 3 Appliance description  11 Appliance description .................. 11 Extraction mode .................... 11...
  • Page 4 Quick instructions  28...

  • Page 5: Safety Precautions

    Safety precautions Symbols used Denotes important safety precautions. Failure to observe said precautions can result in injury or in damage to the appliance or fittings! Information and precautions that should be observed. Information on disposal Information about the operating instructions ▸...

  • Page 6: General Safety Precautions

    1 Safety precautions General safety precautions ▪ Read the operating instructions before using the appliance for the first time! ▪ This appliance can be used by children aged 8 and above and by persons with reduced physical, sensory or mental cap- abilities, or lack of experience and/or knowledge, provided they are supervised or have been instructed on the safe use of the appliance and have understood the hazards involved.

  • Page 7: Before Using For The First Time

    1 Safety precautions Before using for the first time ▪ The appliance must be installed and connected to the electricity supply in accordance with the separate installation instructions. Have a qualified fitter/ electrician carry out the necessary work. ▪ Observe the official regulations for the exhaust-air layout. ▪...

  • Page 8: Note On Use

    1 Safety precautions Note on use ▪ If the appliance is visibly damaged, do not use it. Contact our Customer Services. ▪ If the appliance is not functioning properly, disconnect it from the power supply immediately. ▪ If the mains cable of the appliance is damaged, it must be replaced by Cus- tomer Services in order to avoid hazard.
  • Page 9 1 Safety precautions ▪ If other firing systems are being used at the same time (e.g. wood, gas, oil or coal fired heating appliances), safe operation is only possible providing a room negative pressure of 4 Pa (0.04 mbar) is not exceeded at the location of the appliance.

  • Page 10: Disposal

    Disposal Packaging ▪ All packaging materials (cardboard, plastic film (PE) and polystyrene (EPS)) are marked and should be collected for recycling and disposed of in an en- vironmentally friendly way. Disconnection ▪ Disconnect the appliance from the mains. With a fixed appliance, this is to be carried out by a qualified electrician! Safety ▪...

  • Page 11: Appliance Description

    Appliance description Appliance description The appliance is designed for use in the home for extracting cooking odours from above a cooking area and can be used in the extraction or recirculation mode. Extraction mode A fan draws cooking fumes and smells from above the cooking area. The metal grease filters clean the extracted air, which is passed through a connect- ing pipe fitted with an integrated non-return valve and through the air duct to the outside.

  • Page 12: Construction

    3 Appliance description Construction Operating and display elements Fan flap Collection tray Metal grease filter...

  • Page 13: Operating And Display Elements

    3 Appliance description Operating and display elements Buttons Reduce power level / Reset saturation indicator Increase power level Switch appliance on/off After-running time Displays Display field (power level 1-3) Intensive level Setting for extraction/recirculation mode Reset saturation indicator After-running time switched on Saturation indicator for metal grease filters Saturation indicator for activated charcoal filters (only for recirculation mode)

  • Page 14: Operating The Appliance

    Operating the appliance Using for the first time Appliance configuration The model can be used to extract or recirculate air. The appliance is set up ex-factory for use in the extraction mode. If the appliance is to be operated as an extraction model, the satura- tion indicator for the activated charcoal filters must be deactivated.

  • Page 15: Optimizing The Suction Performance

    4 Operating the appliance Optimizing the suction performance Using suitable pan lids and tilting them slightly intensifies the suction performance of the downdraft hood. ▸ Slightly tilt the pan lid so that the steam and odours given off dur- ing cooking can be extracted more efficiently into the downdraft hood.

  • Page 16: Intensive Level

    4 Operating the appliance Intensive level ▸ Open the fan flap and switch the appliance on with the button. ▸ Select and hold the button until appears in the display field. – The intensive level switches on and runs for 6 minutes before the appli- ance automatically switches back to the previously set power level.

  • Page 17: Saturation Indicator

    4 Operating the appliance Saturation indicator Metal grease filters display symbol illuminates after 50 operating hours. The saturation level has been reached and the metal grease filters must be cleaned. Activated charcoal filter in the recirculation box (only for recirculation mode) display symbol illuminates after 550 operating hours.

  • Page 18: Care And Maintenance

    Care and maintenance Cleaning the housing Take care that no water gets into the housing of the appliance! If wa- ter gets into the housing, it can cause damage. Do not use abrasive cleaners, scouring pads, steel wool, etc. for cleaning, as they can damage the surface.

  • Page 19: Metal Grease Filters

    5 Care and maintenance Metal grease filters The metal grease filters must be cleaned at least once a month with normal use or whenever the saturation indicator illuminates. If properly cared for, the grease filters should provide years of service. Do not damage the collection tray or metal grease filters when in- serting/removing them.
  • Page 20 5 Care and maintenance If no dishwasher is available: ▸ Clean the grease filters 2 in the sink with hot water and detergent. ▸ Then soak the grease filters 2 in hot water in the sink for about two hours and finally clean with a washing-up brush.

  • Page 21: Recirculation Box With Activated Charcoal Filters

    5 Care and maintenance Recirculation box with activated charcoal filters An activated charcoal filter becomes less effective with use. With normal use, the activated charcoal filters have to be changed every 3 years or whenever the saturation indicator illuminates. The recirculation box contains 6 activ- ated charcoal filters.

  • Page 22: Trouble-Shooting

    Trouble-shooting What to do if… … the appliance is not working Possible cause Solution ▪ Fuse or automatic circuit ▸ Replace the fuse. breaker for electrical in- ▸ Reset the automatic circuit breaker. stallations in the home is defective. ▪ An interruption in the ▸...

  • Page 23: Accessories And Spare Parts

    Accessories and spare parts Please give model number of the appliance and exact designation of the ac- cessory or spare part when ordering parts. Metal grease filter Recirculation box (recircula- tion mode only) Activated charcoal filter for re- circulation box...

  • Page 24: Technical Data

    Product fiche In accordance with EU Regulation No. 65/2014 and No. 66/2014 Description Abbreviations Unit Value Brand V-ZUG LTD Model identifier 64005 Annual Energy Consumption kWh/a 40.4 hood Energy Efficiency Index 48.7...
  • Page 25 8 Technical data Airborne acoustical A-weighted Sound Power Emissions at max- imum speed Airborne acoustical A-weighted boost Sound Power Emissions at in- tensive or boost setting Measured power consumption of 0.49 off mode Measured power consumption of standby mode Time increase factor Measured air flow rate at the 286.0 best efficiency point...

  • Page 26: Index

    Index Accessories ........... 23 Recirculation mode ........11 After-running time.......... 16 Appliance configuration....... 14 Appliance description ........11 Safety .............. 10 Safety precautions Before using for the first time .... 7 Care and maintenance ........ 18 Children in the home.......  7 Children in the home........

  • Page 27: Service & Support

    Your repair order Call the free service number 0800 850 850 to contact your nearest V-ZUG service centre. You can arrange an onsite visit by us by phone if you wish. General queries, accessories and service agreement V-ZUG will be happy to help you with any general administrative or technical queries, to accept your orders for accessories and spare parts and to inform you about our progress- ive service agreements.
  • Page 28 Saturation indicator for metal grease filters Saturation indicator for activated charcoal filters (only for recirculation mode) 1030004-R03 V-ZUG Ltd, Industriestrasse 66, CH-6301 Zug Tel. +41 58 767 67 67, Fax +41 58 767 61 61 info@vzug.com, www.vzug.com Service Centre: Tel. 0800 850 850...
