V-ZUG Ltd
Range hood
DI-SM12
Operating instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DI-SM12 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for V-ZUG DI-SM12

Summary of Contents for V-ZUG DI-SM12

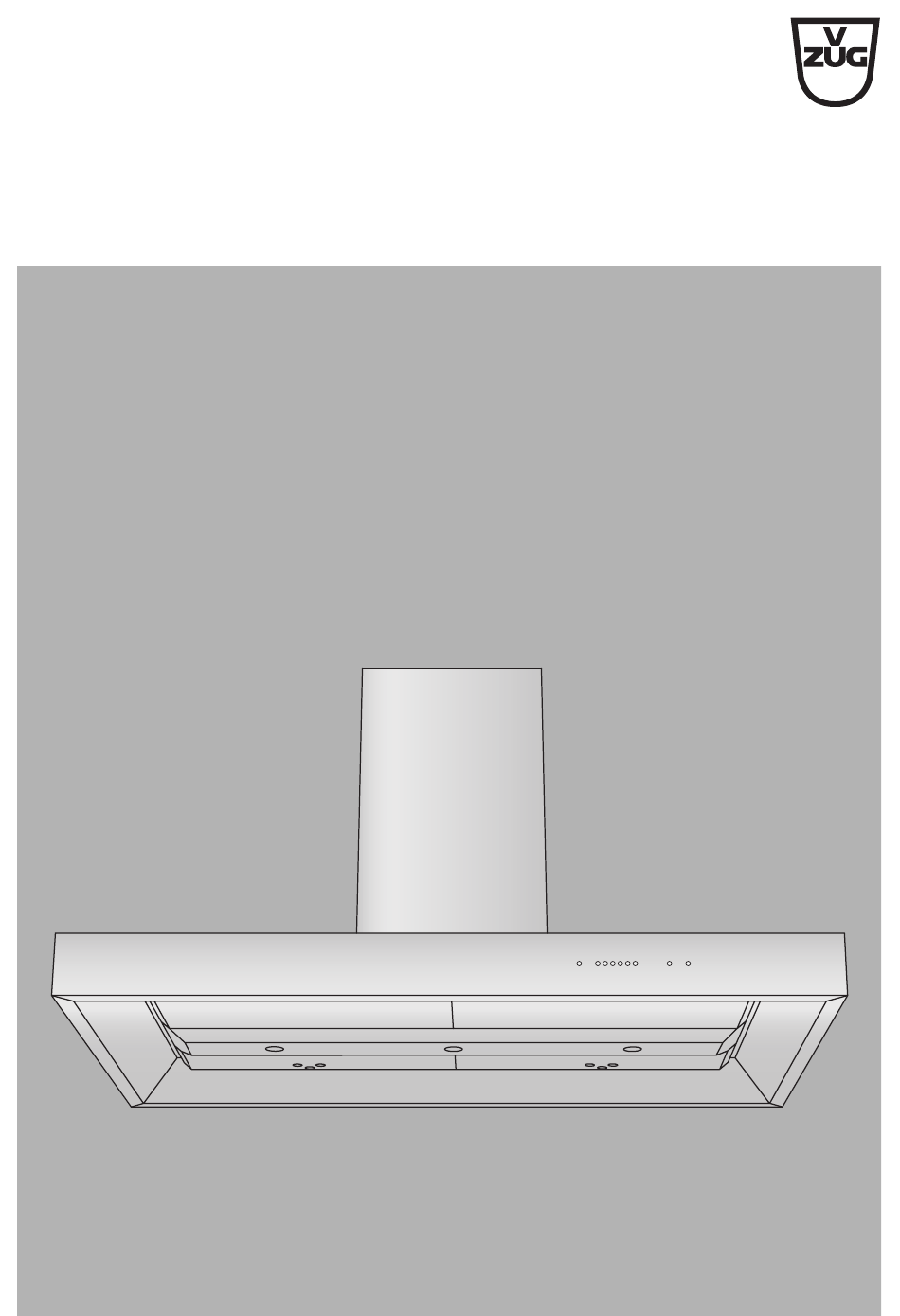

  • Page 1 V-ZUG Ltd Range hood DI-SM12 Operating instructions...
  • Page 2 The model number corresponds to the first 3 digits on the identification plate. These operating instructions apply to the model: Type Model no. DI-SM12 Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6301 Zug, 2009...

  • Page 3: Table Of Contents

    Contents Safety precautions Before using for the first time ......Correct use ........Children in the home .

  • Page 4: Safety Precautions

    Safety precautions The appliance corresponds to recognised technology standards and the relevant safety regulations. Proper use of the appliance is however essential to avoid damage and accidents. Please there- fore follow the precautions given in these operating instructions. In accordance with the requirements of IEC 60335-1: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless supervised or unless they have been given instruction...

  • Page 5: Correct Use

    … Safety precautions Correct use The appliance is designed for use in the home for extracting cooking fumes and smells from above the cooking surface. Any repairs, modifications or manipulations to the appliance, especially any electrically live parts, should only be carried out by the manufacturer, its Customer Services or similarly qualified persons.

  • Page 6: Note On Use

    … Safety precautions Note on use If the appliance is visibly damaged, do not use it. Contact our Customer Services. If the appliance is not operating properly, disconnect it from the electricity supply immediately. If the mains cable of the appliance is damaged, it must be replaced by Customer Services in order to avoid hazard.
  • Page 7 … Safety precautions If other appliances – fuelled by gas or other fuels – are being used at the same time, ensure that there is a sufficient supply of fresh air. This does not apply to air recirculation appliances. If other firing systems are being used at the same time (e.g. wood, gas, oil or coal-fired heating appliances), safe operation is only possible providing a room negative pressure of 4 Pa (0.04 mbar) is not exceeded at the location of the appliance.

  • Page 8: Appliance Description

    Appliance description The appliance is designed tor use in the home for extracting cooking fumes and smells from the cooking area. The appliance is based on a completely new functional concept whereby more cooking fumes can be removed with significantly less air being extracted. The grease particles in the extracted air are trapped very efficiently in the combi filters and metal grease filters.

  • Page 9: Construction

    … Appliance description Construction Operating elements Halogen spot Combi filter Metal grease filter...

  • Page 10: Operating And Display Elements

    … Appliance description Operating and display elements Buttons Operation Switch off/Reset saturation indicator Switch on/Power level Intensive Illumination Indicator lights Power level 1 Power level 2 / Saturation indicator for metal grease filters and combi filters Power level 3 Intensive level Depending on the model and features, the specification of the appli- ance may differ from the standard specification described herein.

  • Page 11: Use

    Operation Switching the appliance on/Selecting the power level Pressing the button switches the appliance on at power level 1. – The indicator light comes on. To select power levels 2 or 3, repeatedly press the button. – The indictor light shows which power level is currently being used. We recommend switching the appliance on at power level 1 some 5 minutes before cooking.

  • Page 12: Intensive Level

    … Use Intensive level The intensive level can be selected irrespective of whether the appliance is switched on or off. Press the button to switch the intensive level on for 5 minutes. – The indicator light lights up. If a different power level had been running beforehand, then the appliance will automatically revert to this after the 5 minutes has elapsed.

  • Page 13: Care And Maintenance

    Care and maintenance Cleaning the housing Take care that no water gets into the housing of the appliance! If water gets into the housing, it can cause damage. Do not use abrasive cleaners, scouring pads, steel wool etc. to clean the appliance as they can damage the surface.

  • Page 14: Cleaning The Grease Filters

    … Care and maintenance Cleaning the grease filters The grease filters should be cleaned at least once a month with normal use or whenever the indicator light flashes. If properly cared for, the grease filters should provide unlimited years of service. The grease filters can be cleaned in a dishwasher.
  • Page 15 … Care and maintenance Removing the metal grease filters and the combi filters Loosen the fastening screw 1 in one combi filter. With the other hand, fold the combi filter downwards. Remove the combi filter from its fitting. Remove the other combi filter in the same way.

  • Page 16: Cleaning/Replacing The Long-Life Activated Charcoal Filter

    … Care and maintenance Cleaning/replacing the long-life activated charcoal filter Activated charcoal filters are only used in the recirculation model. The activated charcoal filter can be cleaned and reactivated. With normal use of the appliance, the activated charcoal filter should be cleaned every month or whenever the indicator light flashes.

  • Page 17: Changing The Halogen Spot

    … Care and maintenance Changing the halogen spot Remove screw fuse or switch off circuit breaker. Halogen spots become hot during operation! Allow to cool down first. Using a small screw driver, from below carefully lever the halogen spot out of the socket and remove. Replace the defective halogen spot with a halogen spot of the same type (max.

  • Page 18: Trouble-Shooting

    Trouble-shooting What to do if … … the illumination is not working Possible cause Solution Fuse or circuit breaker for Replace the fuse. electrical installations in Reset the circuit breaker. the home is faulty. Interruption in the power Check the power supply. supply.

  • Page 19: Accessories And Spare Parts

    Accessories and spare parts Please give model number and exact description when ordering parts. Halogen spot (12 V / 20 W) Metal grease filter Left Combi filter Right The halogen spot is also available from specialized retailers.

  • Page 20: Technical Data

    Technical data Electrical connection See identification plate. Remove the grease filter. – The identification plate is located on the inside of the appliance.

  • Page 21: Disposal

    Disposal Packaging All packaging materials (cardboard, plastic film (PE) and polystyrene (EPS)) are marked and should, if possible, be collected for recycling and disposed of in an environmentally friendly way. Disconnection Disconnect the appliance from the mains. With a fixed appliance, this is to be carried out by a qualified electrician! Safety Disable the appliance to prevent accidents caused by improper use,...

  • Page 22: Index

    Index Accessories ........19 Operating elements ....9, 10 Ordering ........23 Orders ........... 23 Appliance description ....8 Packaging........21 Care..........13 Children in the home ....5 Queries.......... 23 Cleaning ........13 Quick instructions ....... 24 Grease filters......14 Combi filter........

  • Page 23: Repair Service

    Remove metal grease filter. – The identification plate is located on the inside of the appliance. If the appliance is not working properly, contact your nearest V-ZUG Ltd service centre using freephone 0800 850 850 and stand in close proximity to the appliance.

  • Page 24: Quick Instructions

    Please first read the safety precautions in the operating instructions! Operation Switch off/Reset saturation indicator Switch on/Power level Intensive Illumination V-ZUG Ltd Industriestrasse 66, 6301 Zug Tel. +41 (0)41 767 67 67, Fax +41 (0)41 767 61 61 vzug@vzug.ch, www.vzug.ch Service Centre: Tel. 0800 850 850 J017.013-4...
