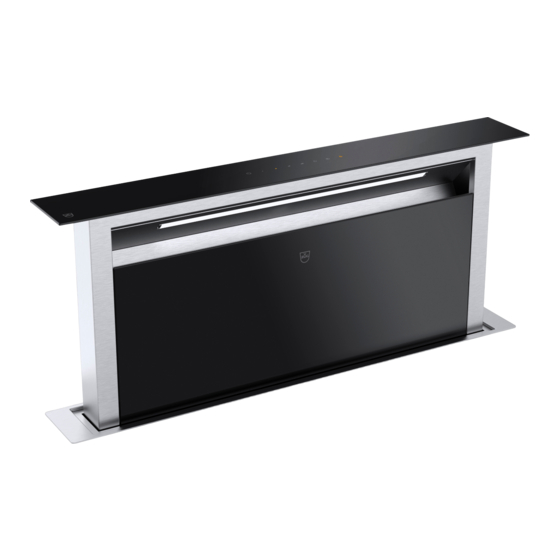

Operating instructions

DSTS9
Range hood

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSTS9 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for V-ZUG DSTS9

Summary of Contents for V-ZUG DSTS9

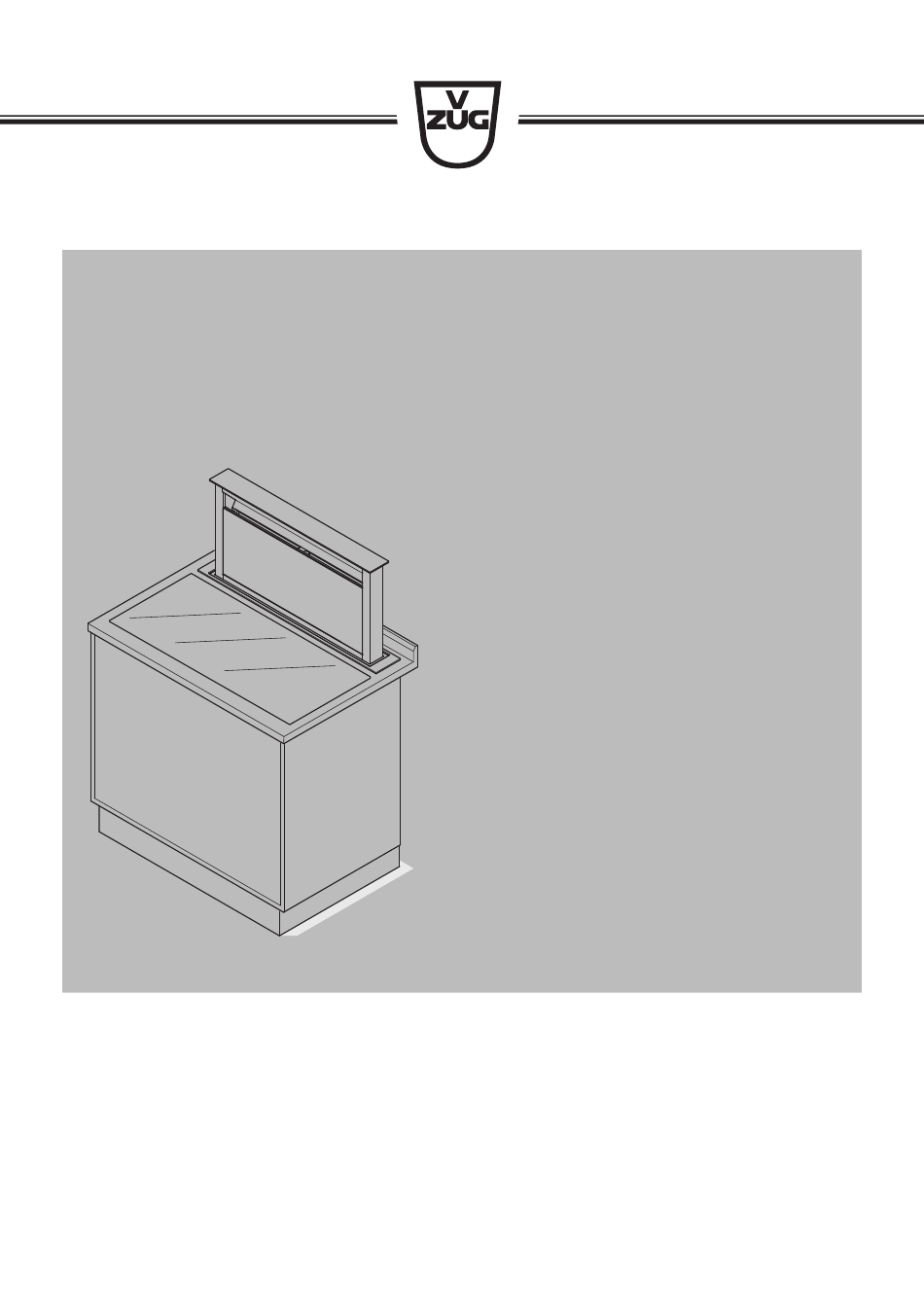

  • Page 1: Operating Instructions

    Operating instructions DSTS9 Range hood...
  • Page 2 The product family (model number) corresponds to the first alphanumerics on the identi- fication plate. These operating instructions apply to: Type Product family Size system DSTS9 64004 Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6302 Zug, 2018...

  • Page 3: Table Of Contents

    Contents Safety precautions  4 Disposal  19 Symbols used............ 4 Index  20 General safety precautions........ 4 Notes  22 Appliance-specific safety precautions .... 4 Service & Support  23 Instructions for use.......... 5 Appliance description  7 Appliance description ...........  7 Extraction model ............  7 Recirculation model with long-life activated charcoal filter ............

  • Page 4: Safety Precautions

    Safety precautions Symbols used Cleaning and user mainten- ance shall not be undertaken Denotes important safety precau- tions. by children without supervi- Failure to observe said precautions sion. can result in injury or in damage to ▪ If an appliance is not the appliance or fittings! equipped with a mains cable Information and precautions that...

  • Page 5: Instructions For Use

    1 Safety precautions ▪ The extracted air must not be motels and other accommod- fed into a chimney which is ation establishments; in bed used for exhausting fumes and breakfast establishments. from appliances burning gas ▪ Do not operate the appliance or other fuels.
  • Page 6 1 Safety precautions ▪ Use original spare parts only. Caution: Burns hazard! ▪ Retain these operating instructions for ▪ Do not leave the appliance unattended future reference. when deep-frying on the cooking sur- Note on use face. The cooking oil in the deep-frying ▪...

  • Page 7: Appliance Description

    Appliance description Appliance description The appliance is designed for use in the home for extracting cooking fumes and smells from above the cooking surface. The model can be used to extract or recirculate air. Extraction model A fan draws cooking fumes and smells from above the cooking area. The metal grease filters clean the extracted air, which is passed through a connecting pipe fitted with an in- tegrated non-return valve and through the air duct to the outside.

  • Page 8: Recirculation Model With Recirculation Box

    2 Appliance description Recirculation model with recirculation box After being filtered through the metal grease filters, the cooking fumes and smells above the cooking area are passed through a recirculation box with integrated activated char- coal filters, the odours are largely removed from the air and it is then circulated back into the room.

  • Page 9: Operating The Appliance

    3 Operating the appliance Operating the appliance Operation Extending and switching on the appliance ▸ Hold the button depressed for 3 seconds. – The hood body is extended and the appliance switches on at power level . ▸ Touching the / / button switches the appliance on at power level 1, 2, 3 or intensive.

  • Page 10: After-Running Time

    3 Operating the appliance ▪ If the appliance had not been switched on beforehand, then the appliance will auto- matically switch off after the six minutes has elapsed. ▸ Touch the button. – The button stops flashing. – The intensive level switches off before time. After-running time In the after-running time, the motor, fan blades and illumination run for another 15 minutes and then switch off automatically.

  • Page 11: Saturation Indicators

    4 Care and maintenance Saturation indicators Saturation indicator for metal grease filters and long-life activated charcoal filters buttons flashes after 100 operating hours. The saturation level has been reached and the metal grease filters and long-life ac- tivated charcoal filters must be cleaned. Activating/deactivating the saturation indicator (recirculation models) ▸...

  • Page 12: Metal Grease Filters

    4 Care and maintenance Metal grease filters The metal grease filters can be cleaned. Removing the metal grease filters ▸ Hold the panel 1 at the top 2 and pull forwards. ▸ Pull the handle 3 down and take out the metal grease filters 4.
  • Page 13 4 Care and maintenance Installing the metal grease filters ▸ Insert each of the metal grease filters 4 into the holder 5. ▸ Pull handle 3 down and allow the metal grease filter 4 to engage. ▸ Hold the panel 1 at the top 2 and push ▸...

  • Page 14: Long-Life Activated Charcoal Filter

    4 Care and maintenance Long-life activated charcoal filter The long-life activated charcoal filters should be reactivated every other month or whenever the cooking fumes and smells are no longer being filtered effectively. After about three years the long-life activated charcoal filter must be replaced because its ability to absorb odours will be reduced.

  • Page 15: Recirculation Box With Activated Charcoal Filters (Option)

    4 Care and maintenance The long-life activated charcoal filter can be cleaned and reactivated. With normal use the long-life activated charcoal filter should be cleaned every other month or whenever indicator light flashes. It can be cleaned in a dishwasher at 65°C (select an «in- tensive»...

  • Page 16: Trouble-Shooting

    5 Trouble-shooting Trouble-shooting What to do if … … the illumination is not working Possible cause Solution ▪ Fuse or automatic circuit breaker ▸ Replace the fuse. for electrical installations in the ▸ Reset the automatic circuit breaker. home is defective. ▪...

  • Page 17: Accessories And Spare Parts

    – The identification plate is located on the inside of the appliance. Product fiche In accordance with EU Regulation No. 65/2014 and No. 66/2014. Description Abbreviations Unit Value Brand V-ZUG Ltd Model identifier 64004 Annual Energy Consumption kWh/a 62.1 hood Energy Efficiency Index 60.1...
  • Page 18 7 Technical data Grease Filtering GFEC Efficiency Class Air flow at minimum speed Air flow at maximum speed (intensive or boost excluded) Air flow at intensive boost or boost setting Airborne acoustical A-weighted Sound Power Emissions at minimum speed Airborne acoustical A-weighted Sound Power Emissions at maximum speed Airborne acoustical A-weighted...

  • Page 19: Disposal

    8 Disposal Disposal Packaging Never allow children to play with packaging material due to the danger of injury or suffocation. Store the packaging material in a safe location or dispose of it in an environmentally-friendly way. Safety Render the appliance unusable to prevent accidents caused by improper use (e.g. through children playing): ▸...
  • Page 20 Index Metal grease filters Cleaning ............ 12 Accessories and spare parts ......17 Installing ............ 13 After-running time..........10 Removing ............ 12 Appliance Model number ............. 2 Operating ............ 9 Appliance description ........7 Appliance disposal .......... 19 Notes ..............22 Care and maintenance ........
  • Page 21 9 Index The illumination is not working .... 16 The saturation indicator illuminates ................  16 Wipe protection Activating............ 10 Deactivating .......... 10...
  • Page 22 Notes...
  • Page 23 V‑ZUG service centre. Technical questions, accessories, warranty extensions V-ZUG is happy to help you with any general administrative or technical queries, to take your orders for accessories and spare parts and to inform you about our progressive service agreements.

  • Page 24: Quick Instructions

    Depress the button for two seconds to switch the illumination on at medium intensity. Flashing Clean the metal grease filters, reactivate or replace the long-life ac- tivated charcoal filters Flashing Replacing the activated charcoal filter 1017005-R03 V-ZUG Ltd, Industriestrasse 66, CH-6302 Zug info@vzug.com, www.vzug.com...
