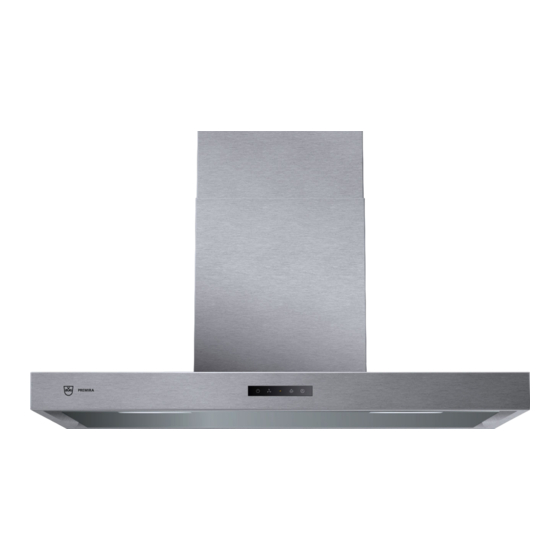

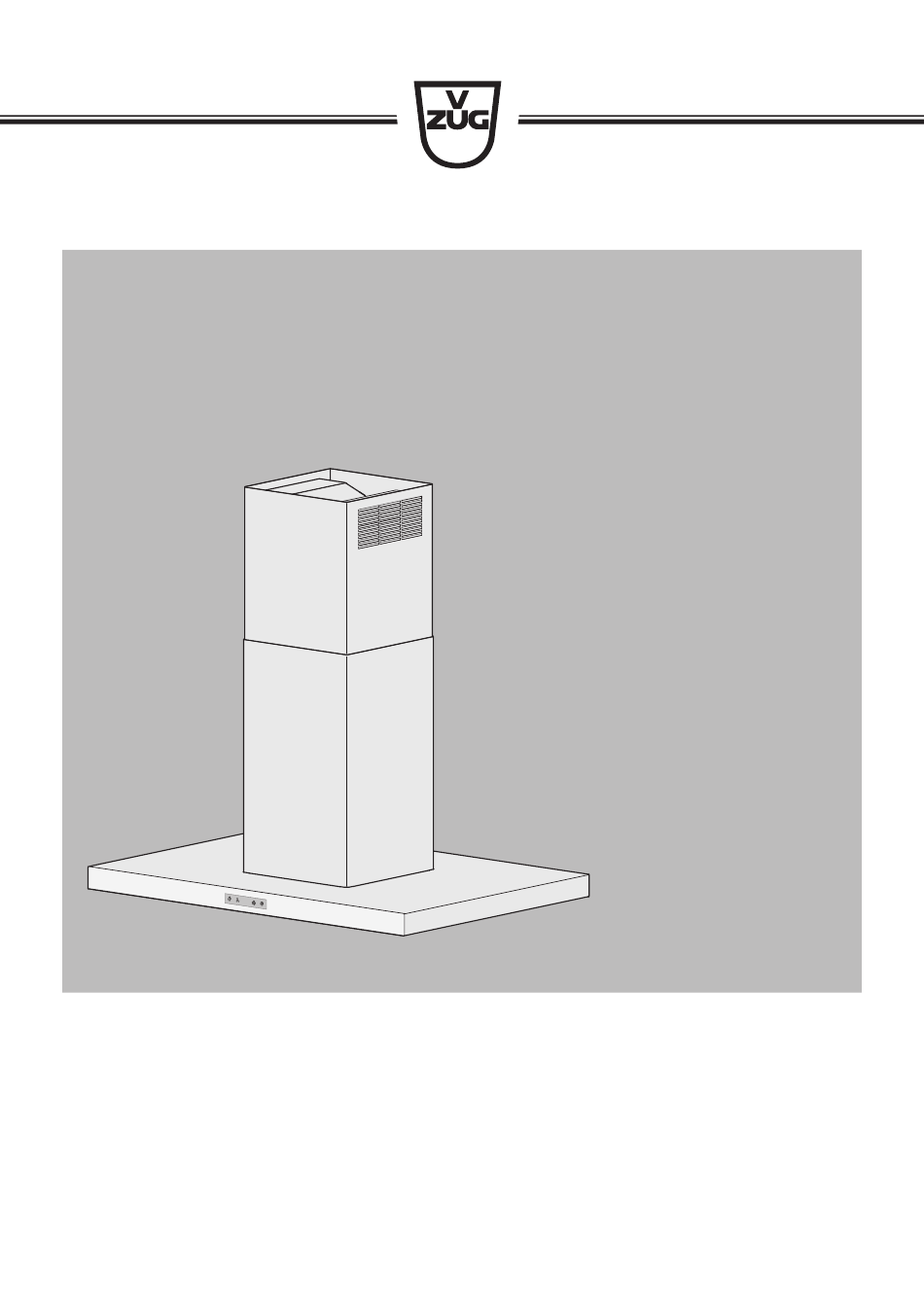

- Page 1 Operating instructions DWPQ9 | DWPQ12 | DIPQ10 | DIPQ12 Range hood...
- Page 2 The product family (model number) corresponds to the first alphanumerics on the identi- fication plate. These operating instructions apply to: Type Product family Size system DWPQ9 62022 DWPQ12 62023 DIPQ10 63015 DIPQ12 63016 Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6302 Zug, 2018...
-
Page 3: Table Of Contents
Contents Safety precautions 4 Symbols used............ 4 General safety precautions........ 4 Appliance-specific safety precautions .... 5 Appliance installation .......... 5 Instructions for use.......... 6 Appliance description 8 Introduction ............. 8 Extraction mode ............. 8 Recirculation mode with activated charcoal filter 8 Features.............. -
Page 4: Safety Precautions
Safety precautions Symbols used capabilities, or lack of experi- ence and/or knowledge, Denotes important safety precau- tions. provided they are supervised Failure to observe said precautions or have been instructed on can result in injury or in damage to the safe use of the appliance the appliance or fittings! and have understood the haz- Information and precautions that... -
Page 5: Appliance-Specific Safety Precautions
1 Safety precautions Appliance-specific safety ▪ When replacing a light bulb, precautions the maximum wattage rating of replaceable light bulbs ▪ The room must be adequately must be visible. ventilated when operating the ▪ This appliance is intended for range hood at the same time use in the home and similar as other appliances that burn settings such as: in staff kit-... -
Page 6: Instructions For Use
1 Safety precautions ▪ A plug-in appliance may only be con- ▪ Any repairs, modifications or manipula- nected to a socket outlet with earthing tions to the appliance, especially any contact, installed according to specifica- electrically live parts, may only be car- tions. - Page 7 1 Safety precautions fumes! An adequate flow of fresh air must be guaranteed e.g. via non-clos- able openings in doors or windows and in combination with an air-intake/ex- haust-air wall box or by other technical means. ▪ When cleaning the appliance make sure no water gets inside it.
-
Page 8: Appliance Description
Appliance description Introduction The appliance is designed for use in the home for extracting cooking odours from above a cooking area and can be used in the extraction or recirculation mode. Extraction mode A fan extracts cooking fumes and smells from above the cooking surface. The metal grease filters clean the extracted air, which is then passed through a connecting pipe fit- ted with an integrated non-return valve and through the air duct to the outside. -
Page 9: Operating And Display Elements
2 Appliance description Operating and display elements Buttons Switch appliance on/off Select power level 1–3; activate intensive level Switch illumination on/off; set colour temperature Activate after-running time Display symbols Wipe protection After-running time Power level 1 Power level 2 Power level 3 Intensive level (flashing) Saturation indicator for grease filter Saturation indicator for activated charcoal filter (recirculation air only) -
Page 10: Operating The Appliance
3 Operating the appliance Operating the appliance Using for the first time Appliance configuration The model can be used to extract or recirculate air. The appliance is set up by default for use in the recirculation mode. The cleaning interval for the activated charcoal filter is 180 operating hours. -
Page 11: Switching The Appliance On/Off
3 Operating the appliance Switching the appliance on/off ▸ Touch the button. – The appliance switches on at power level 1 and the illumination is activated. – The corresponding symbol illuminates in the display. ▸ With the appliance running, repeatedly touch the button. -
Page 12: After-Running Time
3 Operating the appliance After-running time The purpose of the after-running time function is to remove any lingering smells. Depend- ing on the default setting, the appliance continues to run at the power level set for 5–20 minutes and then switches off automatically. ▸... -
Page 13: Saturation Indicators
3 Operating the appliance Saturation indicators Metal grease filters symbol in the display flashes after 20 operating hours. The saturation level has been reached and the metal grease filters must be cleaned. Activated charcoal filter (recirculation mode only) symbol in the display flashes after 120, 180 or 240 operating hours, depending on the default cleaning interval setting. -
Page 14: Care And Maintenance
4 Care and maintenance Care and maintenance Cleaning the housing Make sure no water gets inside the appliance. If water gets into the appliance, it can cause damage. Do not use abrasive cleaners, scouring pads, steel wool, etc. for cleaning, as they can damage the surface. - Page 15 4 Care and maintenance Removing: Product family 63015/63016 ▸ Using both hands, hold the metal grease filters at the front and back and gently re- lease from the magnets. Click the metal grease filters out of the fixture and re- move.
-
Page 16: Long-Life-Plus Activated Charcoal Filter
4 Care and maintenance Long-life-Plus activated charcoal filter The long-life-Plus activated charcoal filter should be cleaned and reactivated every 3 to 6 months and whenever the saturation indicator alarm is triggered. Depending on intensity of use, do not exceed 5–8 regeneration cycles. If properly cared for, the service life of the long-life-Plus activated charcoal filter is up to 3 years. -
Page 17: Reset Saturation Indicator Alarm
5 Trouble-shooting Reset saturation indicator alarm Reset the saturation indicator alarm for both the metal grease filter and the activated charcoal filter after cleaning/replacing. ▸ With the appliance switched off, hold the button depressed for 5 seconds. – If reset correctly, the symbols are no longer displayed. -
Page 18: Accessories And Spare Parts
6 Accessories and spare parts Accessories and spare parts Please give product family of the appliance and exact designation of the accessory or spare part when ordering parts. Metal grease filter (example is shown; actual filter depends on model) Long-life-Plus activated charcoal filter Remote control Technical data... -
Page 19: Product Fiche
7 Technical data Product fiche In accordance with EU Regulation No. 65/2014 and No. 66/2014 Description Abbreviations Unit Value Brand V-ZUG LTD Model identifier 62022 / 62023 / 63015-16 Annual Energy Consumption kWh/a 28.2 / 29.7 / 31.1 hood Energy Efficiency Index 38.9 / 40.3 / 41.7... -
Page 20: Disposal
8 Disposal Measured value of the electric power 100.0 / 100.0 / 100.0 input at the best efficiency point Nominal power of the lighting system 4 / 6 / 8 Average illumination of the lighting 113 /196 / 225 middle system on the cooking surface Sound power level - / - / -... -
Page 21: Index
Index Accessories ............18 Safety precautions After-running time..........12 Appliance installation ........ 5 Appliance configuration........10 Appliance-specific .......... 5 Appliance description ........8 Before using for the first time....... 6 Appliance disposal .......... 20 Correct use ............ 6 Appliance installation ......... 5 General ............. 4 Instructions for use......... 6 Note on use ............. 6 Care and maintenance ........ - Page 22 Notes...
-
Page 23: Service & Support
Your repair order Call the free service number 0800 850 850 to contact your nearest V-ZUG service centre. You can arrange an on-site visit by us by phone if you wish. General queries, accessories and service agreement V-ZUG will be happy to help you with any general administrative or technical queries, to accept your orders for accessories and spare parts and to inform you about our pro- gressive service agreements. - Page 24 Saturation indicator for grease filter Saturation indicator for activated charcoal filter (recirculation air only) 1045249-R02 V-ZUG Ltd, Industriestrasse 66, CH-6302 Zug Tel. +41 58 767 67 67, Fax +41 58 767 61 61 info@vzug.com, www.vzug.com Service Centre: Tel. 0800 850 850...
