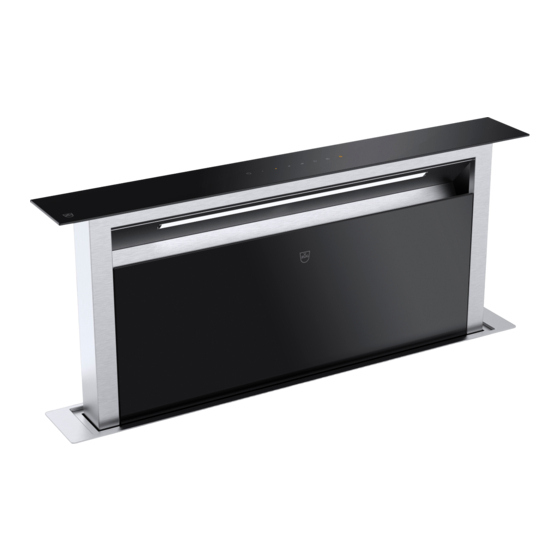

Operating instructions
DSTS9
Range hood

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSTS9 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for V-ZUG DSTS9

Summary of Contents for V-ZUG DSTS9

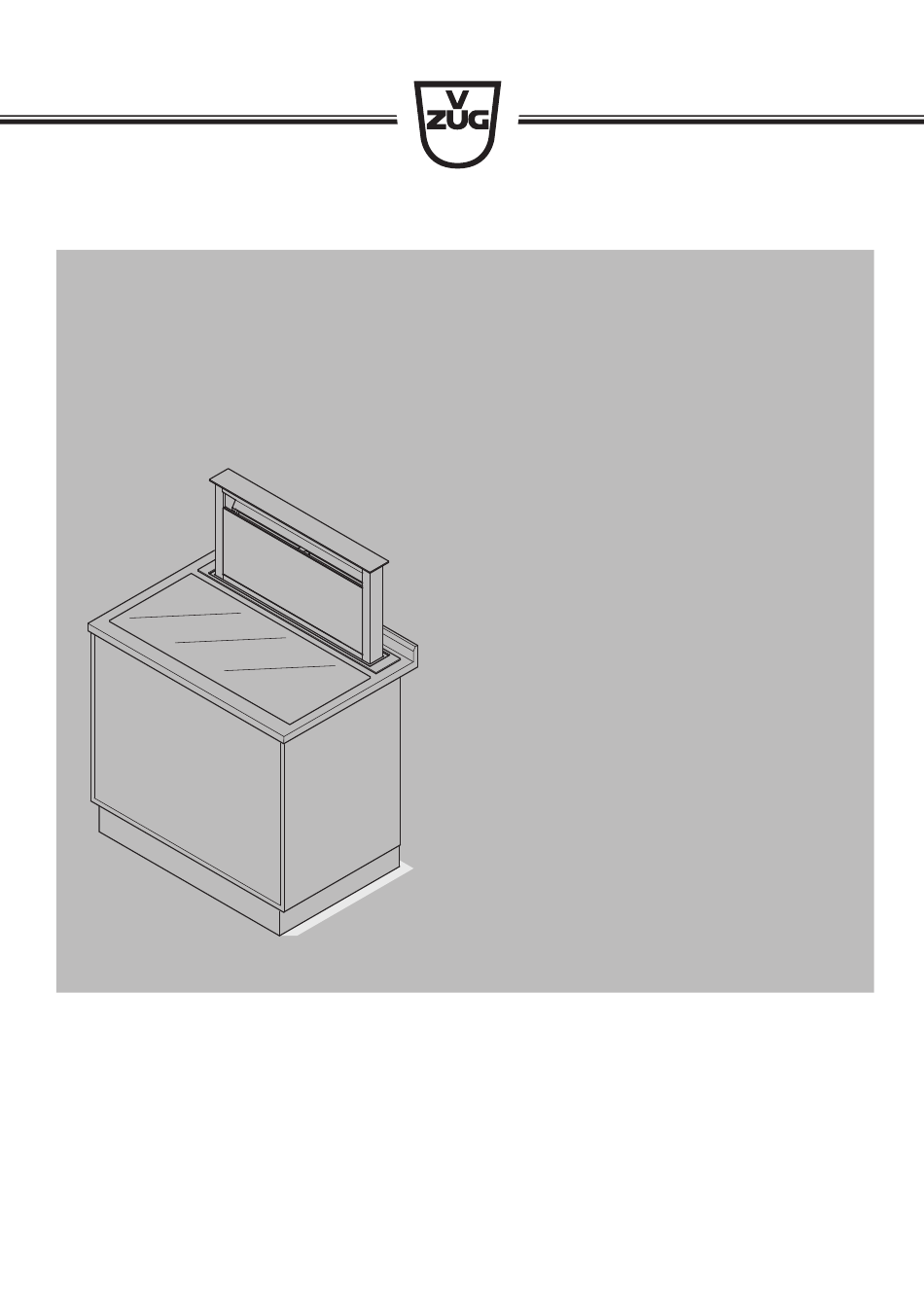

  • Page 1 Operating instructions DSTS9 Range hood...
  • Page 2 The product family (model number) corresponds to the first alphanumerics on the identification plate. These operating instructions apply to: Type Product family Size system DSTS9 64004 Variations depending on the model are noted in the text. © V-ZUG AG, CH-6301 Zug, 2016...

  • Page 3: Table Of Contents

    Contents  2 1 Safety precautions  5 Symbols used ..................... 5 General safety precautions .............. 6 Before using for the first time .............. 7 Correct use.................... 7 Children in the home ................. 7 Note on use.................... 8 2 Disposal  10 3 Appliance description  11 Appliance description................ 11 Extraction model..................
  • Page 4 What to do if … .................. 26 7 Accessories and spare parts  28 8 Technical data  29 Product fiche ....................  29 9 Index  31 10 Notes  33 11 Service & Support  35...

  • Page 5: Safety Precautions

    Safety precautions Symbols used Denotes important safety precautions. Failure to observe said precautions can result in injury or in dam- age to the appliance or fittings! Information and precautions that should be observed. Information on disposal Information about the operating instructions ▸...

  • Page 6: General Safety Precautions

    1 Safety precautions General safety precautions ▪ Read the operating instructions before using the appliance for the first time! ▪ This appliance can be used by children aged 8 and above and by persons with reduced physical, sensory or mental cap- abilities, or lack of experience and/or knowledge, provided they are supervised or have been instructed on the safe use of the appliance and have understood the hazards involved.

  • Page 7: Before Using For The First Time

    1 Safety precautions Before using for the first time ▪ The appliance must be installed and connected to the electricity supply in accordance with the separate installation instructions. Have a qualified fitter/ electrician carry out the necessary work. ▪ Dispose of the packaging material in accordance with local regulations. Correct use ▪...

  • Page 8: Note On Use

    1 Safety precautions Note on use ▪ If the appliance is visibly damaged, do not use it. Contact our Customer Services. ▪ If the appliance is not functioning properly, disconnect it from the power supply immediately. ▪ If the mains cable of the appliance is damaged, it must be replaced by Cus- tomer Services in order to avoid hazard.
  • Page 9 1 Safety precautions ▪ When carrying out maintenance work on the appliance, including replacing the light bulb, cut off the electricity supply to the appliance: remove the screw fuse from the holder or switch the circuit breaker off, or disconnect from the mains supply.

  • Page 10: Disposal

    Disposal Packaging ▪ All packaging materials (cardboard, plastic film (PE) and polystyrene (EPS)) are marked and should, if possible, be collected for recycling and disposed of in an environmentally friendly way. Disconnection ▪ Disconnect the appliance from the mains. With a fixed appliance, this is to be carried out by a qualified electrician! Safety ▪...

  • Page 11: Appliance Description

    Appliance description Appliance description The appliance is designed for use in the home for extracting cooking fumes and smells from above the cooking surface. The model can be used to extract or recirculate air. Extraction model A fan draws cooking fumes and smells from above the cooking area. The metal grease filters clean the extracted air, which is passed through a connect- ing pipe fitted with an integrated non-return valve and through the air duct to the outside.

  • Page 12: Operating And Display Elements

    3 Appliance description Operating and display elements Switch on/off, extend/retract hood body Power level 1 Power level 2, activate/deactivate wipe protection Power level 3 Intensive level CleanAir function (air extraction every hour for 10 minutes) After-running time (delays switching-off of appliance by 15 minutes) Touch button, switch illumination on at maximum intensity and off.

  • Page 13: Features

    3 Appliance description Features ▪ 1 extractor fan with 4 power levels: ▪ 1 = low, 2 = medium, 3 = high, and intensive level. ▪ Power levels 1–3 are suitable for continuous operation. ▪ The intensive level is used for short bursts of intensive extraction of cooking fumes and smells, e.g.

  • Page 14: Construction

    3 Appliance description Construction Options 1. Operating and display elements 8. Long-life activated charcoal filter (for recirculation air) 2. Extendable/retractable hood Activated charcoal filter for recircula- body tion box 3. Illumination 10. Recirculation box (optional) 4. Panel 5. Metal grease filter 6.

  • Page 15: Operating The Appliance

    Operating the appliance Operation Extending and switching on the appliance ▸ Hold the button depressed for three seconds. – The hood body is extended and the appliance switches on at power level . ▸ Touching the / / button switches the appliance on at power level 1, 2, 3 or intensive.

  • Page 16: Changing The Light Intensity

    4 Operating the appliance Changing the light intensity ▸ When the illumination is switched on, hold the button depressed for two seconds. – The light intensity lowers. ▸ When the light intensity is low, press the button. – The light intensity increases. ▪...

  • Page 17: After-Running Time

    4 Operating the appliance After-running time In the after-running time, the motor, fan blades and illumination run for another 15 minutes and then switch off automatically. ▸ Touch the / or button and select the desired power level. ▸ Touch the button.

  • Page 18: Cleanair

    4 Operating the appliance CleanAir Switching the CleanAir function on/off ▸ Touch the button. – The level illuminates. – The button flashes. – The appliance switches on every hour for 10 minutes. ▸ Touch the button. – The button and the level no longer illuminate. –...

  • Page 19: Saturation Indicators

    4 Operating the appliance Saturation indicators Saturation indicator for metal grease filters and long-life activated charcoal filters buttons flashes after 100 operating hours. The saturation level has been reached and the metal grease filters and long-life activated charcoal filters must be cleaned. Activating/deactivating the saturation indicator (recirculation models) ▸...

  • Page 20: Care And Maintenance

    Care and maintenance Cleaning the housing Take care that no water gets into the housing of the appliance! If water gets into the housing, it can cause damage. Do not use abrasive cleaners, scouring pads, steel wool, etc. for cleaning, as the surface could otherwise be damaged. Remove the screw fuse or switch off the circuit breaker.

  • Page 21: Metal Grease Filters

    5 Care and maintenance Metal grease filters The metal grease filters can be cleaned. Removing the metal grease filters ▸ Hold the panel 1 at the top 2 and pull forwards. ▸ Pull the handle 3 down and take out the metal grease filters 4.
  • Page 22 5 Care and maintenance Installing the metal grease filters ▸ Insert each of the metal grease fil- ters 4 into the holder 5. ▸ Pull handle 3 down and allow the metal grease filter 4 to engage. ▸ Hold the panel 1 at the top 2 and push to.

  • Page 23: Long-Life Activated Charcoal Filter

    5 Care and maintenance Installing the panel ▸ Hold the panel 1 at the top 2, hook in at the bottom and insert into posi- tion. Long-life activated charcoal filter The long-life activated charcoal filters should be reactivated every other month or whenever the cooking fumes and smells are no longer being filtered effect- ively.

  • Page 24: Long-Life Activated Charcoal Filter Display

    5 Care and maintenance Long-life activated charcoal filter display Activating the long-life activated charcoal filter display This function must only be activated with the recirculation model. ▸ With the appliance switched off, hold the button depressed for five seconds. – All LEDs flash twice. –...

  • Page 25: Recirculation Box With Activated Charcoal Filters (Option)

    5 Care and maintenance Recirculation box with activated charcoal filters (Option) Recirculation mode with recirculation box Activated charcoal filters are only used in the recirculation model. An activated charcoal filter becomes less effective with use. With normal use, the activated charcoal filters have to be changed every 3 years. They cannot be washed or regenerated.

  • Page 26: Trouble-Shooting

    Trouble-shooting What to do if … … the illumination is not working Possible cause Solution ▪ Fuse or automatic circuit ▸ Replace the fuse. breaker for electrical in- ▸ Reset the automatic circuit breaker. stallations in the home is defective. ▪...
  • Page 27 6 Trouble-shooting … Saturation indicator illuminates Possible cause Solution ▪ The metal grease filters ▸ Clean the metal grease filters. are dirty. ▪ Only for recirculation ▸ Reactivate the long-life activated charcoal model with long-life activ- filters or replace them after three years. ated charcoal filter or: The long-life activated charcoal filters are saturated.

  • Page 28: Accessories And Spare

    Accessories and spare parts Please give model number of the appliance and exact designation of the ac- cessory or spare part when ordering parts. Metal grease filter Long-life activated charcoal filter Activated charcoal filter for the recircu- lation box...
  • Page 29 ▸ Remove the metal grease filters. – The identification plate is located on the inside of the appliance. Product fiche Description Abbrevi- Unit Value ations Brand V-ZUG Ltd Model identifier 64004 Annual energy consump- kWh/a 62.1 hood tion Energy Efficiency Index 60.1...
  • Page 30 8 Technical data Airborne acoustical A- weighted Sound Power Emissions at minimum speed Airborne acoustical A- weighted Sound Power Emissions at maximum speed Airborne acoustical A- boost weighted Sound Power Emissions at intensive or boost setting Measured power con- 0.85 sumption of off mode Measured power con- sumption of standby...
  • Page 31 Index Long-life activated charcoal filter Cleaning .......... 24 Accessories and spare parts ....28 Installing .......... 23 After-running time........17 Removing.......... 23 Appliance Replacing.......... 24 Extending .......... 15 Long-life activated charcoal filter display Operating .......... 15 Activating .......... 24 Switching on/off.........  15 Deactivating........
  • Page 32 Before using for the first time .... 7 Children in the home ...... 7 Correct use.......... 7 General........... 6 Note on use........... 8 Saturation indicator Activating .......... 19 Deactivating........ 19 Metal grease filter...... 19 Service & Support........35 Symbols ............5 Technical data .......... 29 Technical enquiries........
  • Page 33 Notes...
  • Page 35 You can find the telephone number for your nearest V-ZUG service centre at www.vzug.com→Service→Service hotline. Technical enquiries, accessories, extended warranty V-ZUG is happy to help with your general administrative and technical enquiries, orders for accessories and spare parts, or information relating to advanced service agreements.
  • Page 36 Depress the button for two seconds to switch the illumination on at medium intensity. Flashing Clean the metal grease filters, reactivate or replace the long- life activated charcoal filters Flashing Replacing the activated charcoal filter 1017006-R02 V-ZUG Ltd, Industriestrasse 66, CH-6301 Zug info@vzug.com, www.vzug.com...
