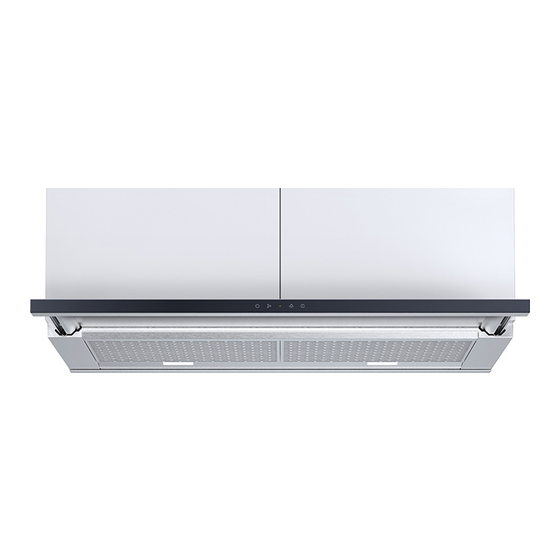

V-ZUG Ltd
Range hood
DFPQSL
Operating instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DFPQSL Series and is the answer not in the manual?

Questions and answers

Related Manuals for V-ZUG DFPQSL Series

Summary of Contents for V-ZUG DFPQSL Series

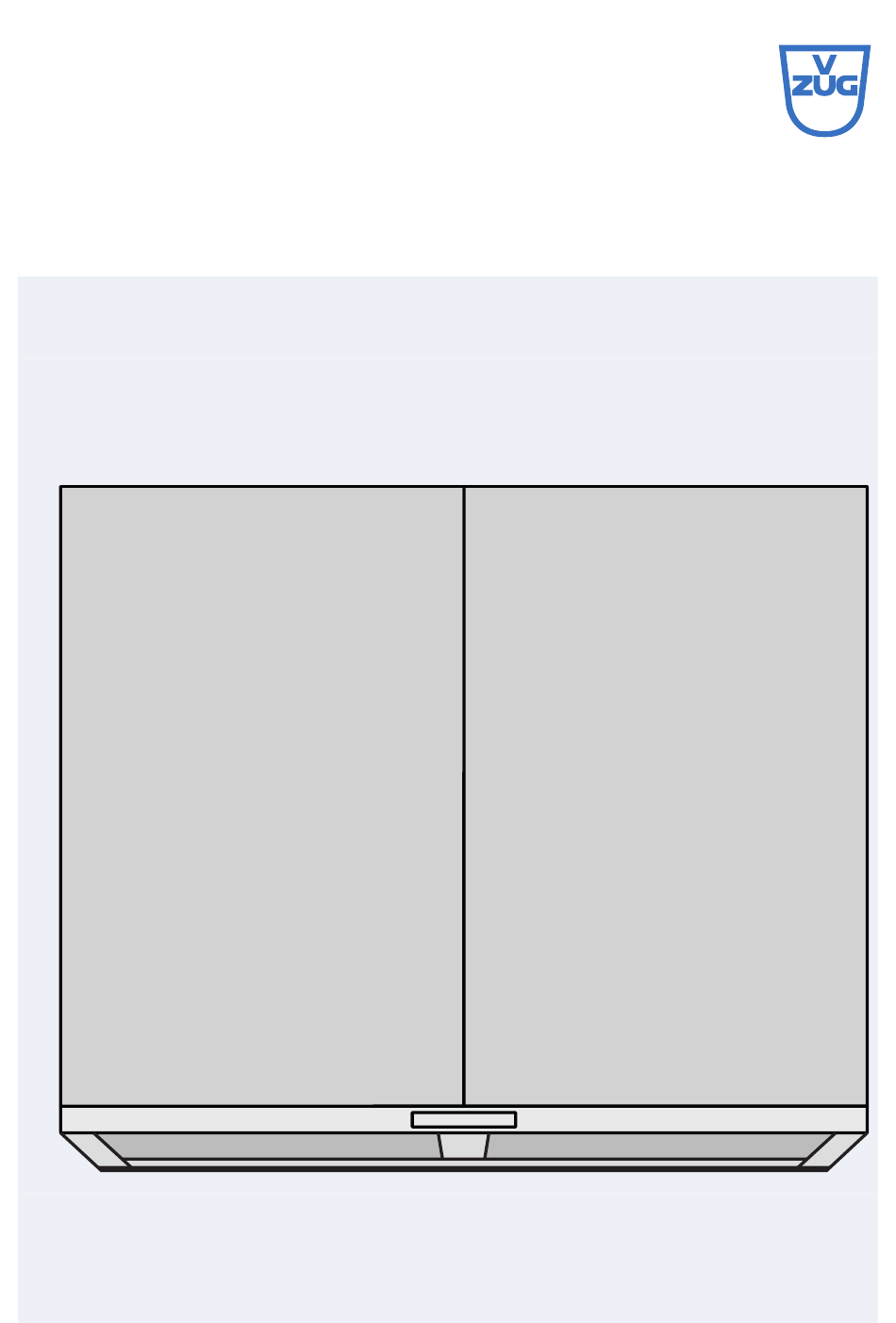

  • Page 1 V-ZUG Ltd Range hood DFPQSL Operating instructions...
  • Page 2 DFPQSL9 61007 H4.2608 (extraction standard) H4.2606 (recirculation DFPQSL6 61008 standard, built-in hood) DFPQSL5 61009 H4.2607 (recirculation short, built-in hood) H4.2774 (extraction with options connection) Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6301 Zug, 2014...

  • Page 3: Table Of Contents

    Contents Safety precautions Symbols used ..................General safety precautions ..............Before using for the first time .............. Correct use ....................Children in the home ................Note on use ..................... Disposal Your appliance Appliance description ................10 Extraction model ..................10 Recirculation model ................
  • Page 4 Trouble-shooting Accessories and spare parts Technical data Notes 10 Index 11 Repair service...

  • Page 5: Safety Precautions

    Safety precautions Symbols used Denotes important safety precautions. Failure to observe said precautions can result in injury or in damage to the appliance or fittings! Information and precautions that should be observed. Information on disposal Information about the operating instructions Indicates step-by-step instructions.

  • Page 6: General Safety Precautions

    1 Safety precautions General safety precautions The appliance corresponds to recognized technology standards and the relevant safety regulations. However, proper use of the appli- ance is essential to avoid damage and accidents. Please therefore follow the precautions given in these operating instructions. In accordance with the requirements of IEC 60335-1: •...

  • Page 7: Children In The Home

    1 Safety precautions Children in the home • Packaging material, e.g. plastic film and polystyrene, can be dangerous for children. Danger of suffocation! Keep packaging material away from chil- dren. • The appliance is designed for use by adults who are familiar with these operating instructions.
  • Page 8 1 Safety precautions • Avoid a cross-current of air, which could blow the cooking vapours across the cooking area. • If other appliances – fuelled by gas or other fuels – are being used at the same time, ensure that there is a sufficient supply of fresh air. This does not apply to air recirculation appliances.

  • Page 9: Disposal

    Disposal Packaging • All packaging materials (cardboard, plastic film (PE) and polystyrene (EPS)) are marked and should, if possible, be collected for recycling and disposed of in an environmentally friendly way. Disconnection • Disconnect the appliance from the mains. With a fixed appliance, this is to be carried out by a qualified electrician! Safety •...

  • Page 10: Your Appliance

    Your appliance Appliance description The appliance is designed for use in the home for extracting cooking odours from above a cooking area. This particular model can be used to air extract or recirculate air. Extraction model The integrated fan extracts cooking fumes and smells from above the cooking surface.

  • Page 11: Equipment

    3 Your appliance Equipment • 1 extractor fan with 4 power levels: • 1 = low, 2 = medium, 3 = high, and intensive level. • Power levels 1–3 are suitable for continuous operation. • The intensive level is used for short bursts of intensive extraction of cooking fumes and smells, e.g.

  • Page 12: Operating And Display Elements

    3 Your appliance Operating and display elements Buttons ON/OFF button Power level selection Illumination ON/OFF Timer Displays Power level 1 Power level 2 Power level 3 Intensive level • Flashing: Wipe protection • Illuminated: Wipe protection activated Timer • Illuminated: Timer activated Saturation indicator for grease filters Clean grease filters •...

  • Page 13: Operating The Appliance

    Operating the appliance Using for the first time Configuring the appliance The appliance can be used in the extraction or recirculation mode. The appli- ance is set up as a recirculation hood with 5 kg of activated charcoal ex- factory. With this setting, the service life of the activated charcoal filter is 1,200 operating hours.
  • Page 14 4 Operating the appliance Activating and changing the saturation indicator for the activated charcoal filter Switch the appliance off. Depress the button for 3 seconds. – The and displays flash. Press the button repeatedly until the desired setting illuminates in the display.

  • Page 15: Operation

    4 Operating the appliance Checking the settings Switch off the appliance. Depress the button for 3 seconds. – If the and buttons flash, the appliance is configured as an extraction model. – If the buttons flash, the appliance is configured as a recirculation model.

  • Page 16: Intensive Level

    4 Operating the appliance The appliance has a memory function: the next time the appliance is used, if the flat deflector plate is pulled out then the appliance switches on at the power level last used. Switching the appliance off Press the button or push the flat deflector plate in.

  • Page 17: After-Running Time

    4 Operating the appliance After-running time Switch the appliance on. Press the button to select the desired power level. Press the button to activate the after-running time function. With the after-running time function, the appliance keeps running according to the following table and then switches off automatically. Button After-running time 20 minutes...

  • Page 18: Wipe Protection

    4 Operating the appliance Wipe protection This function prevents the range hood from being switched on accidentally while cleaning. The range hood must be switched off. Depress the button for 5 seconds. – illuminates in the display. – The wipe protection switches off automatically after 30 seconds and the display goes out.

  • Page 19: Care And Maintenance

    Care and maintenance Cleaning the housing Take care that no water gets into the housing! If water gets into the housing, it can cause damage. Do not use abrasive cleaners, scouring pads, steel wool etc. to clean the appliance as they can damage the surface. Remove the screw fuse or switch off the circuit breaker Cleaning the outside/inside Clean the outside using a slightly damp cloth –...

  • Page 20: Cleaning The Grease Filters And Combi Filters

    5 Care and maintenance Cleaning the grease filters and combi filters The grease filters must be cleaned at least once a month with normal use or whenever the button flashes. If cleaned monthly, the service life of the grease filter is as long as that of the range hood. The saturation indicator becomes visible when the appliance is in oper- ation or a power level is activated.
  • Page 21 5 Care and maintenance Cleaning Clean the grease filters and combi filters on their own in an upright position in a dishwasher. Set the dishwasher to an «intensive» – or «heavy» soiling – wash programme. Cleaning may cause the grease filters to become discoloured. This will not affect the functioning of the filters in any way.

  • Page 22: Replacing The Activated Charcoal Filters

    Spent activated charcoal filters can be disposed of in the household waste. The activated charcoal filters have been developed especially for this appli- ance and can only be ordered from V-ZUG Ltd's Customer Services. The activated charcoal filter consists of: Activated charcoal filter A...
  • Page 23 5 Care and maintenance Removing the activated charcoal filters Disconnect the appliance from the mains power supply. Cover over the hob to protect it from getting damaged. Remove and clean the grease filters. If appropriate, remove flue casing following the manufacturer's instructions. Press the metal cover C upwards and at the same time press both filter holders outwards.

  • Page 24: Replacing The Leds

    5 Care and maintenance Clean [➙ see page 21] the metal holder E in a dishwasher or by hand. Inserting the activated charcoal filters Insert the activated charcoal filter B from the front and lay straight in the filter holder. If appropriate, lay further activated charcoal filters B on top of the first acti- vated charcoal filter.
  • Page 25 Trouble-shooting What to do if … … the illumination is not working Possible cause Solution • Fuse or automatic circuit Replace the fuse. Reset the automatic circuit breaker. breaker for electrical installations in the home is defective. • An interruption in the Check the power supply.
  • Page 26 Accessories and spare parts Please give product family of the appliance and exact description of the accessory or spare part when ordering parts.* Grease filter Grease filter holder for 90 cm hood width Combi filter Activated char- coal filter * When ordering the activated charcoal filter give the length of the motor housing [➙...
  • Page 27 Technical data Electrical connection See identification plate. Remove the grease filters. – The identification plate is located on the inside of the appliance.
  • Page 28 Notes...
  • Page 29 Index Accessories ........26 Identification plate ......27 Activated charcoal ......13 Illumination ........ 11, 17 Activated charcoal filter ....10 Intensive level ........16 Replacing ........23 Saturation indicator ... 14, 17 After-running time ......17 Amount of activated charcoal used Replacing ........24 ............
  • Page 30 10 Index Safety ...........9 Technical data ......... 27 Safety precautions Type .............2 Before using for the first time ..6 Children in the home ....7 Correct use ........6 Using for the first time ......6 Note on use ........7 Saturation indicator Activated charcoal filter ..14, 17 Validity ..........2 Grease filter .......17 Settings options ......14...
  • Page 31 FN _______________________ Appliance _______________________ Please have these details to hand when contacting V-ZUG in connection with a malfunction. You will find them on the identification plate of your appliance. Remove metal grease filter. – The identification plate is located on the inside of the appliance.
  • Page 32 • Flashing: Saturation indicator for activated charcoal filters Replace activated charcoal filters • Flashing: V-ZUG Ltd Industriestrasse 66, 6301 Zug Tel. +41 58 767 67 67, Fax +41 58 767 61 61 info@vzug.ch, www.vzug.com Service Centre: Tel. 0800 850 850...
