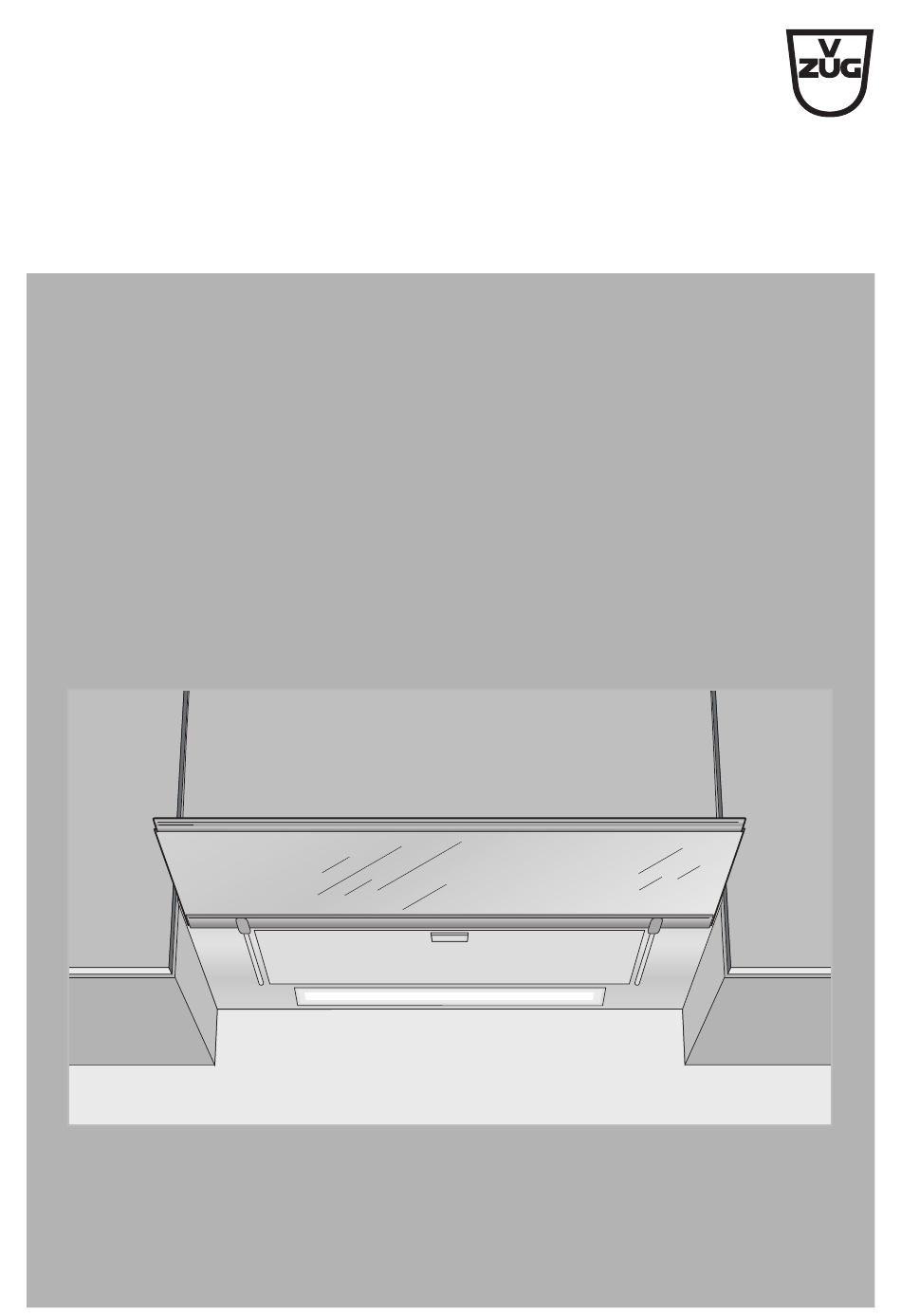

V-ZUG Ltd
Range hood
DF-SG5 / DF-SG6
DF-SG8 / DF-SG9
Operating instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DF-SG5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for V-ZUG DF-SG5

Summary of Contents for V-ZUG DF-SG5

  • Page 1 V-ZUG Ltd Range hood DF-SG5 / DF-SG6 DF-SG8 / DF-SG9 Operating instructions...
  • Page 2 The model number corresponds to the first 3 digits on the identification plate.These operating instructions apply to the models: Type Model no. Size system Type Model no. Size system DF-SG5 DF-SG8 82.5 DF-SG6 DF-SG9 Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6301 Zug, 2014...

  • Page 3: Table Of Contents

    Contents 1 Safety precautions 1.1 Before using for the first time ........4 1.2 Correct use .

  • Page 4: Safety Precautions

    Safety precautions The appliance corresponds to recognised technology standards and the relevant safety regulations. Proper use of the appliance is however essential to avoid damage and accidents. Please therefore follow the precautions given in these operating instructions. In accordance with the requirements of IEC 60335-1: •...

  • Page 5: Correct Use

    1 Safety precautions Correct use • The appliance is designed for use in the home for extracting cooking fumes and smells from above the cooking surface. • Any repairs, modifications or manipulations to the appliance, especially any electrically live parts, should only be carried out by the manufacturer, its Customer Services or similarly qualified persons.

  • Page 6: Note On Use

    1 Safety precautions Note on use • If the appliance is visibly damaged, do not use it. Contact our Customer Services. • If the appliance is not operating properly, disconnect it from the electricity supply immediately. • If the mains cable of the appliance is damaged, it must be replaced by Customer Services in order to avoid hazard.
  • Page 7 1 Safety precautions • If other appliances – fuelled by gas or other fuels – are being used at the same time, ensure that there is a sufficient supply of fresh air. This does not apply to air recirculation appliances. •...

  • Page 8: Appliance Description

    Appliance description The appliance is used to extract cooking fumes and smells from a cooking area and is normally installed in an overhead unit. This particular model can be used in the extraction mode or the recirculation mode. Extraction model The integrated fan extracts cooking fumes and smells from above the cooking surface.

  • Page 9: Equipment

    2 Appliance description Equipment • Glass shield, extractable • 2 extractor fans with 3 power levels • 1 metal grease filter • Illumination • 1 activated charcoal filter (not supplied) The extractor fan has 3 power levels: 1, 2 and 3 •...

  • Page 10: Operating Elements

    2 Appliance description Operating elements Illumination ON–OFF Extractor fan power level 1 ON, all power levels OFF Extractor fan power level 2 ON–OFF Extractor fan power level 3 ON–OFF Depending on the model and features, the specification of your appliance may differ from the standard specification described.

  • Page 11: Use

    Switching on the appliance Pull out the glass shield. The extraction fans can only be switched on if the glass shield is slightly pulled out. The appliance operates most effectively when the glass shield is completely pulled out. Switching the extractor fan on/off Power level 1 ON: Press the button 1×.
  • Page 12 3 Use Switching the illumination on/off To switch on: Press the button 1×. To switch off: Press the button again. Switching off the appliance Fully insert the glass shield. – This switches off the extraction fan and the illumination even if both are still switched on.

  • Page 13: Care And Maintenance

    Care and maintenance Cleaning the housing Take care that no water gets into the housing! If water gets into the housing, it can cause damage. Do not use abrasive cleaners, scouring pads, steel wool etc. to clean the appliance as they can damage the surface. Remove screw fuse for appliance or switch off circuit breaker.

  • Page 14: Metal Grease Filter With Integrated Long-Life Activated Charcoal Filter

    4 Care and maintenance Metal grease filter with integrated Long-life activated charcoal filter The filters can be cleaned and reactivated (activated charcoal filters). They must be cleaned at least once a month with normal use. The activated charcoal filters must be replaced after about 3 years because their ability to absorb smells will be reduced.
  • Page 15 4 Care and maintenance Removing the grease filter Pull out the glass shield completely. Pull the grip flap 2 in the centre recess on the grease filter toward the back. – The grease filter 1 is unlocked and can be taken out toward the bottom. Cleaning the grease filter.

  • Page 16: Replacing The Halogen Light Bulb

    4 Care and maintenance Replacing the halogen light bulb Remove the appliance’s screw fuse or switch off the circuit breaker. Halogen light bulbs get hot during operation! Allow to cool down first. Pull out the glass shield completely. Remove the grease filter. Unscrew the halogen light bulb from the fixture and replace it with a new halogen light bulb of the same type (see designation on the light bulb hou- sing or on the identification plate).

  • Page 17: Trouble-Shooting

    Trouble-shooting What to do if … … the illumination is not working Possible cause Solution • The fuse or the circuit Replace the fuse. breaker for electrical Reset the circuit breaker. installations in the home is faulty. • Interruption in the power Check the mains supply.

  • Page 18: Accessories And Spare Parts

    Accessories and spare parts Please give model number of the appliance and exact description of the accessory or spare part when ordering parts. Halogen light bulb 230 V / 28 W Metal grease filter The halogen light bulb is also available from specialist retailers.

  • Page 19: Technical Data

    Technical data Electrical connection See identification plate. Remove the grease filter. – The identification plate is located on the inside of the appliance.

  • Page 20: Disposal

    Disposal Packaging • All packaging materials (cardboard, plastic film (PE) and polystyrene (EPS)) are marked and should, if possible, be collected for recycling and disposed of in an environmentally friendly way. Disconnection • Disconnect the appliance from the mains power supply. With a fixed appliance, this is to be carried out by a qualified electrician! Safety •...

  • Page 21: Notes

    Notes...

  • Page 22: Index

    Index Accessories ....18 Maintenance ....13 Ordering .

  • Page 23: Repair Service

    Remove metal grease filter. – The identification plate is located on the inside of the appliance. If the appliance is not working properly, contact your nearest V-ZUG Ltd Service Centre using freephone 0800 850 850 and stand in close proximity to the appliance.

  • Page 24: Quick Instructions

    Press the button again. Press the button again or push in the glass shield. V-ZUG Ltd Industriestrasse 66, 6301 Zug Tel. +41 (0)41 767 67 67, Fax +41 (0)41 767 61 61 vzug@vzug.ch, www.vzug.ch Service Centre: Tel. 0800 850 850...
