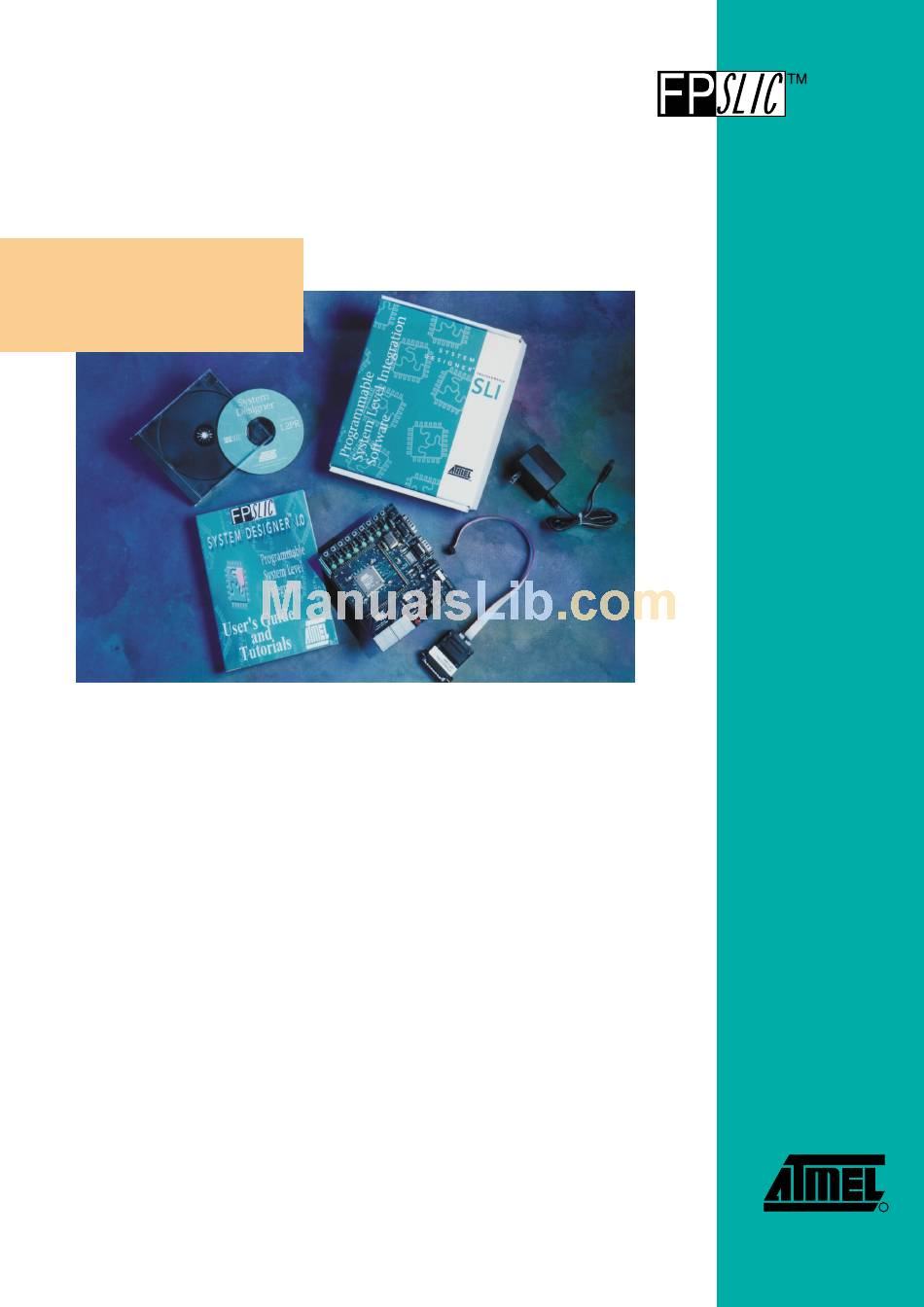

Atmel FPSLIC ATSTK94 Specification Sheet

F P
IELD ROGRAMMABLE
S -L I
YSTEM EVEL NTEGRATION
E E '
ON VERY NGINEER
Atmel offers a low-cost development kit for the designer who wishes to begin
working with the award-winning FPSLIC™ (AT94K) family of devices. The kit
allows designers to design, synthesize, simulate and program Atmel's new
FPSLIC product. A comprehensive tutorial takes designers through the
complete FPSLIC development process. The starter kit, which runs on PC
®
Windows -based platforms, includes everything needed to get started with
FPSLIC, including all software, tutorials, complete documentation, boards,
parts and cables. The kit consists of a starter kit board that includes:
•
AT94K40AL Device
•
AT17LV010 Device
•
AT17 Series ISP Port for Direct ISP
Download from PC
•
Push-button Switches and LEDs
•
Four Alphanumeric LED Displays
•
Two RS232 Transmit/Receive Ports
•
18.432 MHz, 4 MHz and 32 kHz
Clock Sources
D
S ESKTOP
•
•
•
•
•
ATSTK94 S
Power Management Circuitry (Direct
Plug-in-wall 9-volt Power Supply to
Board – Supplied to US Customers)
Easy Access to All FPSLIC Pins via
Headers
Push-button FPSLIC Reset
ATDH2225 Configurator Programming
Cable for Rapid AT17LV010 In-System
Programming
The System Designer™ Software
(4-month License)
K
TARTER IT
R
