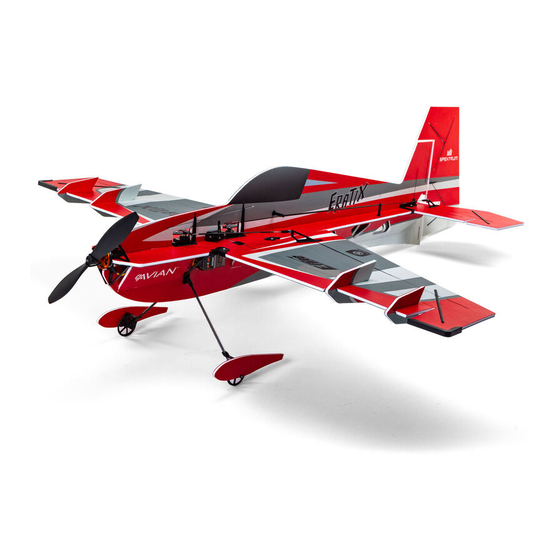

Eratix 3D Flat Foamy 860mm
Instruction Manual
Bedienungsanleitung
Manuel d'utilisation
Manuale di Istruzioni
155889.3
Updated 08/22
Scan the QR code and select the Manuals and Support
quick links from the product page for the most up-to-date
Scannen Sie den QR-Code und wählen Sie auf der
Produktseite die Quicklinks Handbücher und Unterstützung,
um die aktuellsten Informationen zu Handbücher.
Scannez le code QR et sélectionnez les liens rapides
Manuals and Support sur la page du produit pour obtenir
les informations les plus récentes sur le manuel.
Scannerizzare il codice QR e selezionare i Link veloci
Manuali e Supporto dalla pagina del prodotto per le
informazioni manuali più aggiornate.
manual information.
EFL01950
EFL01975
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Horizon Hobby E-flite Eratix 3D Flat Foamy 860mm
Summary of Contents for Horizon Hobby E-flite Eratix 3D Flat Foamy 860mm
- Page 1 Eratix 3D Flat Foamy 860mm Scan the QR code and select the Manuals and Support quick links from the product page for the most up-to-date manual information. EFL01950 Scannen Sie den QR-Code und wählen Sie auf der Produktseite die Quicklinks Handbücher und Unterstützung, um die aktuellsten Informationen zu Handbücher.
-
Page 2: Safety Precautions And Warnings
This product is not intended for use by children without direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance. -
Page 3: Table Of Contents
Included / Recommended Equipment 34in (863.5mm) Motor: 2405–1200Kv Brushless Outrunner, 14 pole Installed Installed (SPMXAM2300) ESC: Avian 15A Brushless Smart ESC with IC2 ™ Installed Installed (SPMXAE1015C) Servos: Elevator/Rudder (2) A346 8g Sub-Micro Digital (SPMSA346); Aileron (1) A347 9g Sub-Micro Digital MG Installed Installed (SPMSA347) -
Page 4: Safe ® Select Technology Bnf
SAFE Select Technology BNF ® The BNF Basic version of this airplane includes SAFE Select technology which can SAFE Select can be configured three ways: offer an extra level of protection in flight. Use the following instructions to make • SAFE Select Off: Always in AS3X mode the SAFE Select system active and assign it to a switch. -
Page 5: Dual Rates And Control Throws
Dual Rates and Control Throws Program your transmitter to set the rates and control throws to the values given. High Rate Low Rate These values have been tested and are a good starting point to achieve successful p = 88mm p = 58mm flight. -
Page 6: General Binding Tips And Failsafe Bnf
General Binding Tips and Failsafe BNF • The included receiver has been specifically programmed for operation of this • Once bound, the receiver will retain its bind settings for that transmitter until aircraft. Refer to the receiver manual for correct setup if the receiver is replaced. you re-bind. -
Page 7: Model Assembly
WARNING: Before proceeding, remove the spinner and propeller from the motor shaft. Never attempt to program the radio components, assemble the aircraft or perform maintenance of any kind without removing the propeller or engaging throttle cut. Serious injury could result if the motor starts inadvertently with the propeller still attached. -
Page 8: Control Surface Centering
Wing Installation M2 x 8 mm Machine Screw Mount the Wing to the Fuselage 1. Insert the carbon fiber spar into the fuselage. 2. Slide the left wing onto the spar, with the control horn facing up, until it seats into the fuselage mounting structure. -
Page 9: Integrated Esc Telemetry
Integrated ESC Telemetry BNF: This aircraft includes telemetry between the ESC and receiver, which can Telemetry Setup provide information including RPM, voltage, motor current, throttle setting (%), and 1. Begin with the transmitter bound to the receiver. FET (speed controller) temperature. 2. -
Page 10: Control Surface Direction
Control Surface Direction Switch on the transmitter and connect the battery. Use the transmitter to operate Control Surface Transmitter Command the aileron, elevator, and rudder controls. View the aircraft from the rear when Response checking the control directions. Ailerons 1. Move the aileron stick to the left. The left aileron should move up and the right aileron down, which will cause the aircraft to bank left. -
Page 11: Propeller Installation
Propeller Installation WARNING: Do not install the propeller until the aircraft has been 2.5mm x 10mm completely assembled, all the systems have been checked thoroughly Countersunk and you are located at a suitable flying site. Machine Screw WARNING: Never install a cracked, nicked or otherwise damaged propeller. -
Page 12: Troubleshooting Guide As3X Bnf
Troubleshooting Guide AS3X BNF Problem Possible Cause Solution Damaged propeller Replace propeller Imbalanced propeller Balance the propeller Motor vibration Replace parts or correctly align all parts and tighten fasteners as needed Oscillation Loose receiver Align and secure receiver in fuselage Loose aircraft controls Tighten or otherwise secure parts (servo, arm, linkage, horn and control surface) Worn parts... -
Page 13: Replacement Parts
Replacement Parts Recommended Items Part # Description Part # Description EFL01976 Wing Set: Eratix 3D Flat Foamy 860mm SPMR6775 NX6 Transmitter Only EFL01977 Fuselage: Eratix 3D Flat Foamy 860mm SPMXC2050 S155 Smart Charger, 1x 55W EFL01978 Horizontal Stabilizer: Eratix 3D Flat Foamy 860mm SPMXCA320 Adapter: IC3 Battery / IC2 Device 6”... -
Page 14: Limited Warranty
(iii) modification of or to any part process found on our website or call Horizon to obtain a Return Merchandise of the Product, (iv) attempted service by anyone other than a Horizon Hobby authorized Authorization (RMA) number. Pack the Product securely using a shipping carton. -
Page 15: Fcc Information
Champaign, IL 61822 USA Directive - Amending 2011/65/EU Annex II 2015/863. EU Importer of Record: Eratix FF 3D BNF Basic (EFL01950): Hereby, Horizon Hobby, LLC declares that the Horizon Hobby, GmbH device is in compliance with the following: EU Radio Equipment Directive 2014/53/ Hanskampring 9 EU;... - Page 16 E-flite, Avian, DSM, DSM2, DSMX, Bind-N-Fly, BNF, the BNF logo, Plug-N-Play, AS3X, SAFE, the SAFE logo, ModelMatch, IC3, EC3, and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc.
