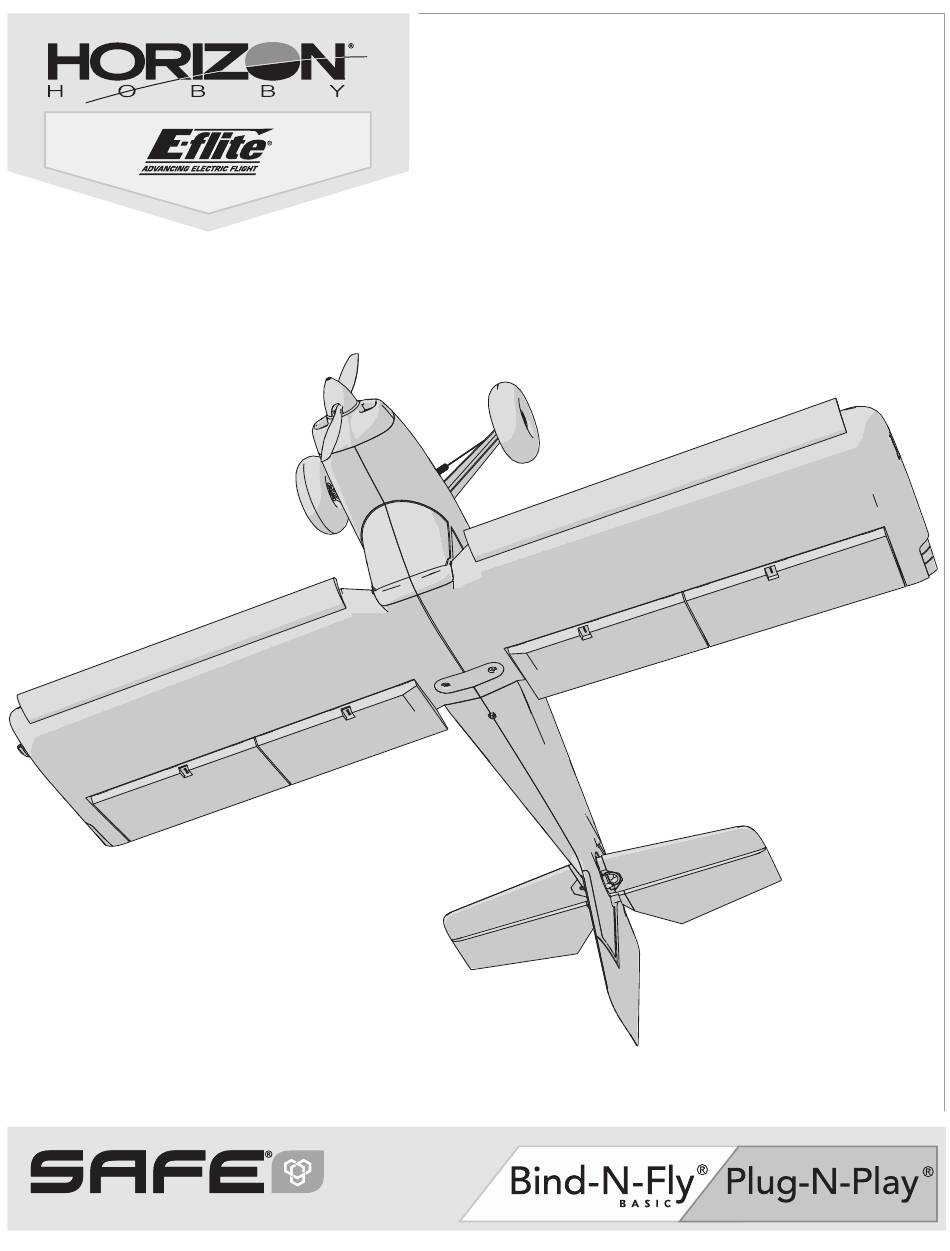

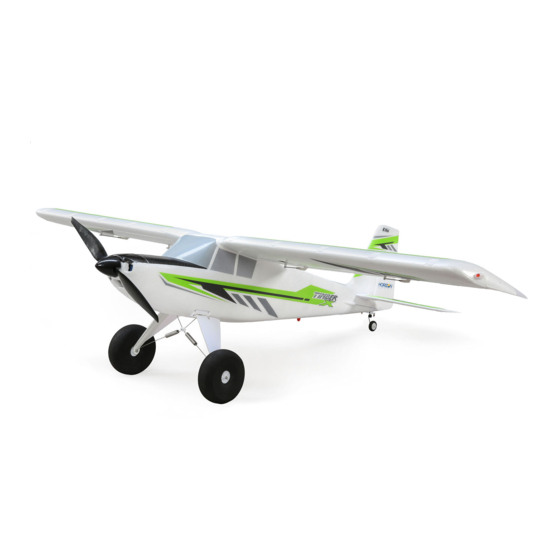

- Page 1 Timber X 1.2m ® Instruction Manual Bedienungsanleitung Manuel d’utilisation Manuale di Istruzioni ® SAFE Select Technology, Optional Flight Envelope Protection...
- Page 2 NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit www.horizonhobby.com and click on the support tab for this product. Meaning of Special Language: The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product: WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high probability of superfi...
-
Page 3: Table Of Contents
Box Contents Quick Start Information Transmitter Set up your transmitter using the Setup transmitter setup chart Hi Rate Low Rate 33mm 25mm 33mm 25mm Dual Rates 22mm 16mm 30mm 20mm Full Half Flaps =35mm =20mm Center of 82mm-92mm back from leading edge Gravity (CG) of wing at the fuselage. -
Page 4: Select Technology (Bnf Basic)
POS 1: 50% FLAP* 14% Elevator DX18 recommended fl ap travel settings provided in the Flaps section and adjust the fl ap POS 2: 100% FLAP* 20% Elevator DX20 travel to your preference on subsequent fl ights. SPEED 2.0 iX12 Timber X 1.2m... -
Page 5: Model Assembly
Model Assembly Landing Gear Installation 3 x 8mm button head Mount the Landing Gear to the Fuselage machine 1. Insert one landing gear assembly into the pocket on the side of the fuselage as shown. The landing gear legs mount to the aluminum block which can pivot in the pocket. - Page 6 3. Slide the pushrod in the quick connector to change the length of the linkage between the servo arm and the control horn so the control surface is centered. 4. Apply thread lock compound to the screw threads and tighten the screw to secure the pushrod at the desired length. 90˚ Timber X 1.2m...
- Page 7 Model Assembly Continued Slat Installation (Optional) Required Adhesives Medium CA 1. Carefully remove all the foam slat pocket covers (A) from the wing. 2. When the pocket is exposed, carefully apply medium CA to each slat pocket. 3. Mount the slat onto the wing with the rounded edge facing forward. Ensure that the left and right slats are on the correct wing half.
-
Page 8: Binding / Switching On And Off Safe Select (Bnf Basic)
If the receiver loses transmitter communication, the failsafe will activate. When activated, failsafe moves the throttle channel to its preset failsafe position (low throttle) that was set during binding. All other channels move to actively level the aircraft in fl ight. Timber X 1.2m... -
Page 9: Battery Installation And Esc Arming
Battery Installation and ESC Arming Battery Selection The E-fl ite ® 2200mAh 14.4V 4S 30C Li-Po battery (EFLM22004s30) is recommended. The EFL22003S30 battery may also be used. For maximum performance with 3 cells, a 13X6.5 electric propeller may be utilized. Refer to the Optional Parts List for other recommended batteries. -
Page 10: Control Horn And Servo Arm Settings
After fl ying, you may choose to adjust the linkage positions for the desired control response. See the table to the right. Rudder Aileron Flaps Tuning Horns Arms More control throw Less control throw Timber X 1.2m... -
Page 11: Center Of Gravity (Cg)
Center of Gravity (CG) NOTICE: Install the battery but do not arm the ESC while checking the CG. Personal injury may result. The CG location is measured from the leading edge of the wing at the root. This CG location has been determined with the recommended Li-Po battery (EFLB22003S30). -
Page 12: Flying Tips And Repairs
For a short takeoff, apply full throttle and hold up elevator until the desired pitch attitude is reached. Continue holding up elevator until the appropriate altitude is reached. Once the elevator stick is returned to center, the aircraft will automatically resume level fl ight. Timber X 1.2m... -
Page 13: Pnp Receiver Selection And Installation
PNP Receiver Selection and Installation The Spektrum AR636 receiver is recommended for ths airplane. If you choose AR636 Port to install another receiver, ensure that it is at least a 5-channel full range (sport) receiver. Refer to your receiver manual for correct installation and Assignments operation instructions. -
Page 14: Troubleshooting Guide
Motor power pulses Weather conditions might be too cold Postpone flight until weather is warmer then motor loses Battery is old, worn out, or damaged Replace battery power Battery C rating might be too small Use recommended battery Timber X 1.2m... -
Page 15: Bnf Advanced Receiver Setup (Optional)
BNF advanced receiver setup (optional) With the basic transmitter setup, the ailerons and fl aps will operate separately. Advanced Transmitter Setup For increased aileron authority, the AR636 receiver included in the BNF version Start all transmitter programming with a blank ACRO model (perform a model may be confi... -
Page 16: Ama National Model Aircraft Safety Code
(b) An inexperienced pilot is assisted by an experienced pilot. 4. When and where required by rule, helmets must be properly worn and fastened. They must be OSHA, DOT, ANSI, SNELL or NOCSAE approved or comply with comparable standards. Timber X 1.2m... -
Page 17: Limited Warranty
Product, (iv) attempted service by Return Merchandise Authorization (RMA) number. Pack the Product securely anyone other than a Horizon Hobby authorized service center, (v) Product not using a shipping carton. Please note that original boxes may be included,... -
Page 18: Fcc Information
FCC Information FCC ID: BRWDASRX15 Supplier’s Declaration of Conformity Contains IC: 6157A-AMRX15 Timber X 1.2m BNF Basic with AS3X and SAFE Select FCC Information EFL3850 This device complies with part 15 of the FCC rules. Operation is subject to the This device complies with part 15 of the FCC Rules. -
Page 19: Recommended Receivers
SPMA9587 Aircraft Telemetry GPS Sensor Flugzeugtelemetrie-GPS-Sensor avion *Not compatible with BNF, Telemetry receiver required *Nicht kompatibel mit BNF, Telemetrieempfänger erforderlich *Non compatible avec les modèles BNF, récepteur télémétrique requis *Non compatibile con BNF, necessita di ricevente con telemetria Timber X 1.2m... -
Page 20: Replacement Parts
Replacement Parts • Ersatzteile • Pièces de rechange • Pezzi di ricambio Part # | Nummer Description Beschreibung Description Descrizione Numéro | Codice EFL3851 Fuselage: Timber X Timber X: Rumpf Timber X - Fuselage Fusoliera: Timber X EFL3852 Wing Set: Timber X Timber X: Tragfl... -
Page 21: Optional Parts
DX20 DSMX 20-Channel Transmitter Spektrum DX20 DSMX 20 Kanal Sender Emetteur DX20 DSMX 20 voies DX20 DSMX Trasmettitore 20 canali iX12 DSMX 12-Channel Transmitter Spektrum iX12 DSMX 12 Kanal Sender Emetteur iX12 DSMX 12 voies iX12 DSMX Trasmettitore 12 canali Timber X 1.2m... - Page 22 E-Flite, Timber, AS3X, DSM, DSM2, Airware, Bind-N-Fly, BNF, the Bind-N-Fly logo, Plug-N-Play, SAFE, the SAFE logo, ModelMatch, Dyanmite, EC3, Passport, Prophet and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc.
