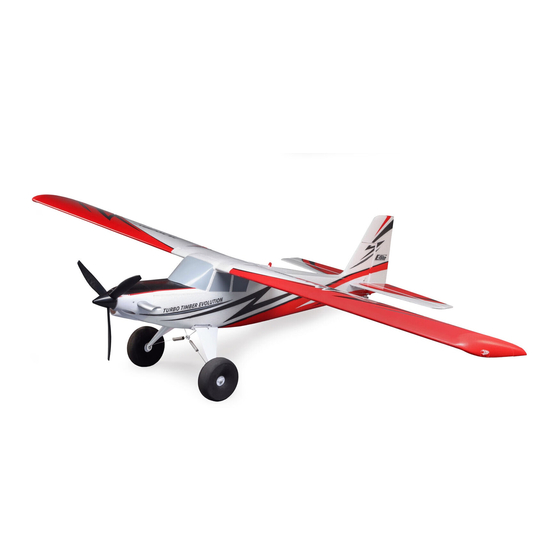

Turbo Timber
Scan the QR code and select the Manuals and Support quick links from
the product page for the most up-to-date manual information.
Scannen Sie den QR-Code und wählen Sie auf der Produktseite
die Quicklinks Handbücher und Unterstützung, um die aktuellsten
Scannez le code QR et sélectionnez les liens rapides Manuals and Support
sur la page du produit pour obtenir les informations les plus récentes sur
Scannerizzare il codice QR e selezionare i Link veloci Manuali e Supporto
dalla pagina del prodotto per le informazioni manuali più aggiornate.
Instruction Manual
Bedienungsanleitung
Manuel d'utilisation
Manuale di Istruzioni
Evolution 1.5m
®
Informationen zu Handbücher.
le manuel.
EFL105250
EFL105275
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Horizon Hobby Turbo Timber Evolution 1.5m
Summary of Contents for Horizon Hobby Turbo Timber Evolution 1.5m

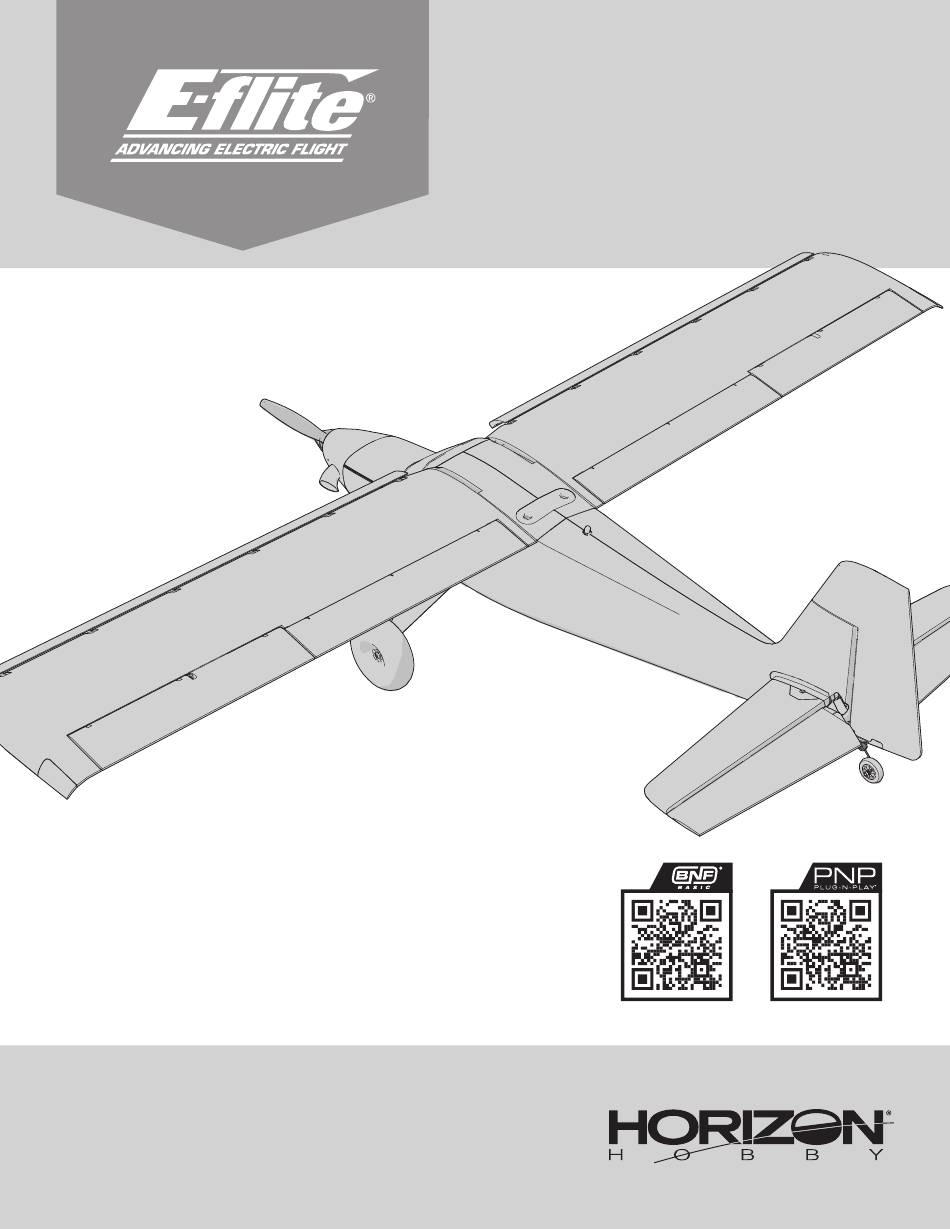

- Page 1 Turbo Timber Evolution 1.5m ® Scan the QR code and select the Manuals and Support quick links from the product page for the most up-to-date manual information. Scannen Sie den QR-Code und wählen Sie auf der Produktseite die Quicklinks Handbücher und Unterstützung, um die aktuellsten Informationen zu Handbücher.
- Page 2 This product is not intended for use by children without direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance.
-
Page 3: Table Of Contents
Box Contents Quick Start Information 1. Blank (Acro) Model 2. Wing Type: 1 Aileron, 1 Flap Transmitter Setup 3. Servo Reversing: All Channels Normal 4. Travel Adjust (All Surfaces): 100% High Rate Low Rate p = 33mm p = 25mm Aileron q = 33mm q = 25mm... -
Page 4: Select Technology Bnf
POS 2: 100% FLAP* 30% Elevator SPEED 2.0 * Flap programming values may vary slightly. For your initial flights use the recommended flap travel settings provided and adjust the flap travel to your preference on subsequent flights. Turbo Timber Evolution 1.5m... -
Page 5: Model Assembly
WARNING: Assemble the aircraft, program your radio control system, bind the aircraft, and verify correct operation before installing the propeller. Never attempt to program the radio components, assemble the aircraft or perform maintenance of any kind without removing the propeller or engaging throttle cut. Serious injury could result if the motor starts inadvertently with the propeller still attached. -
Page 6: Receiver Selection And Installation Pnp
NOTICE: Do not cut, kink, or modify the antenna. Damage to the coaxial portion of an antenna will reduce the performance of the antenna. Shortening or cutting off the 31mm tip will reduce the range. Active portion of antenna Turbo Timber Evolution 1.5m... -
Page 7: General Binding Tips And Failsafe Bnf
General Binding Tips and Failsafe BNF • The included receiver has been specifically programmed for operation of this • Once bound, the receiver will retain its bind settings for that transmitter until aircraft. Refer to the receiver manual for correct setup if the receiver is replaced. you re-bind. -
Page 8: Model Assembly (Continued)
90˚ between the servo arm and the control horn so the control surface is centered. 5. Apply thread lock compound to the screw threads and tighten the screw to secure the pushrod at the desired length. Turbo Timber Evolution 1.5m... -
Page 9: Model Assembly (Continued)
Model Assembly (continued) Wing Assembly Choose to assemble the wing with or without the leading edge slats to suit your flying style. For optimized high speed performance we recommend flying without the slats. For maximum slow speed performance we recommend installing the slats. With Slats Without Slats 1. -
Page 10: Model Assembly (Continued)
• The ESC will sound a series of tones. • An LED will light on the receiver. • If the ESC sounds a continuous double beep after the flight battery is connected, recharge or replace the battery. 6. Reinstall the canopy hatch. Turbo Timber Evolution 1.5m... -
Page 11: Integrated Esc Telemetry
Integrated ESC Telemetry BNF: This aircraft includes telemetry between the ESC and receiver, which can Telemetry Setup provide information including RPM, voltage, motor current, throttle setting (%), and 1. Begin with the transmitter bound to the receiver. FET (speed controller) temperature. 2. -
Page 12: Control Horn And Servo Arm Settings
5. Move the rudder stick to the left. The rudder should move to the left, which will cause the aircraft to yaw left. 6. Move the rudder stick to the right. The rudder should move to the right, which will cause the aircraft to yaw right. Turbo Timber Evolution 1.5m... -
Page 13: Control Response Test Bnf
AS3X Control Response Test BNF ® WARNING: Do not perform any testing or maintenance with the propeller Aircraft movement AS3X Reaction installed on the aircraft. Serious injury or property damage could result from the motor starting inadvertently. This test ensures that the AS3X control system is functioning properly. Assemble the aircraft and bind your transmitter to the receiver before performing this test. -
Page 14: Dual Rates And Control Throws
Select mode to AS3X mode. If you do not neutralize controls when switching into Throttle Neutral: Level flight flight response. AS3X mode, the control inputs used for SAFE Select mode will be excessive for Low throttle: Descend AS3X mode and the aircraft will react immediately. Turbo Timber Evolution 1.5m... -
Page 15: In Flight Trimming Bnf
In Flight Trimming BNF During your first flight, trim the aircraft for level flight at 3/4 throttle with flaps up. Make small trim adjustments with your transmitter’s trim switches to straighten the aircraft’s flight path. 3 Seconds After adjusting the trim, do not touch the control sticks for 3 seconds. This allows the receiver to learn the correct settings to optimize AS3X performance. -
Page 16: Troubleshooting Guide
Motor power pulses Weather conditions might be too cold Postpone flight until weather is warmer then motor loses Battery is old, worn out, or damaged Replace battery power Battery C rating might be too small Use recommended battery Turbo Timber Evolution 1.5m... -
Page 17: Float Installation (Optional)
Float Installation (Optional) Float Assembly 1. Install the 2 cross members (A) to the left and right floats as shown. 2. Install the front and rear float struts to the floats and secure the assembly together using the included 4 float plates (B) and M2.5 x 25mm machine screws (C). -
Page 18: Thrust Reversing (Optional)
11. Set THRUST REV: Select the channel you designated for thrust reversing in your transmitter. CH7 is the selection by default, but do not use this default option if you are using Aux2/Ch7 for SAFE Select. 12. Select EXIT W/ SAVE to save your selections Turbo Timber Evolution 1.5m... -
Page 19: Replacement Parts
Replacement Parts Recommended Items Part # Description Part # Description EFL105251 Fuselage: Turbo Timber Evolution SPMX32004S30 14.8V 3200mAh 4S 30C Smart LiPo, IC3 EFL105252 Wing Set: Turbo Timber Evolution SPMR6775 NX6 Transmitter Only EFL105253 Battery Hatch: Turbo Timber Evolution SPMXC2020 S1200 G2 AC 1x200W Smart Charger EFL105254 Landing Gear: Turbo Timber Evolution... -
Page 20: Limited Warranty
(iii) modification of or to any part process found on our website or call Horizon to obtain a Return Merchandise of the Product, (iv) attempted service by anyone other than a Horizon Hobby authorized Authorization (RMA) number. Pack the Product securely using a shipping carton. -
Page 21: Fcc Information
Champaign, IL 61822 USA Directive - Amending 2011/65/EU Annex II 2015/863. EU Importer of Record: Turbo Timber Evolution BNF Basic (EFL105250); Hereby, Horizon Hobby, LLC Horizon Hobby, GmbH declares that the device is in compliance with the following: EU Radio Equipment Hanskampring 9 Directive 2014/53/EU;... - Page 22 E-flite, Avian, DSM, DSM2, DSMX, Bind-N-Fly, BNF, the BNF logo, Plug-N-Play, AS3X, SAFE, the SAFE logo, ModelMatch, IC3, EC3, and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc.
