- Page 1 T1/T2 QUICK INSTALL 快速安装 北京炜煌科技发展有限公司 Beijing Bright Technology Development Co.,Ltd ...

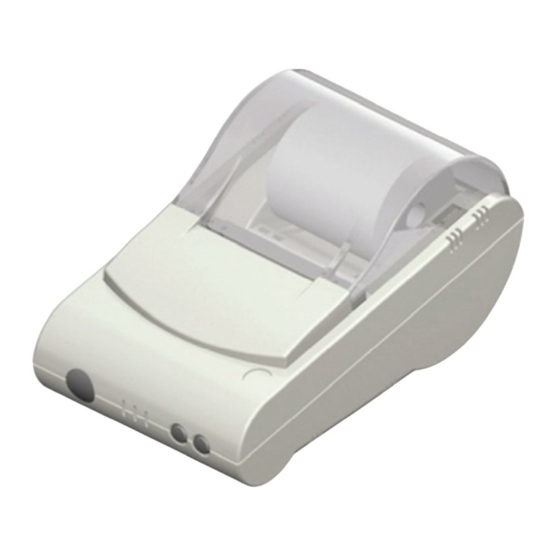

- Page 2 快速安装手册 ●打印机各部件一览 Printer Parts Names 1.纸仓盖 Paper Case Cover 6.色带/打印头 Ribbon/ Printer head 2.机头盖 Panel 7.指示灯 Indicator Light 3.SEL 键 SEL Button 8.备用接口 Reserve Case 4.LF 键 LF Button 9.数据接口 Interface Connector 5.纸仓 Paper Case 10.电源接口 Power Connector 按钮开关的操作及指示灯...
- Page 3 快速安装手册 ●尺寸 Size WH-T1/T2 型尺寸 Product Size: 外形尺寸：Outline Dimension： 180mm×110mm×90mm 挂孔孔距：Installation Hole Distance： 93.5mm http://www.whkj.com.cn 010‐51655555 ...
- Page 4 安装方法： 打印机挂在设备上。按照打印机底部两个挂孔的相对位置在设备上安装两个螺丝。打印机 挂上即可。 WH-T1 两挂孔间距(单位毫米):93.5mm Installation Method As the picture show, fix two screws on the equipment according to the relative position of the two mounting holes in the back of printer, and then hang the printer on the equipment.
- Page 5 Attention: Do not connect AC to the printer directly, operating voltage should be within 5% rated voltage. Power polarity must be correct, otherwise it will cause permanent damage to printer, brightek company do not assume maintenance compulsory upon this. http://www.whkj.com.cn 010‐51655555 ...
- Page 6 快速安装手册 ●装纸 Paper Roll 安装步骤： 1.如图 2 翻开活动纸仓盖。 2.接着将打印纸装入，并拉出一截(超出一点撕纸牙齿),注意把纸放整齐,纸的方向如图 1 所示。 3.对准机头的打印纸入口，接通打印机电源，按下 SEL 按键使 SEL 指示灯熄灭，然后按一 下 LF 键，这时机头开始走动。用手将纸送入机头入口处，这时纸便会徐徐进入机头， 直到从机头上方露出为止，露出应有一定长度。再按一下 SEL 键，或关上电源。 4.关上活动纸仓盖即可。 T2 为易装纸型，无需参考此步骤。(热敏型注意装纸方向，应有药液一面(光滑面)向下) Replacing the Paper Roll 1. Open the paper cover. 2. Insert the paper roller into the printer, Pull out a small amount of paper and insert the paper into the feeder.
- Page 7 快速安装手册 ●色带 Ribbon 色带更换： 1.翻开纸仓盖，接着如图 1 箭头指示方向，向前推动活动盖板，推开后轻轻取下(注意整 个过程中要保护好撕纸用牙齿,小心碰伤) 2.从打印机头上轻轻取下旧色带盒。注意：请先抬起色带盒的左端,然后再抬起色带盒的 右端,取下色带盒。 3.换新的色带盒。首先将色带盒的右端轻轻放在机头右端的齿轮轴上,左端稍微抬起，不 要放下。如色带盒右端未落到底,请按住色带盒上的旋钮，顺时针方向稍微转动一下， 直到色带盒的右端落到底后再放下色带盒的左端。 4.装上活动盖板，并关上活动纸仓盖即可。 注意：T2 热敏型无需此步骤。我们建议您不定期做好清理。方法是打开纸舱 盖，用棉棒沾少许酒精，轻轻擦拭打印机热敏头，及纸仓上的滚轴。 Ribbon Installation 1.Open the paper cover of printer, and push the movable cover panel as shown in the Fig.1 and then take it down. Take care of the sawtooth. 2.Take down the old ribbon cassette, notice: lift up the left end of the ribbon cassette, then lift up the right end, and then take down the ribbon cassette.
