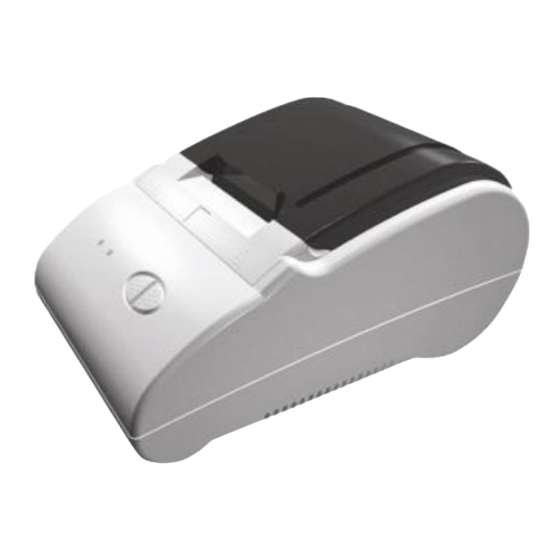

T3
QUICK INSTALL
快速安装
北京炜煌科技发展有限公司
Beijing Bright Technology Development Co.,Ltd

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Brightek T3

  • Page 1 QUICK INSTALL 快速安装 北京炜煌科技发展有限公司 Beijing Bright Technology Development Co.,Ltd...
  • Page 2 快速安装手册 ●打印机各部件一览 Printer Parts Names 1.纸仓盖 Paper Case Cover 6.SEL 键 SEL Button 11.电源接口 Power Connector 2.纸检测 Paper Check 7.绿灯 Green Light 12.通讯接口 Interface Connector 3.纸轴 Paper Roller 8.红灯 Red Light 13.备用接口 Reserve Connector 4.纸仓 Paper Case 9.LF 键 LF Button 5.机头盖...
  • Page 3 快速安装手册 ●尺寸 Size WH-T3 型尺寸 Product Size: 外形尺寸:Outline Dimension: 184.5mm×116mm×92mm 挂孔孔距:Installation Hole Distance: 107.5mm http://www.whkj.com.cn 010-51655555...
  • Page 4 快速安装手册 ●安装 Installation 安装方法: 打印机挂 在设备 上。按 照打印 机底部 两个挂 孔的相 对位置 在设备 上安装 两个螺 丝。打 印机 挂上即可。 WH-T1 两挂孔间距(单位毫米):107.5mm Installation Method As the picture show, fix two screws on the equipment according to the relative position of the two mounting holes in the back of printer, and then hang the printer on the equipment.
  • Page 5 Attention: Do not connect AC to the printer directly, operating voltage should be within 5% rated voltage. Power polarity must be correct, otherwise it will cause permanent damage to printer, brightek company do not assume maintenance compulsory upon this. http://www.whkj.com.cn...
  • Page 6 快速安装手册 ●装纸 Paper Roll 安装步骤: 1.如图 2 翻开活动纸仓盖。 2.接着将打印纸 装入, 并拉出 一截(超出 一点撕 纸牙齿),注意 把纸放 整齐,纸的 方向如 图 1 所示,有药液一面(光滑面)向下。 3.接通打印机电 源,按 下 SEL 按键 使 SEL 指示灯 灭,并 将纸送 到进纸 口,然 后 按 LF 键使 机头转动,这时看一下纸是否走歪, 再按一 下 SEL 键,或关上电 源。 4.检查安装正常后装上活动机头盖,关上活...
  • Page 7 快速安装手册 ●色带 Ribbon 色带更换: 1.翻开纸仓盖, 接着如 图 1 箭头指 示方向 ,向前 推动活 动盖板 ,推开 后轻轻 取下(注意 : 整个过程中要保护好撕纸用牙齿,小心碰 伤) 2.左手扶稳色带 盒左端 ,如 图 3 用右手食 指抬起 色带盒 右端 ,再用 左手抬 起左端 色带盒 即 被取下。注意不要先抬左端,再抬右 端,否 则容易 毁坏色 带盒, 甚至毁 坏机头 。 3.换新的色带盒。首先将...
  • Page 8 ●产品维护 一 、 打印机故障分析及排除 故 障 现 象 可 能 原 因 处 理 措 施 打印内容空白 色带有问题 检查色带是否转动灵活或色带上有油墨 或比较浅 数据线没插好 检查数据连接线是否有松动或连接是否良好 打印内容乱码 或不打印接口 串口配置参数 串口机型:检查串口配置参数(波特率、数据位、停 数据 不对 止位、校验位和流控制)是否与上位机匹配 检查机头排线与焊接的焊接是否正常 打印内容缺列 机头排线连接 检查机头排线插头与控制板插座是否有脱落现象 上电机头不转 机头齿轮结构 关闭打印机电源,转动电机齿轮是否灵活 动 卡 注:打印机内的电子元件不能随意拆卸或代换,如出现故障现象按照以上方法无法修复,请拨 打 售 后技术支持电话:400-666-6868 二...
