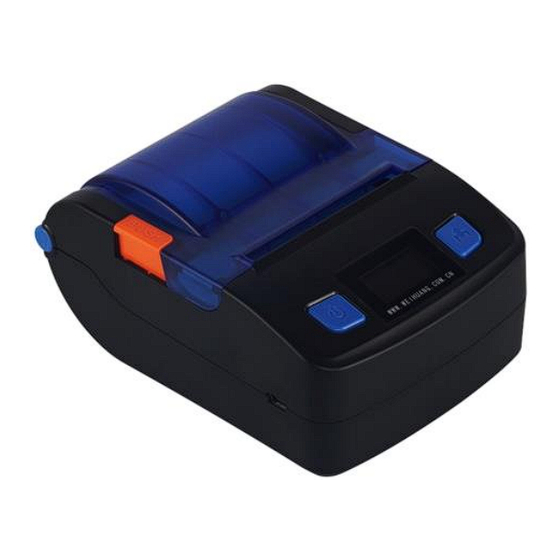

M13
QUICK INSTALLATION
快速安装
北京炜煌科技发展有限公司
Beijing Bright Technology Development Co.,Ltd

Advertisement

loading
Need help?

Need help?

Do you have a question about the M13 and is the answer not in the manual?

Questions and answers

Summary of Contents for Brightek M13

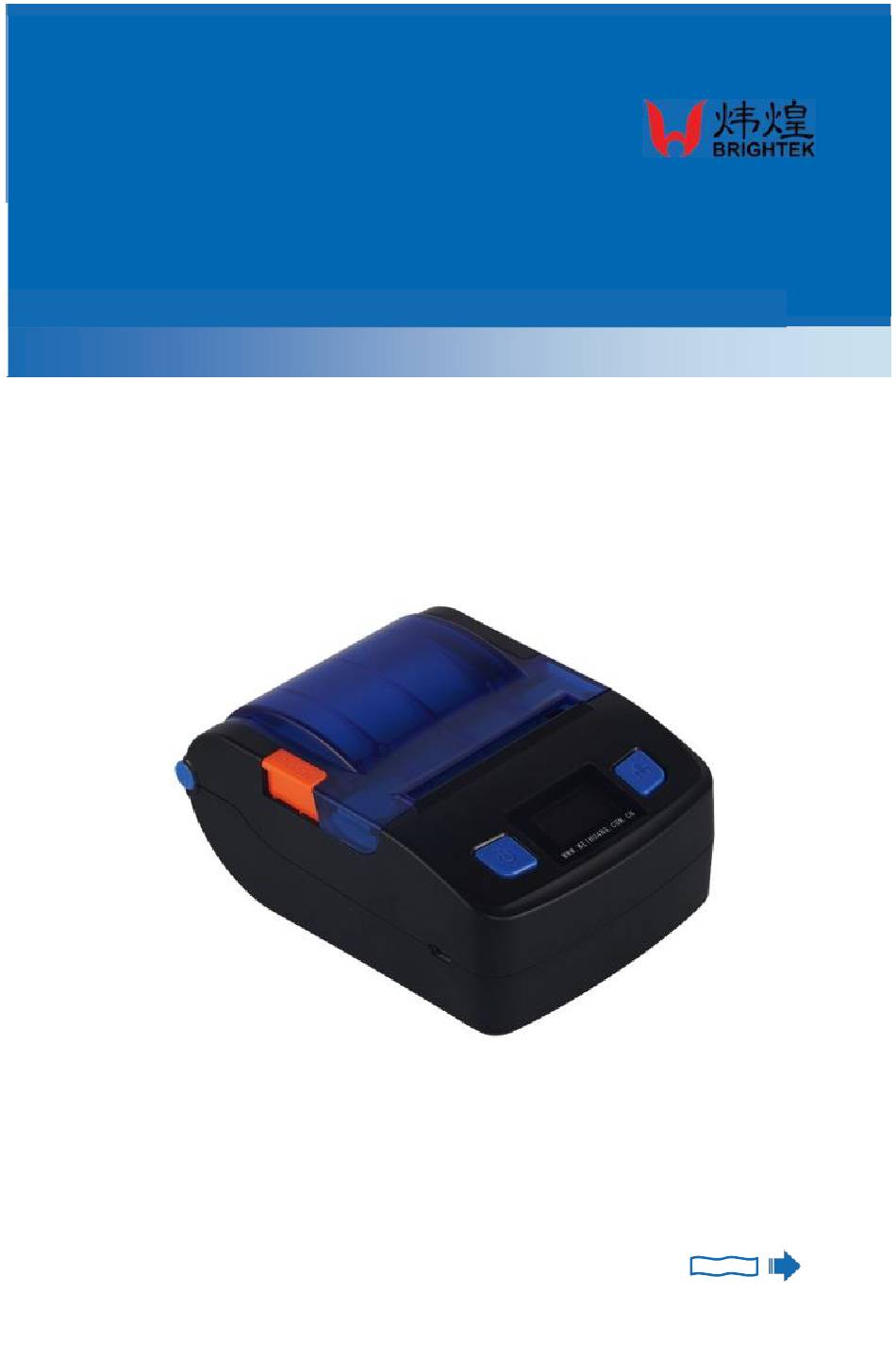

  • Page 1 QUICK INSTALLATION 快速安装 北京炜煌科技发展有限公司 Beijing Bright Technology Development Co.,Ltd...
  • Page 2: Operation

    快速安装手册 Quick Installation Manual ● 打印机各部件一览 Printer Parts Names 5. 电源开关 Power Switch 9. 打印头 Print Head 1. 纸仓盖 Paper Case Cover 10. 电池 Battery 2. PUSH键 PUSH Button 6. USB接口 USB Interface 7. 切刀 Cutter 11. 电池盖 Battery Case Cover 3.
  • Page 3 快速安装手册 Quick Installation Manual ● 尺寸 Size WH-M13 型尺寸 Product Size: 外型尺寸 Outline Dimension: 125mm X 89mm X 57.4mm 打印纸规格 Paper Size: 纸类型 厚度 宽度 纸卷直径 Paper Type Thickness Width Diameter 热敏纸 0.06 ~ 0.08mm 57 ±0.5mm 50mm (Max.) Thermal Paper...
  • Page 4 快速安装手册 Quick Installation Manual ● 安装 Installation 安装方法: 装电池:将电池盖打开,装入电池,再将电池盖盖上(见上图所示)。 Installation method: Install the battery: open the battery case cover, insert the battery and then close the battery case cover (see above figure). http://www.whkj.com.cn 010‐51655555...
  • Page 5: Cleaning And Maintenance

    快速安装手册 Quick Installation Manual ● 清洁 Cleaning 清洁保养: 打印机使用久了以后,热敏条与切滚轴上会留下一些污垢,如果不及时清理会影响到打印 机的使用与寿命。我们建议您不定期做好清理。 纸仓盖打开后,用棉棒沾少许酒精,轻轻擦拭打印机热敏头,及纸仓上的切刀滚轴。 Cleaning and Maintenance: After the printer is used for a long time, dirt will be left on the thermal strip and the roller, which will affect the printing quality and service lifespan of the printer. It is recommended to clean up the printer regularly.
  • Page 6 快速安装手册 Quick Installation Manual ● 装纸 Paper Loading 装纸步骤 : 如图 所示沿着箭头方向翻开活动纸仓盖。 把打印纸装入,并拉出一截,放到出纸口,合上纸仓盖。 开机 按下 LF键使机头转动,如果纸走歪,重新进纸,再按下 LF键。 Paper Loading: 1. Open the paper case cover in the direction as shown in above figure; 2. Load the paper roll inside the case, pull out a section of the paper and put it in the paper outlet, and then close the paper case cover;...
  • Page 7 ● 产品维护手册 一、打印机故障分析及排除: 故障现象 可能原因 处理措施 检查打印纸方向是否装反,有药液一面(光滑面)朝 打印内容空白 打印纸装反 向纸仓内 数据线没插好 检查数据连接线是否有松动或连接是否良好 打印内容乱码或不 串口机型:检查串口配置参数(波特率、数据位、停 打印接口数据 串口配置参数不对 止位、校验位和流控制)是否与上位机匹配 打印内容颜色比较 电源电压低 检测打印机供电电源功率是否正常 浅或打印一半 关闭打印机电源,打开纸仓盖检查机头加热板上是否 打印内容缺列或部 有异物或划伤,如有异物,用医用棉签蘸无水酒精清 机头加热板有异物 分内容模糊 洗;划伤请返回厂家检修 关闭打印机电源,检查机头测纸传感器表面是否有异 没纸状态下,机头 测纸传感器有异物 物,如有异物,用医用棉签蘸无水酒精清洗 还一直转动 注:打印机内的电子元件不能随意拆卸或代换,如出现故障现象按照以上方法无法修复,请拨打 售后技术支持电话:400-666-6868 二、打印机使用注意事项和日常保养: 1、使用打印机之前,先将各种线完全插好,检查连接正常后再开机。 注意:串口机型不能带电插拔数据线。 2、必须使用原厂配备电源和连接线,否则打印机将出现异常现象。 3、必须使用符合要求的纸卷(如纸厚度、宽度、打印面比较光滑等),以延长打印机加热板寿命 4、打印机不得在无纸的状态下(没有缺纸报警)打印,否则将严重损害热敏打印头。 5、避免水或导电的物质(例如:金属)进入打印机内部,一旦发生,应立即关闭电源。...
  • Page 8 ● Maintenance Manual A. Printer failure analysis and troubleshooting: Failure Possible reason Measures Print content is The paper is Check if paper roll is reversed loading or not. Ensure the blank reversed loading paper side with liquid coating is facing the paper case. The data cable is Check if the data cable is loose or well connected not plugged in...
