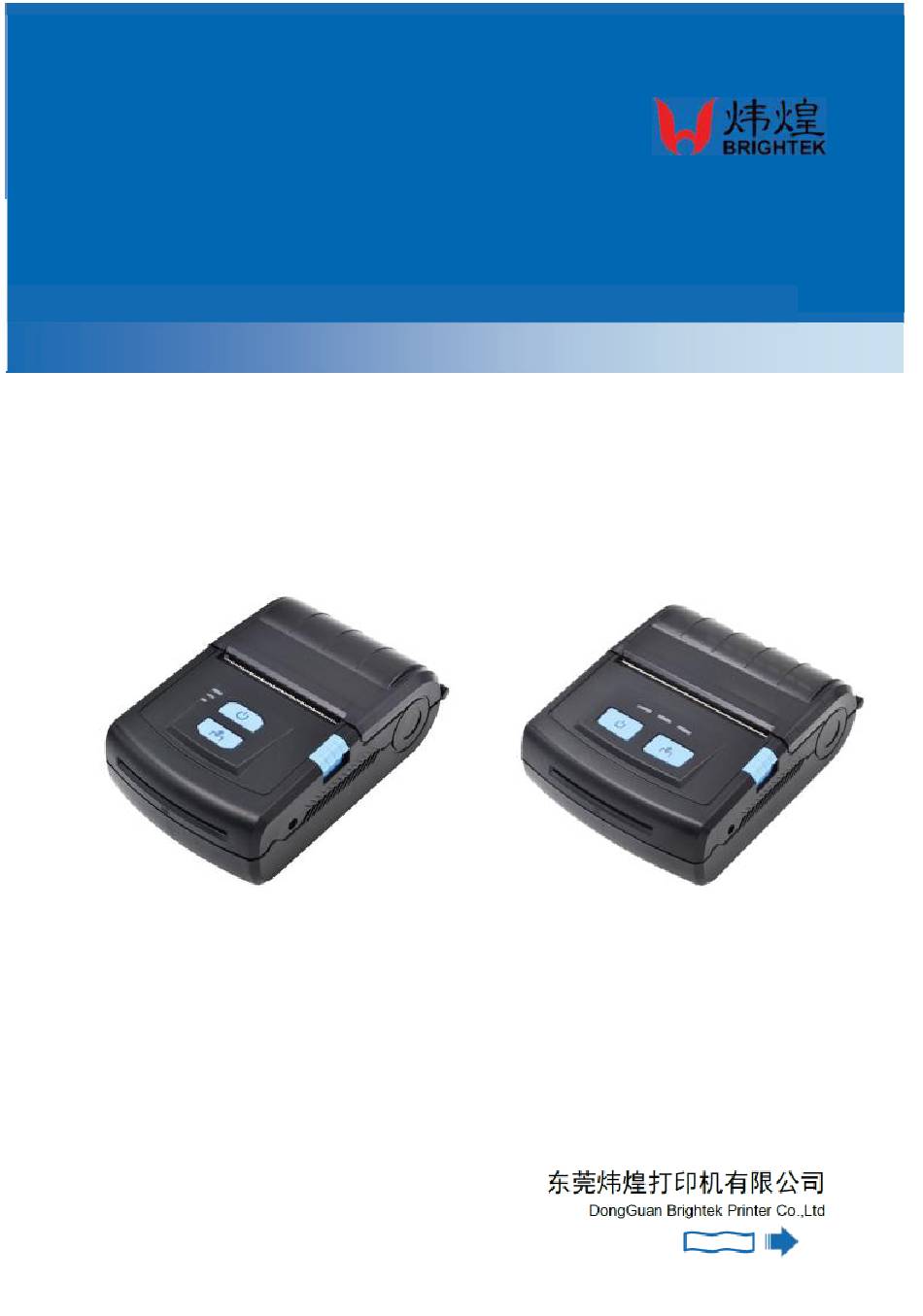

- Page 1 M07 / M08 QUICK INSTALLATION 快速安装...
-
Page 2: Operation
● 打印机各部件一览 Printer Parts Names 按钮开关的操作及指示灯: 开机： 打印机按住电源开关 3 秒钟，电源打开。工作状态指示灯闪亮。少于3秒钟电源不动作。 关机： 在开机状态，按压电源开关3秒钟，电源关闭，工作状态指示灯熄灭。少于3秒钟电源不动作。 自检测方式: 关机状态下按压走纸键（LF)键，然后开机，可以打印自检（自检条显示程序版本、通信配置等打印 机配置信息）。 Operation: Power On: Press and hold the power switch for 3 seconds to turn on the printer. The working status indicator flashes. The power supply will not operate for less than 3 seconds. Power Off: In the power-on state, press and hold the power switch for 3 seconds to turn off the printer. - Page 3 ● 尺寸 Size M07 / M08 型尺寸 Product Size: M07 外型尺寸, M07 Outline Dimension: 124mm X 80mm (W) X 47mm M08 外型尺寸, M08 Outline Dimension: 124mm X 102mm (W) X 47mm 打印纸规格 Paper Size： 纸类型 厚度 宽度 纸卷直径 Paper Type...
- Page 4 ● 安装 Installation 安装方法: 如图推开电池仓盖，将电池下端两个卡位卡入打印机内，并用力将另一端扣入，电池盖推 回即可。 Installation method: Push open the battery case cover as shown in the figure, snap the two latches at the lower end of the battery into the printer and push the other end firmly in. Then close the battery case cover.
- Page 5 Bluetooth connection: (1) Establish a connection: When the device and the printer are successfully connected, the device displays the default name of the printer as “weihuang” or “Brightek Printer", indicating that the connection is successful; (2) Bluetooth password: 0000 Power Connection: The battery level indicators are three indicators that increase in size in sequence.
- Page 6 ● 装纸 Loading Paper Roll 安装步骤: 1. 如图2所示沿着箭头方向翻开活动纸仓盖。 2. 把打印纸装入，并拉出一截(超出一点撕纸牙齿),把纸放整齐,同时注意纸的方向有药 液的一面（光滑面）向下。 3. 合上纸仓盖，打印头走纸轴压齐打印纸后稍用力把打印头走纸轴压回打印头。 4. 开机。按下LF键使机头转动，如果纸走歪，再按下LF键 Paper Loading Procedure: 1. Open the paper case cover in the direction as shown in Figure 2. 2. Load the paper roll inside the case, pull out a section of the paper and put it in the paper outlet, note the direction of the paper with the heat-sensitive chemical surface (smooth side) facing down.
- Page 7 ● 清洁 Cleaning 清洁保养： 打印机使用久了以后，热敏条与切滚轴上会留下一些污垢，如果不及时清理会影响到打 印机的使用与寿命。我们建议您不定期做好清理。 纸仓盖打开后，用棉棒沾少许酒精，轻轻擦拭打印机热敏头，及纸仓上的切刀滚轴 。 Cleaning and Maintenance: After the printer is used for a long time, dirt will be left on the thermal strip and the roller, which will affect the printing quality and service lifespan of the printer. It is recommended to clean up the printer regularly.
- Page 8 ● 产品维护手册 一、打印机故障分析及排除: 故障现象 可能原因 处理措施 检查打印纸方向是否装反，有药液一面（光滑面）朝向纸 打印内容空白 打印纸装反 仓内 数据线没插好 检查数据连接线是否有松动或连接是否良好 打印内容乱码或不打 串口机型：检查串口配置参数（波特率、数据位、停 印接口数据 串口配置参数不对 止位、校验位和流控制）是否与上位机匹配 打印内容颜色比较浅 电源电压低 检测打印机供电电源功率是否正常 或打印一半 关闭打印机电源，打开纸仓盖检查机头加热板上是否有异 打印内容缺列或部分 物或划伤，如有异物，用医用棉签蘸无水酒精清洗；划伤 机头加热板有异物 内容模糊 请返回厂家检修 关闭打印机电源，检查机头测纸传感器表面是否有异物， 没纸状态下，机头还 测纸传感器有异物 如有异物，用医用棉签蘸无水酒精清洗 一直转动 注：打印机内的电子元件不能随意拆卸或代换，如出现故障现象按照以上方法无法修复，请拨打售后技 术支持电话：400-666-6868 二、打印机使用注意事项和日常保养: 1、使用打印机之前，先将各种线完全插好，检查连接正常后再开机。 注意：串口机型不能带电插拔数据线。 2、必须使用原厂配备电源和连接线，否则打印机将出现异常现象。 3、必须使用符合要求的纸卷(如纸厚度、宽度、打印面比较光滑等)，以延长打印机加热板寿命 4、打印机不得在无纸的状态下（没有缺纸报警）打印，否则将严重损害热敏打印头。 5、避免水或导电的物质（例如：金属）进入打印机内部，一旦发生，应立即关闭电源。...
- Page 9 ● Maintenance Manual A. Printer failure analysis and troubleshooting: Failure Possible reason Measures Print content is The paper is Check if paper roll is reversed loading or not. Ensure the blank reversed loading paper side with liquid coating is facing the paper case. The data cable is Check if the data cable is loose or well connected not plugged in...
