UG-1656

INSTALLING THE ARDUINO IDE

Download the latest version of the Arduino software from the
Arduino IDE link located under the Setup section from the
www.analog.com/en/design-center/evaluation-hardware-and-
software/linduino site. For more information on how to install
the Arduino IDE, visit the Arduino home page.
INSTALLING THE LTSKETCHBOOK
To install and set up the LTSketchbook, take the following steps:
1. If using the Linduino hardware for the first time, visit the
Linduino page at www.analog.com/en/design-center/
evaluation-hardware-and-software/linduino.html
instructions on how to install the LTSketchbook.
2. Download the latest Linduino
LTSketchbook.zip, from
engineering-tools/design-tools/LTSketchbook.zip. This zip
file contains the entire code base for the
which includes all demo code, libraries for individual
devices, and auxiliary functions.
3. Extract this zip file (right click the file) to a location for
working files, such as the Documents folder.
4. To change the Arduino IDE settings to use the LTSketchbook,
open the Arduino IDE software and navigate to File >
Preferences, which opens the window shown in Figure 6.

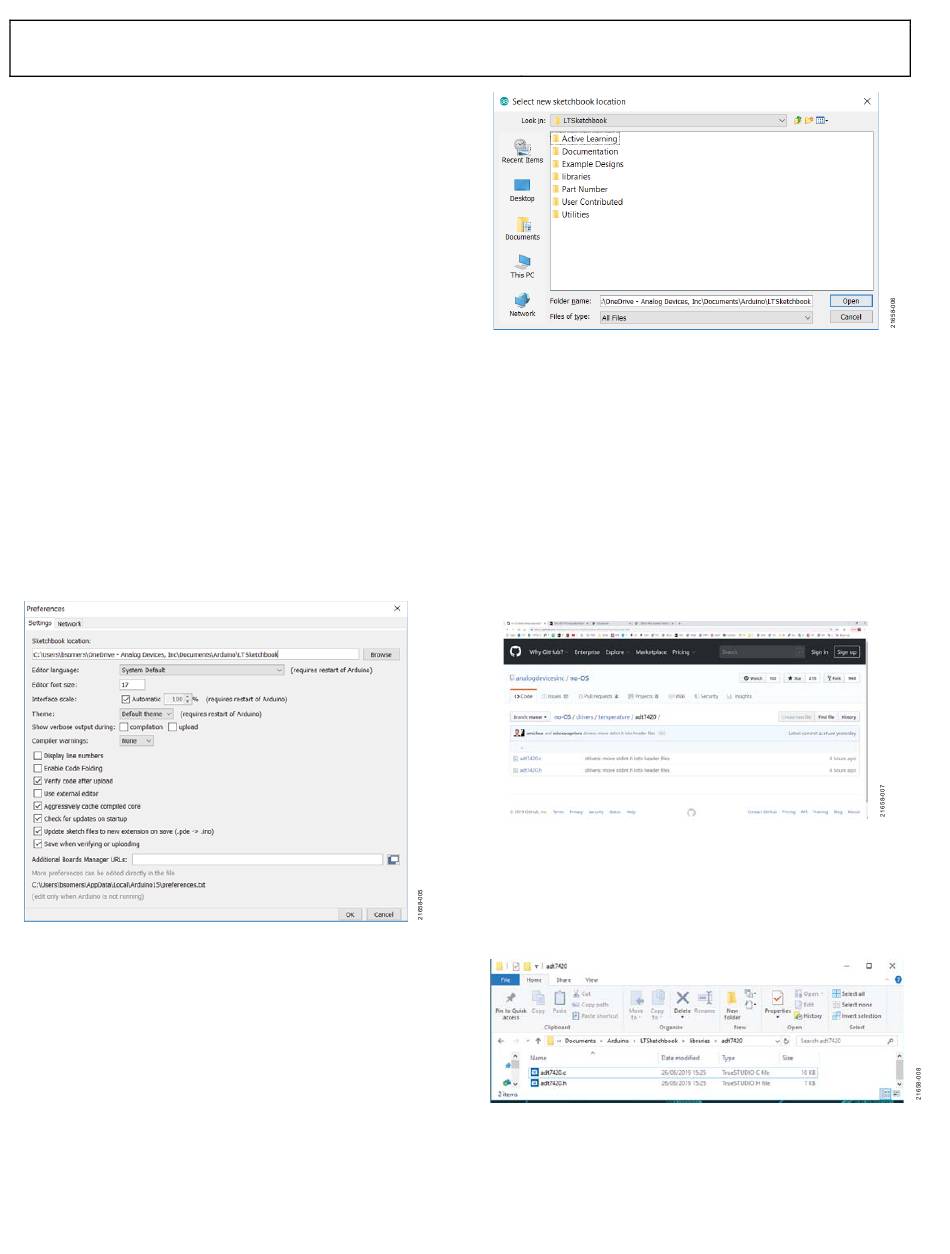

Figure 6. Arduino IDE Preferences Window
5. In the Sketchbook location field shown in Figure 6,
click Browse and locate the path to the extracted
LTSketchbook.zip file. The correct file location is shown in
the LTSketchbook option in the Look in dropdown menu
and the following seven subdirectories are shown: Active
Learning, Documentation, Example Designs, libraries,
Part Number, User Contributed, and Utilities (see Figure 7).
for
sketchbook,
www.analog.com/media/en/
Linduino board,
EV-TEMPSENSE-ARDZ
6. Note that changing the
the built in compiler reads the libraries saved on the default
Arduino/libraries folder. This folder is automatically created
after installing the Arduino.
ADT7420 NO OPERATING SYSTEM (NO-OS) DRIVER
Download the adt720.h and adt7420.c files, required to operate
the No-OS driver, from the Analog Devices, Inc., GitHub
repository, as shown in Figure 8. Go to
analogdevicesinc/no-OS
The No-OS driver path is no-OS/drivers/temperature/adt7420/
(see Figure 8).
In the LTSketchbook/libraries folder automatically created
after Step 3 in the Installing the LTSketchbook section (see
Figure 7), create a new folder and name it adt7420. Copy and
paste the adt7420.h and adt7420.c files into the newly created
adt7420 folder, as shown in Figure 9.
Figure 9. Documents/Arduino/LTSketchbook/libraries/adt7420 Folder
Rev. 0 | Page 4 of 6
Figure 7. LTSketchbook Location
LTSketchbook location affects how
www.github.com/
to download the files.
Figure 8. Analog GitHub Repository
User Guide
