3. Back Panel

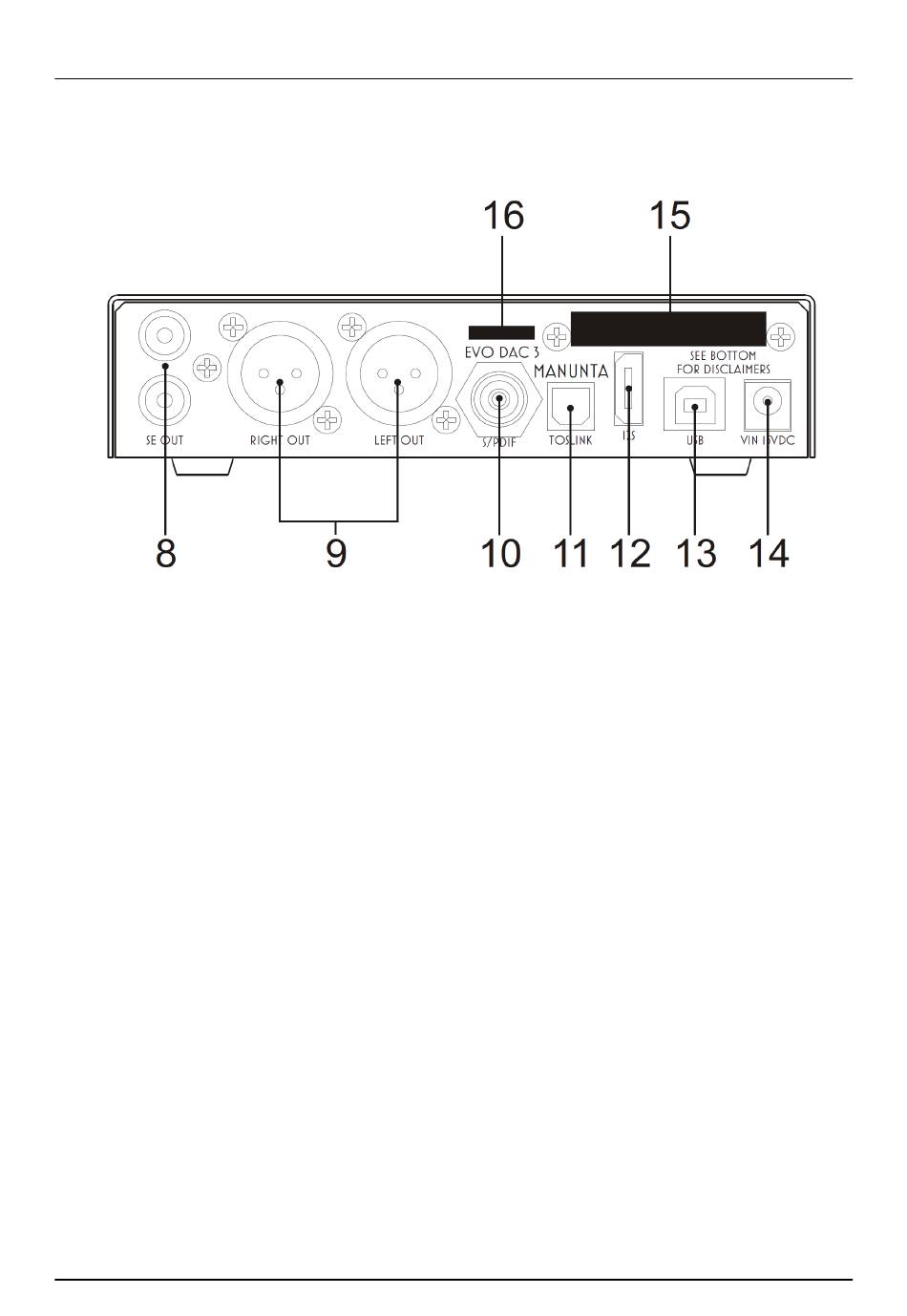

Figure 2
8) Single-ended outputs. Connect the Evo DAC 3 to your amplifier/preamplifier with
single-ended inputs using coaxial cables terminated with RCA connectors. Gold-plated
female RCA sockets.
9) Balanced outputs. Connect the Evo DAC 3 to your amplifier/preamplifier with balanced
inputs using balanced cables terminated with three-pole XLR connectors. Gold-plated
male XLR sockets.
NOTE: Ground on pin 1, send (hot) on pin 2, return (cold) on pin 3. If your amplifier
requires hot on pin 3 and cold on pin 2, the connection will be inverting. In this case
the absolute phase can be obtained by reversing the speakers' cables polarity.
10) S/PDIF digital input. Connect a source provided with 75 Ohms S/PDIF output. Gold-
plated female RCA socket.
11) Toslink™ optical digital input. Connect a source provided with a Toslink™ digital
output. Toslink™ type connector.
12) I
2
S connector. Connect to the PS Audio compliant I
2
S output of a streamer, digital
disc player or other I
2
S digital source using a standard HDMI cable. Female HDMI
connector.
13) USB connector. Connect to the USB 2.0 port of a computer using the stock USB
cable. Type "B" female USB connector.
