3. Back Panel

M2TECH
VAUGHAN
384 H /32bit DAC
K Z
GND HOT (+)
OUTPUTS
COLD (-)
RIGHT
7 8
7) Balanced analog outputs. Connect to a left-right pair of balanced inputs of the
amplifier or preamplifier. XLR male connectors.
8) Single-ended analog outputs. Connect to a left-right pair of single-ended inputs of the
amplifier or preamplifier. RCA female connector.
9) AES/EBU digital inputs. Accepts AES/EBU datastreams in either professional or
consumer format. Can be configured as two stereo inputs or one dual-mono input. XLR
female connector.
10) S/PDIF BNC digital inputs. Accept S/PDIF datastreams. Can be configured as two
stereo inputs or one dual-mono input. True 75 Ohms BNC female connectors
11) S/PDIF RCA digital inputs. Accept S/PDIF datastreams. Can be configured as two
stereo inputs or one dual-mono input. RCA female connectors
TM
12) Toslink optical digital input. Optical input for Toslink
as two stereo inputs or one dual-mono input. Toslink
TM
optical digital input. Optical input for ST
13) ST
stereo inputs or one dual-mono input. ST
2
S input. Accepts I2S audio signals. RJ45 8-pole female connector with M2Tech
14) I
proprietary pinout (see Section 12 on Page 26).
15) External clock input. Accepts both master clocks and word clocks with automatic
detection (see Section 13 on Page 26). True 75 Ohm BNC female connector.
16) USB 2.0 input. Connect to a PC or MacIntosh with an USB 2.0 compliant A-B cable.
USB 2.0 B female connector.
7
AES/EBU
PUSH
B/R
PUSH
A/L
LEFT
8 7 9

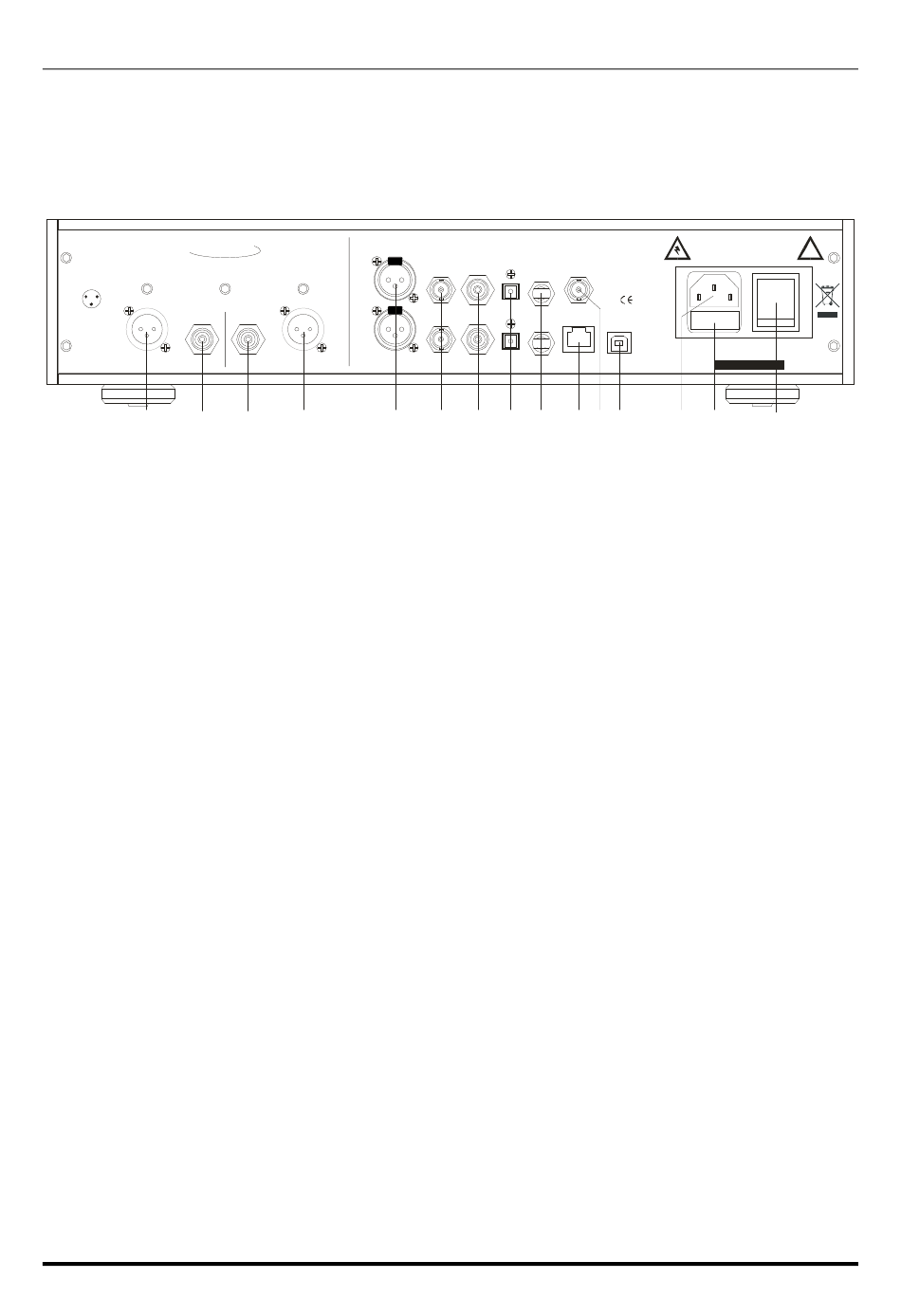

Figure 2
