MANUNTA
EVO DAC 3
BY M2Tech
DIGITAL-TO-ANALOG CONVERTER
www.manunta-audio.com
REVISION P
– JUNE 2022
RB

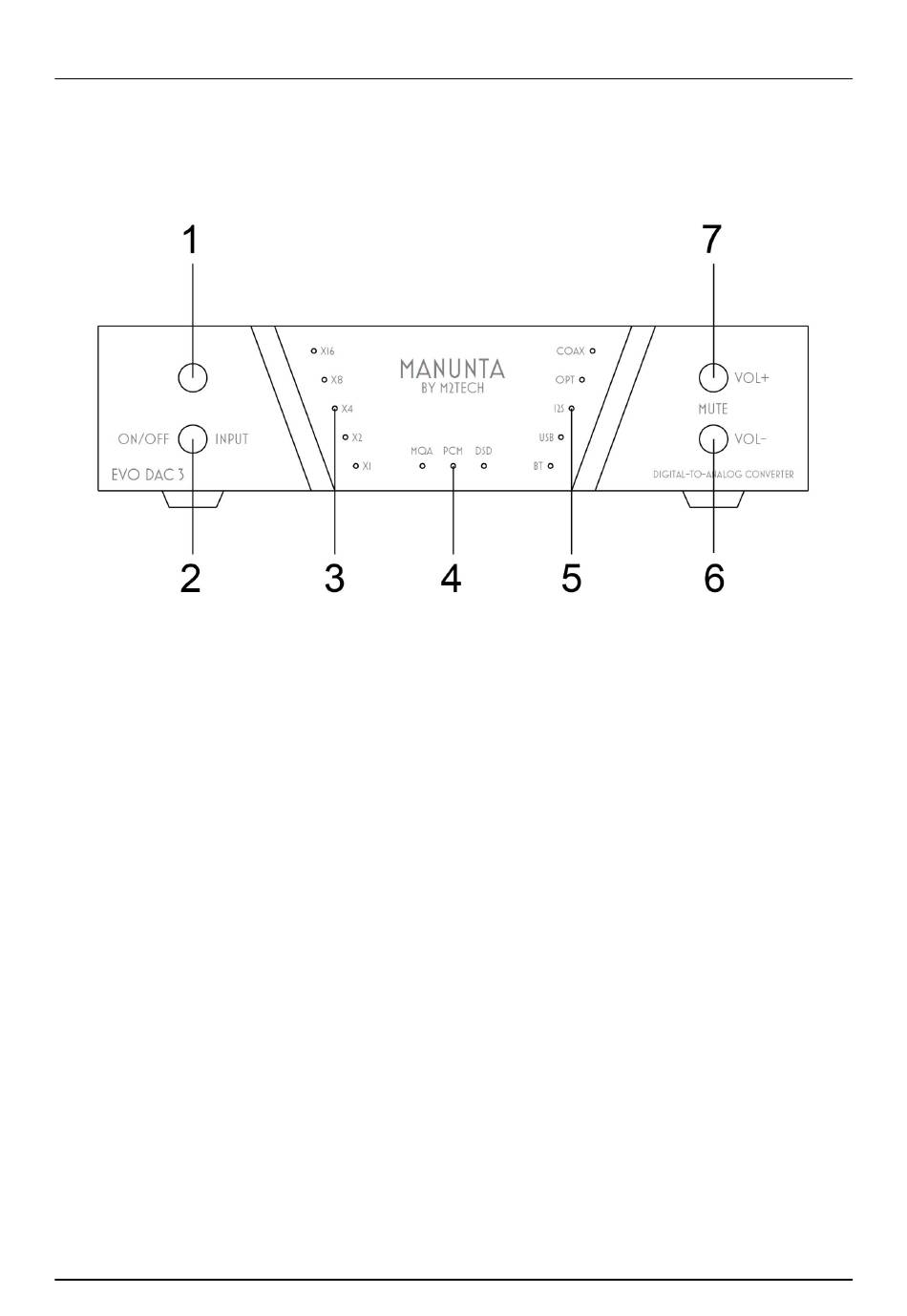

2. Front Panel
Figure 1
1) IR receiver. Aim the remote control to this point to send commands to the Evo DAC 3.
2) Power on/power off/Input select button. Press this button to switch the Evo DAC 3 on
when it's off. When the Evo DAC 3 is on, a short press will change the selected input. A
more prolonged press while the Evo DAC 3 is on will cause it to switch off.
3) Sampling frequency indicator LED's. These LED's indicate the active sampling
frequency. Blue colour indicates that the sampling frequency is a multiple of 48kHz, green
colour indicates that the sampling frequency is a multiple of 44.1kHz. Multiply the base
sampling frequency for the multiply factor aside the lit LED to obtain the sampling
frequency.
4) Format indicator LED's. Indicate the format of the file being reproduced. The MQA
LED is multicolour and indicates various MQA formats according to MQA standard.
5) Input indicator LED's. Indicate the active input.
6-7) Volume up/volume down/mute buttons. Use these buttons to set the output
volume. Push both buttons together to toggle muting.
Copyright © 2022, M2Tech Srl
9
