3. Back Panel

RIGHT IN
GND
4 12
4) Right channel analog input. Connect to right channel of the analog source output.
RCA female connector.
5) Left channel analog input. Connect to left channel of the analog source output. RCA
female connector.
6) AES/EBU digital output. Generate AES/EBU data streams in consumer format. XLR
male connector.
7) S/PDIF digital output. Generate S/PDIF data streams. RCA female connector.
8) S/PDIF digital input. Accept S/PDIF data streams. RCA female connector.
TM
9) Toslink optical digital output. Optical output for Toslink
connector.
10) USB 2.0 output. Connect to a PC with Windows or Linux or MacIntosh with an USB
2.0 compliant A-B cable. USB 2.0 B female connector.
11) Power supply input. Connect the wall adaptor provided with the unit or any other
power supply capable of 15V/500mA. 5.5mm/2.1mm supply jack (female, tip is positive).
12) Ground (chassis) post. When necessary, connect this post to the chassis wire from
the source, to reduce hum and noise pickup.
8
AES/EBU OUT
LEFT IN
S/N:
5 6
M2TECH
384 H 32BIT ANALOG-TO-DIGITAL CONVERTER
TOSLINK OUT
S/PDIF OUT S/PDIF IN
7 8

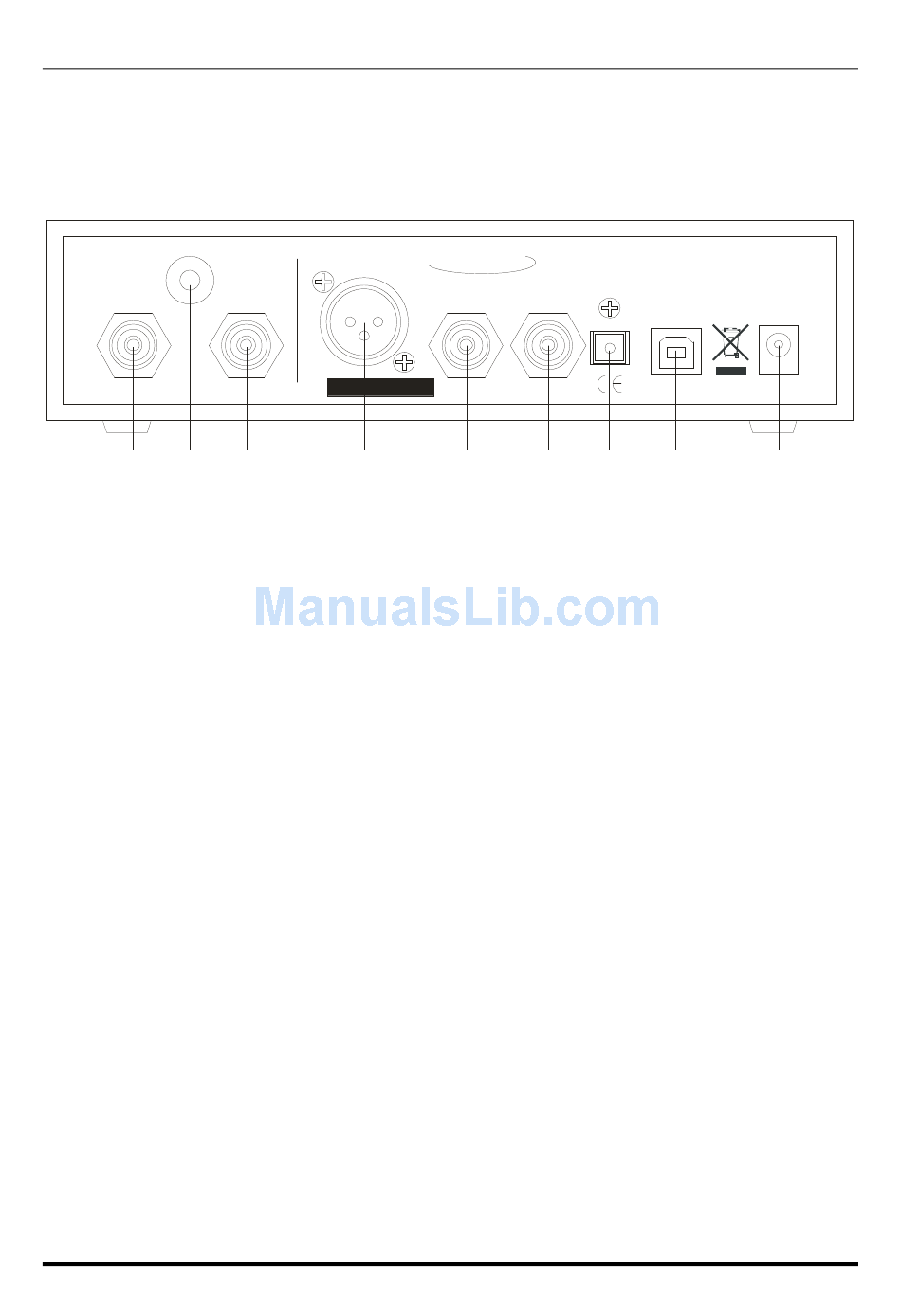

Figure 2
