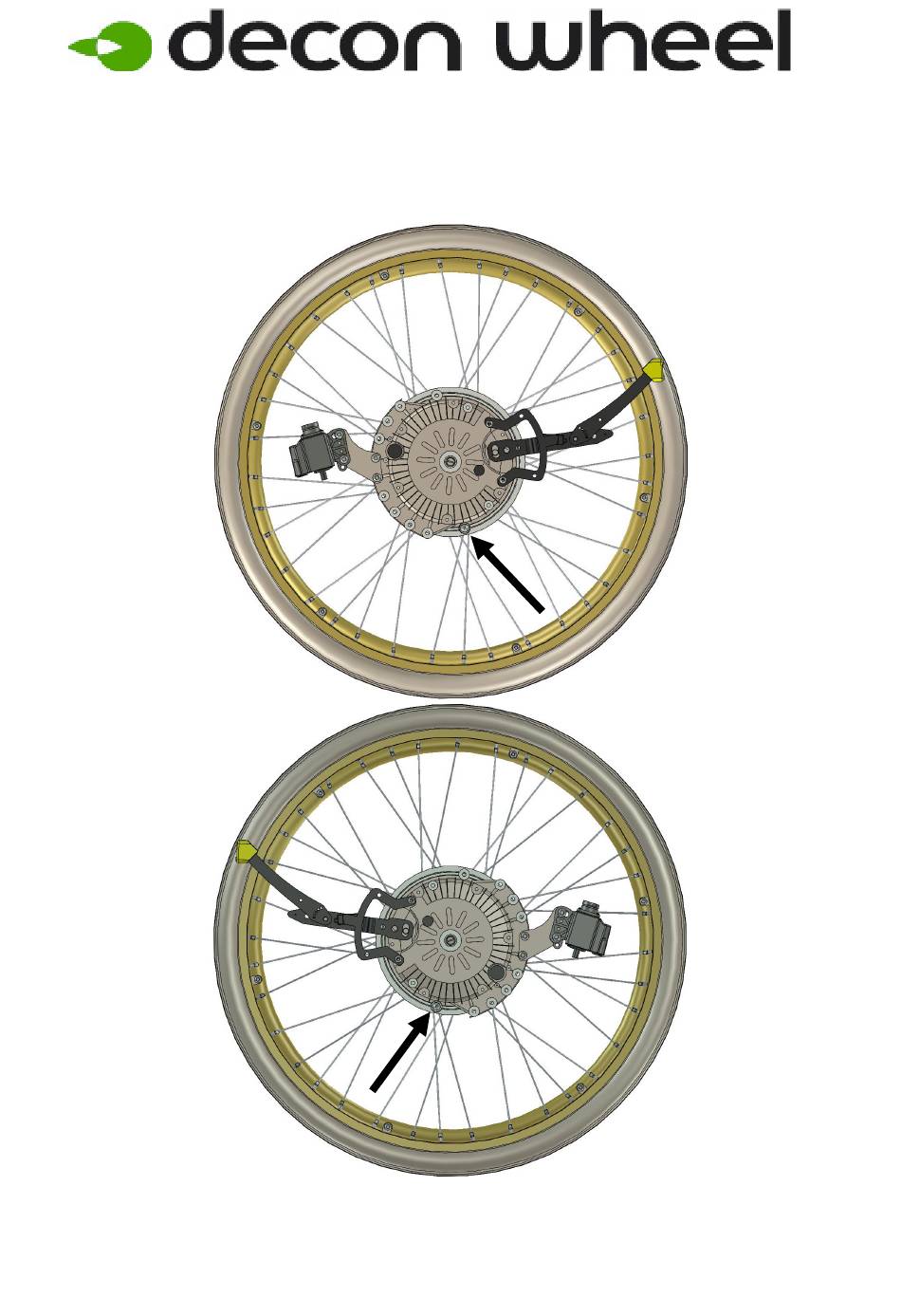

- Page 1 Assembly instructions for Sorg Loop Only 20” wheels MED3186 1. Remove wheels and hubsleevers on both sides. 2. Check the correct placement for the stop pin, and check that the battery box is removed. 2019-04-10...
- Page 2 3. Assembly the plate (right side) according to pictures. Parts pair mounting set for one side: ITEM PART NUMBER DESCRIPTION 100 400 008 Spacer 100 400 001 Spacer 100 400 016 Spacer MED2000 Bracket 405241 Nordlock Washer M18 HW084 Sleeve XSM18M Nut M18 low XSM8ML...
- Page 3 MED1209 Assembly instructions for Joystick as an Attendant control Item No. Part Number Description MED1317 Bracket XSM6X25 Screw M6 x 25 XSM6BR Plain Washer M6 XSM6LM Locknut M6 XSM6X20 Screw M6 x 20 MED1316 Plate with pin 8500-1042-01 Clamp dia. 20mm 100 400 039 Spacer 2019-04-10...
- Page 4 MED1210 Assembly instructions for Attendant control Item No. Part Number Description XSM6BRTG Thorn Washer M6 XSM6X20 Screw Round M6 x 20 8500-1042-01 Clamp dia. 20mm 2019-04-10...
- Page 5 2019-04-10...
