Section 2 - Installation; Boiler Assembly - Exploded View - Ideal Heating LOGIC MAX SYSTEM2 S15 Installation & Servicing

2.1

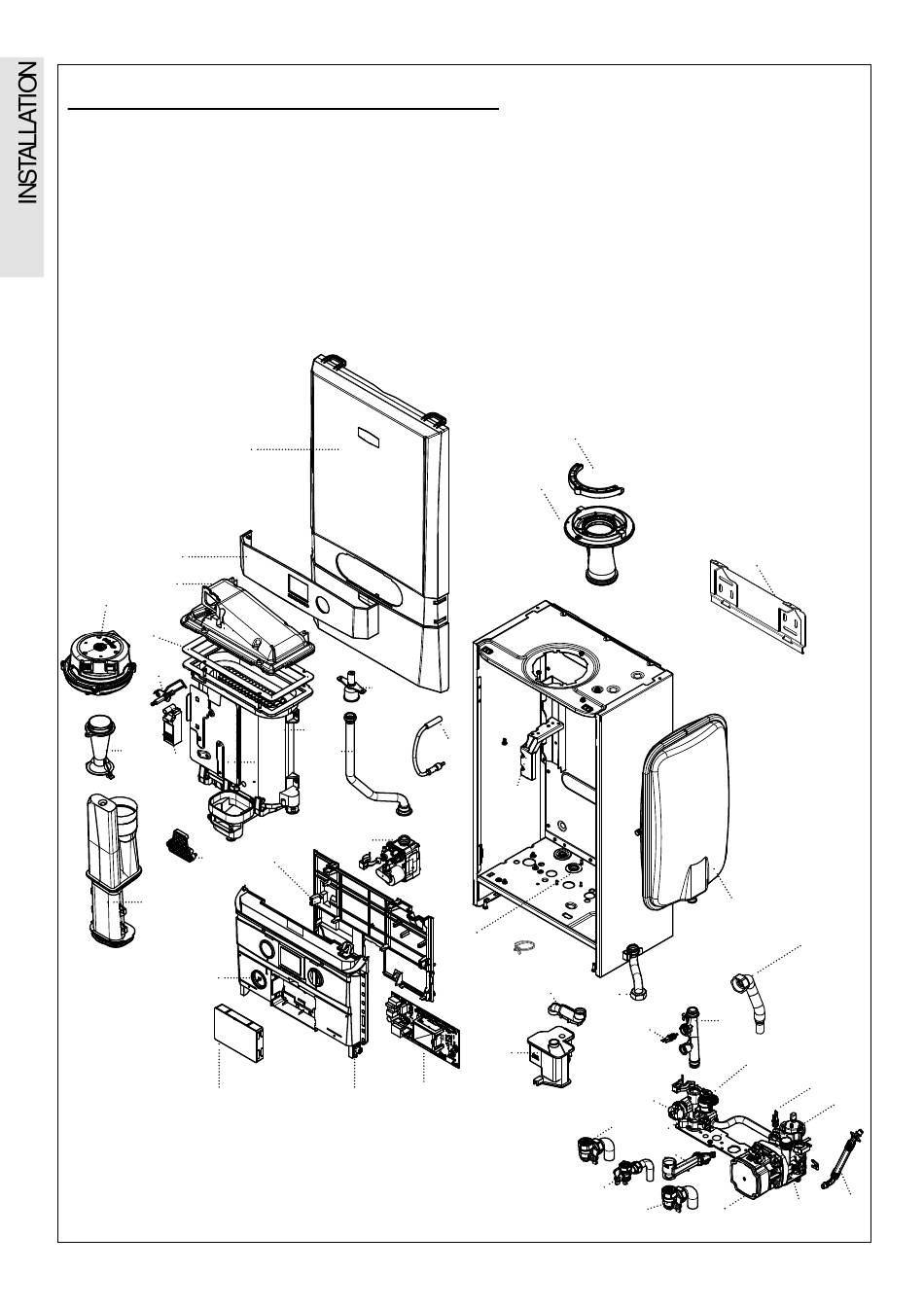

BOILER ASSEMBLY - EXPLODED VIEW

104 CH Return Valve
105 CH Flow Valve
108 Pump Head
110 Auto Air Vent
Pressure Relief Valve
113
114 Pipe - PRV Outlet
115 Pipe - Flow
116 Pipe - Return
117 Pipe - Expansion Vessel
118 Expansion Vessel
Return Group Manifold
119
Flow Group Manifold
120
505
217
215
218
306
214
308
223
135
2
1 3
0 4
bar
14

Section 2 - Installation

131 Water Pressure Switch
135 Pressure Gauge
203 Gas Cock
205 Gas Valve
Pipe - Gas Injector
206
Injector Assy
211
214 Venturi
215 Fan
217 Burner
218 Gasket - Burner
219 Sump Clean Out Cover
Flue Manifold
223
504
211
401
206
506
205
324
219
326 325
Flue Manifold Top
224
227 Clamp Retaining Flue Turret
228 Hose Condensate Internal
229 Condensate Trap
231 Condensate Outlet Connection
239 Condensate Drain Tube
302 PCB
306 Ignition/Detection Electrode
308 Ignitor Unit
309 Thermistor
313 Ignition Lead
324 Control Box Lid
