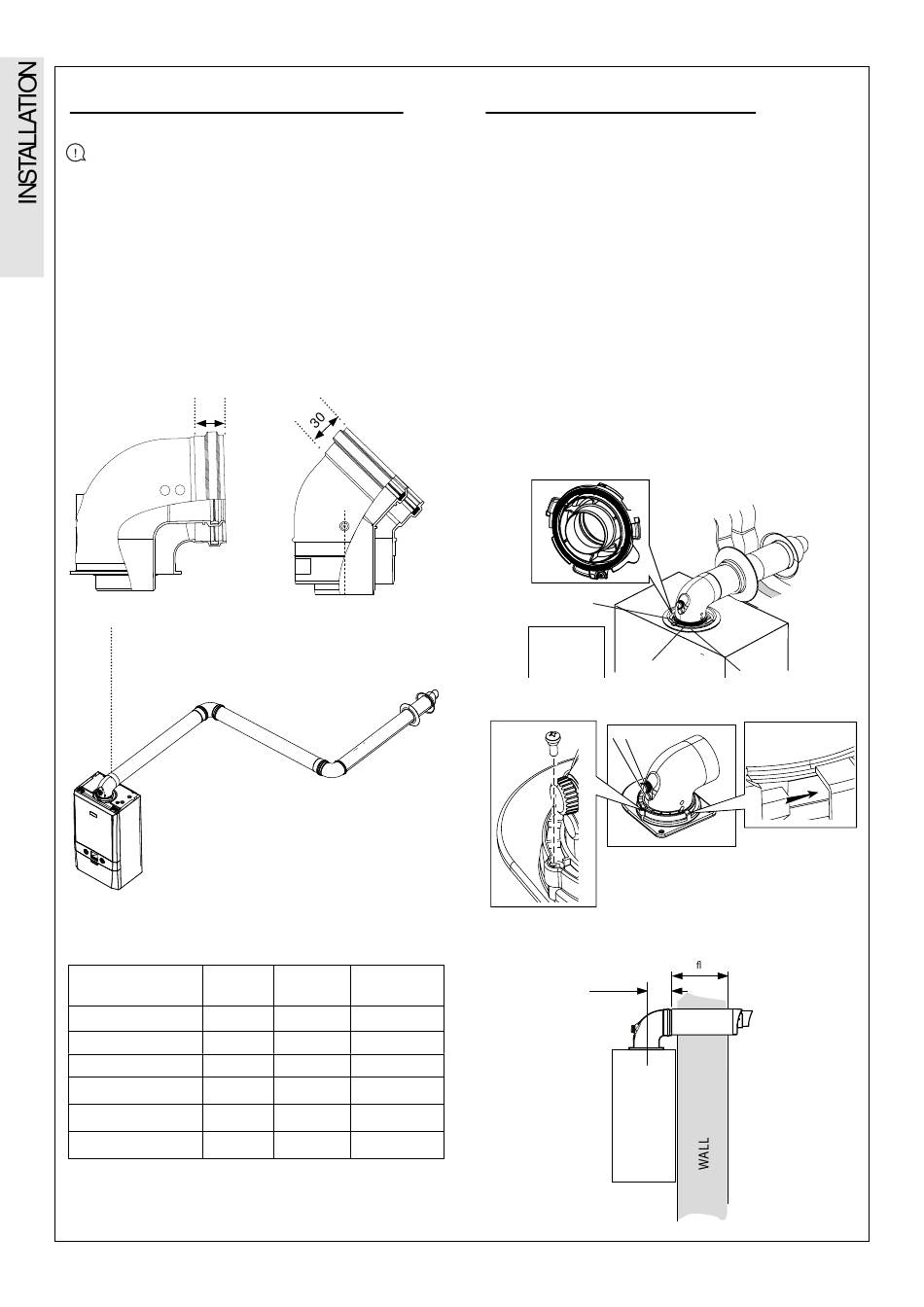

2.11 FLUE SYSTEM DIMENSIONS

Flue Design
IMPORTANT:
1. Flue lengths may vary, always measure flue lengths
before cutting.
2. Effective flue length and actual flue length are different
measurements.
3. Effective flue length is made up of the flue length
equivalence and the flue sections between the turret,
elbows and terminal.
4. Actual flue length is the amount of flue needed to achieve
the effective flue length, this includes insertions.
Turret insertion (mm)
Part
1 m flue length
90° elbow
1 m flue length
90° elbow
0.6 m flue terminal
Total
20
Section 2 - Installation
30
Elbow insertion (mm)
Effective
Actual Insertion
Length Length
1000 mm 30 mm 970 mm
n/a 1000 mm
1000 mm 30 mm 970 mm
n/a 1000 mm
600 mm 30 mm 570 mm
4.510 mm

2.12 FITTING THE TURRET

1. Ensure the condensate trap in filled with water
2. Ensure the rubber seal is not damaged and fitted
correctly on the appliance manifold.
3. Firmly hold the flue and push the turret on until it has
travelled 30 mm ensuring the flue has not rotated or
moved forward.
4. Push the turret into the manifold ensuring the upper
plastic lip is flush with the top of the manifold.
5. Fully engage the clamp location section into the manifold
location hole and rotate down onto the flange.
6. Use the securing screws to secure the clamp to the
appliance.
7. Ensure all sample points are accessible and all sample
plugs and caps are fitted.
D
Flue Outlet
A - Duct Assembly
B - Flue Turret
C - Turret Clamp
D - Seal
Flue Outlet
Retaining
Sample points
screw
to outside face of wall plus
100mm
A
B
C
Clamp Lugs
Edge of turret
44mm = ue length
A
