2.7

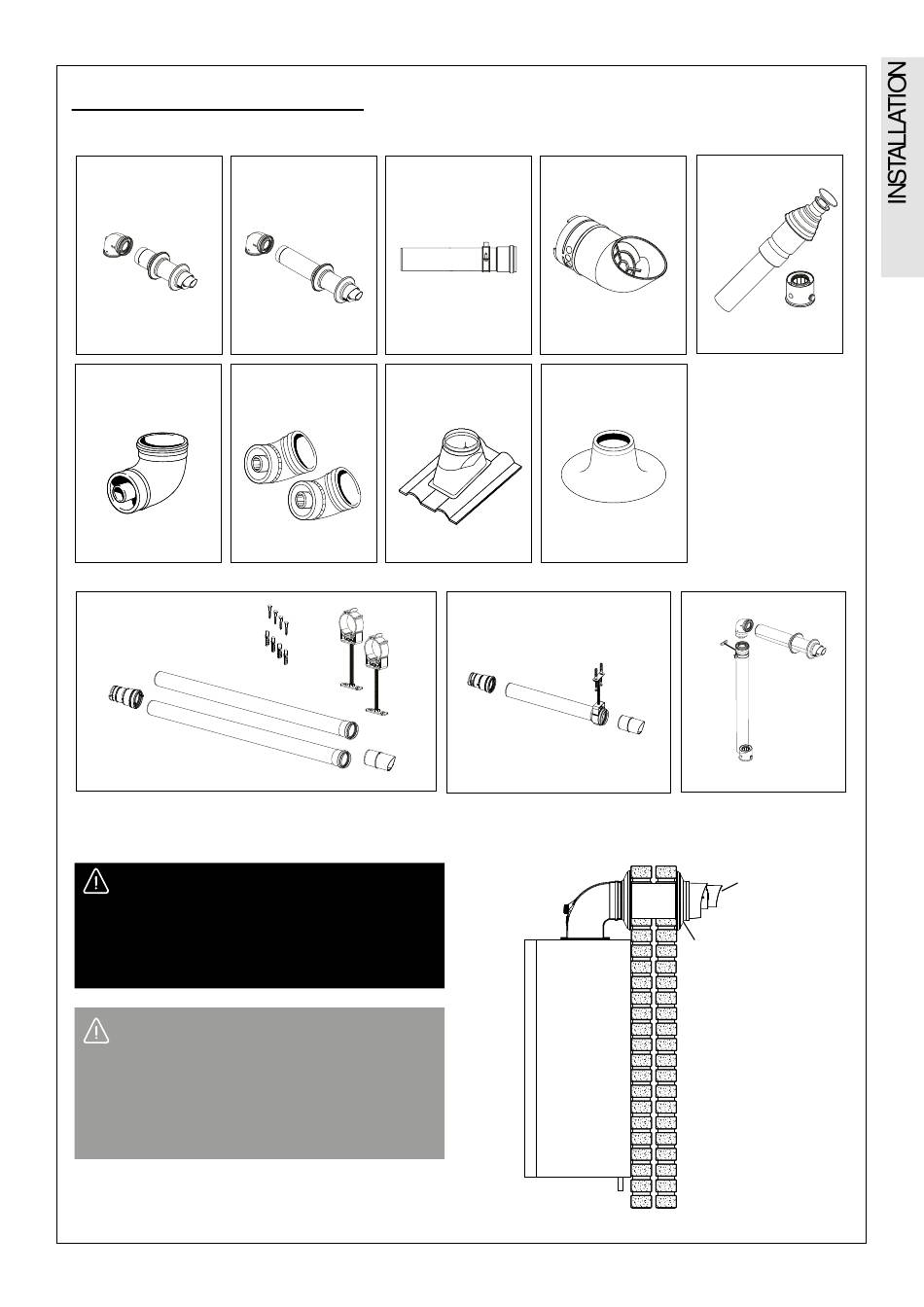

FLUES AND LOCATIONS

This installation & servicing manual must be read in conjunction with flue kit and fitting guide.
Telescopic
horizontal flue
0.5 or 0.7 m
Ideal part no.
0.5 m 208169
0.7 m 208174
Flue elbow 90°
Ideal part no.
203130
Balcony flue kit
Ideal part no. 208177
WARNING:
• It is critical that products of combustion cannot re-enter
the building.
• The flue terminal must always have a free passage of
air.
CAUTION:
• White sections of the flue must not be visible outside.
• Install a flue terminal guard where the flue terminal is less
than 2 metres above a platform where persons can walk
or come into contact with the terminal.
• Water is the only permitted lubricant for flue assembly.
Installation and Servicing
Section 2 - Installation
Horizontal flue Flue extension
0.6 or 0.8 m
0.5 m, 1 m or 2 m
Ideal part no.
0.6 m 208171
0.8 m 217442
Flue elbow 45° Weather collar
pitched roof
Ideal part no.
203131
Flue deflector
Ideal part no.
0.5 m 211037
Ideal part no.
1 m 203129
2 m 211038
Weather collar
flat roof
Ideal part no.
Ideal part no.
152258
Soffit kit
Ideal part no. 211302
Vertical flue
terminal and
connector
Ideal part no.
211039
208176
152259
Raised horizontal flue kit
Ideal part no. 208290
Terminal
MUST be
fitted as
shown
Rubber
Terminal
Wall Seal
