2.2

UNPACKING

The boiler is supplied fully assembled in Pack A.
A telescopic or non-telescopic flue assembly for
rear or side flue outlet in Pack B is suppled as a
separate order.

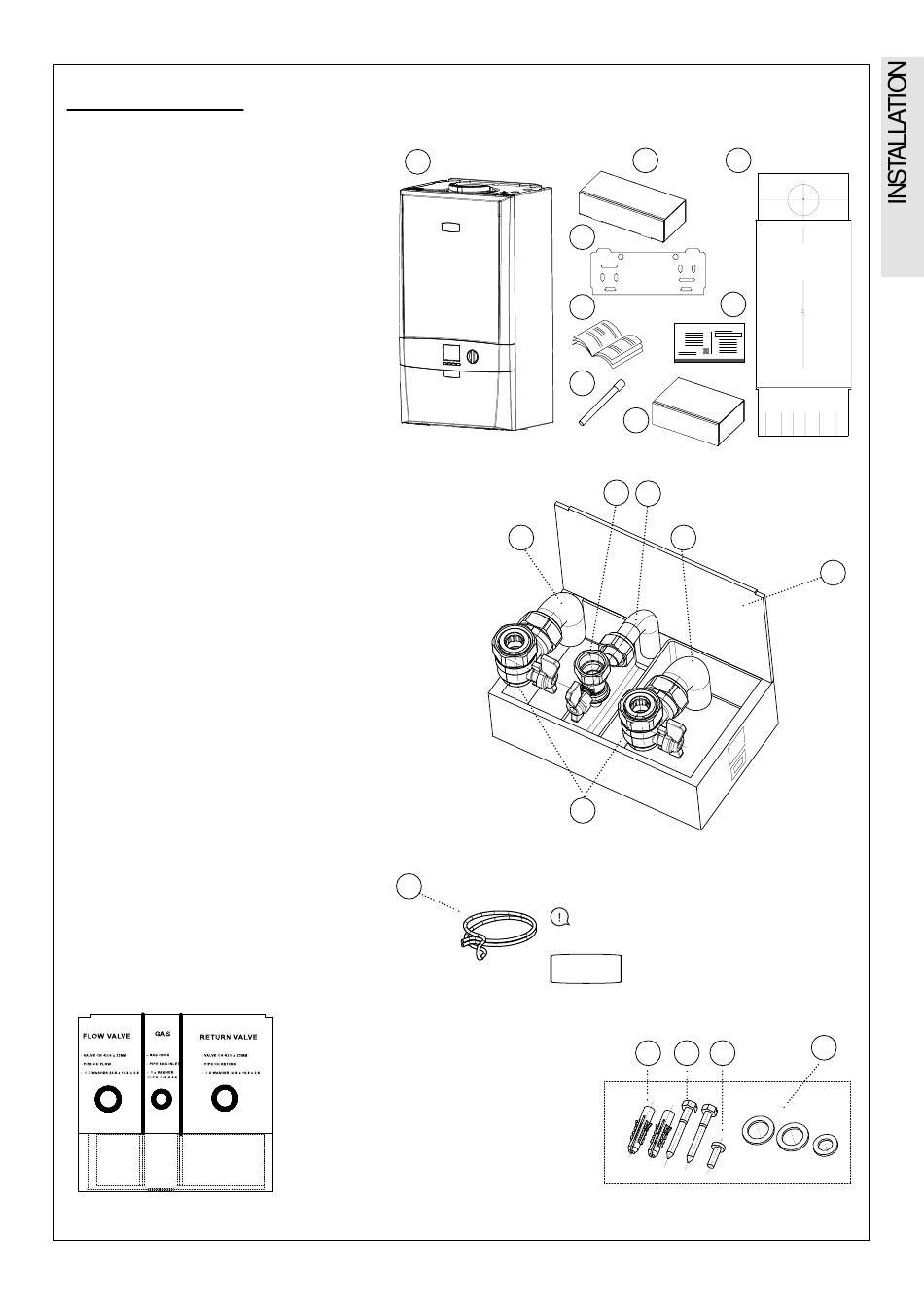

Pack A Contents
1.
Boiler
2.
Hardware Pack Box
3.
Wall Mounting Plate
4.
These Installation/Users Instructions
5.
Wall Mounting Template
6.
Boiler Warranty
7.
PRV Drain Pipe
8.
Ideal System Filter
Hardware Pack
Box Contents
9.
1x HP Box - 180 x 111 x 57.5 mm
10. 2x
Pipe CH Flow/Return
11. 1x
Gas Cock
12. 2x
Valve CH G 3 / x 22 mm
4
13. 1x
Pipe Gas Inlet
14. 1x
PRV Clip
Accessory Bag Contents
15. 3x
Washers*
16. 2x
Wall Plugs
17. 2x
Screws
18. 1x
Flue Clamp Screw
*Refer to Valve Washer Template inside box lid.
Installation and Servicing
Section 2 - Installation
1
10
14
Unpack and check the contents
2
3
4
7
8
11
13
10
12
This clip needs to be fitted
IMPORTANT
to ensure correct operation of the boiler.
Refer to Section
2.17
16 17 18
5
6
9
15
15
