Altronix TROVE T2SSK78 Installation Manual page 8

2.00" (50.8mm)
1.25"
(31.8mm)
1.5"
(38.1mm)
6.25" (158.8mm)
1.25" (31.8mm)
1.00" (25.4mm)
2.00" (50.8mm)
Altronix is not responsible for any typographical errors.
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056
web site: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty
IITrove SS ULXB Kits
- 8 -

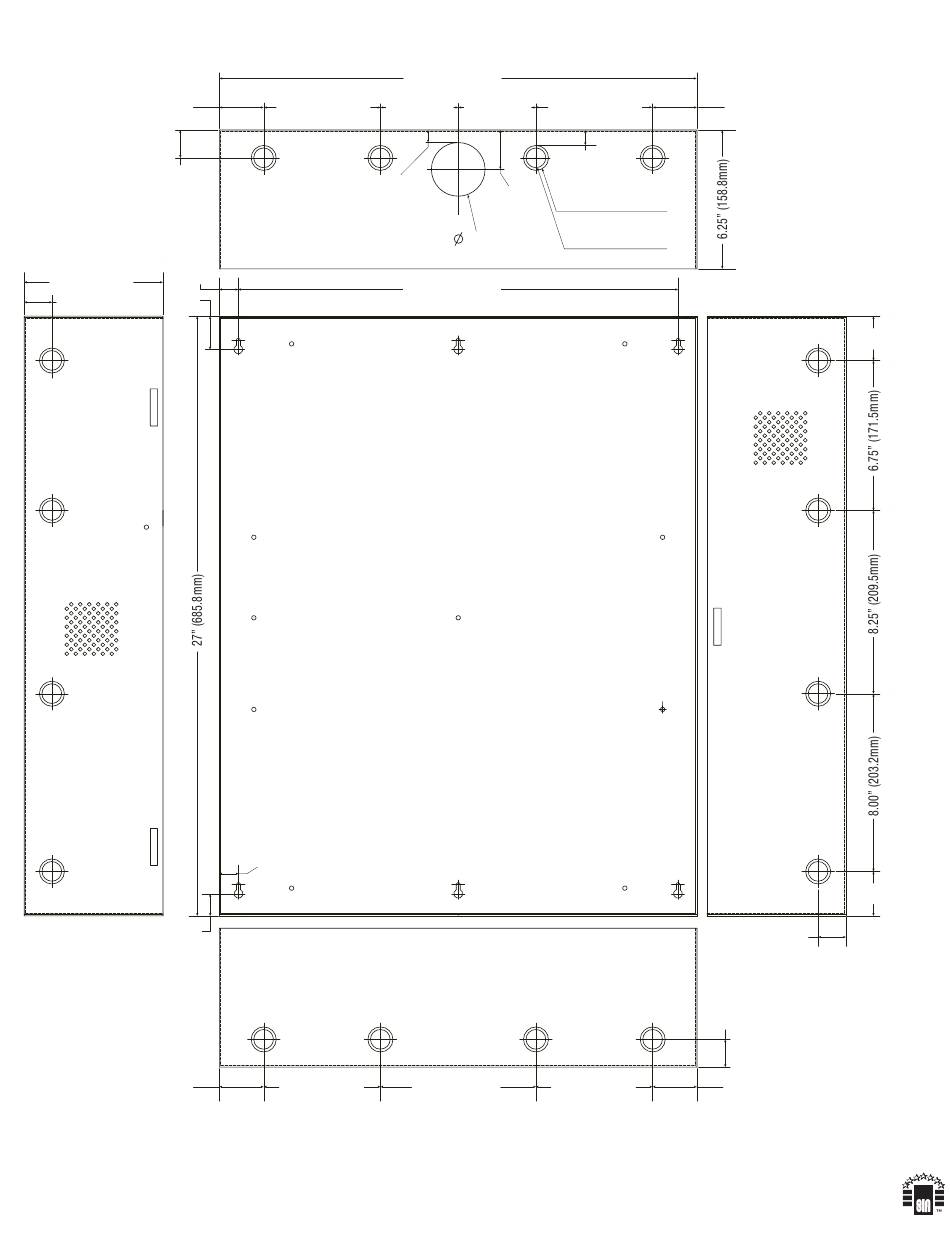

Enclosure Dimensions (H x W x D):
27.25" x 21.75" x 6.5" (692.2mm x 552.5mm x 165.1mm)
21.50" (546.1mm)
5.25" (133.35mm) 3.5"(88.9mm) 3.5"(88.9mm)
0.5625" (14.3mm)
19.80" (502.9mm)
0.85" (21.6mm)
5.25" (133.4mm) 7.00" (177.8mm)
5.25" (133.35mm)
0.685" (17.4mm)
Knockouts
1.77"
1.125" (28.3mm)
(45mm)
2.415" (61.3mm) 0.885" (22.5mm)
5.25" (133.4mm)
L29U
2.00" (50.8mm)
2.00" (50.8mm)
2.00" (50.8mm)
1.25" (31.8mm)
1.25" (31.8mm)
2.00" (50.8mm)
