LXE HX3 User Manual

Wearable computer
Hide thumbs Also See for HX3:
Table of Contents

Advertisement

Quick Links

Download this manual
HX3 User Guide
LXE
|
FLEX
|
Wearable Computer
E-EQ-HX3OGWW-H
Copyright © 2011 by LXE®, Inc. LXE is now part of Honeywell. All Rights Reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HX3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LXE HX3

Summary of Contents for LXE HX3

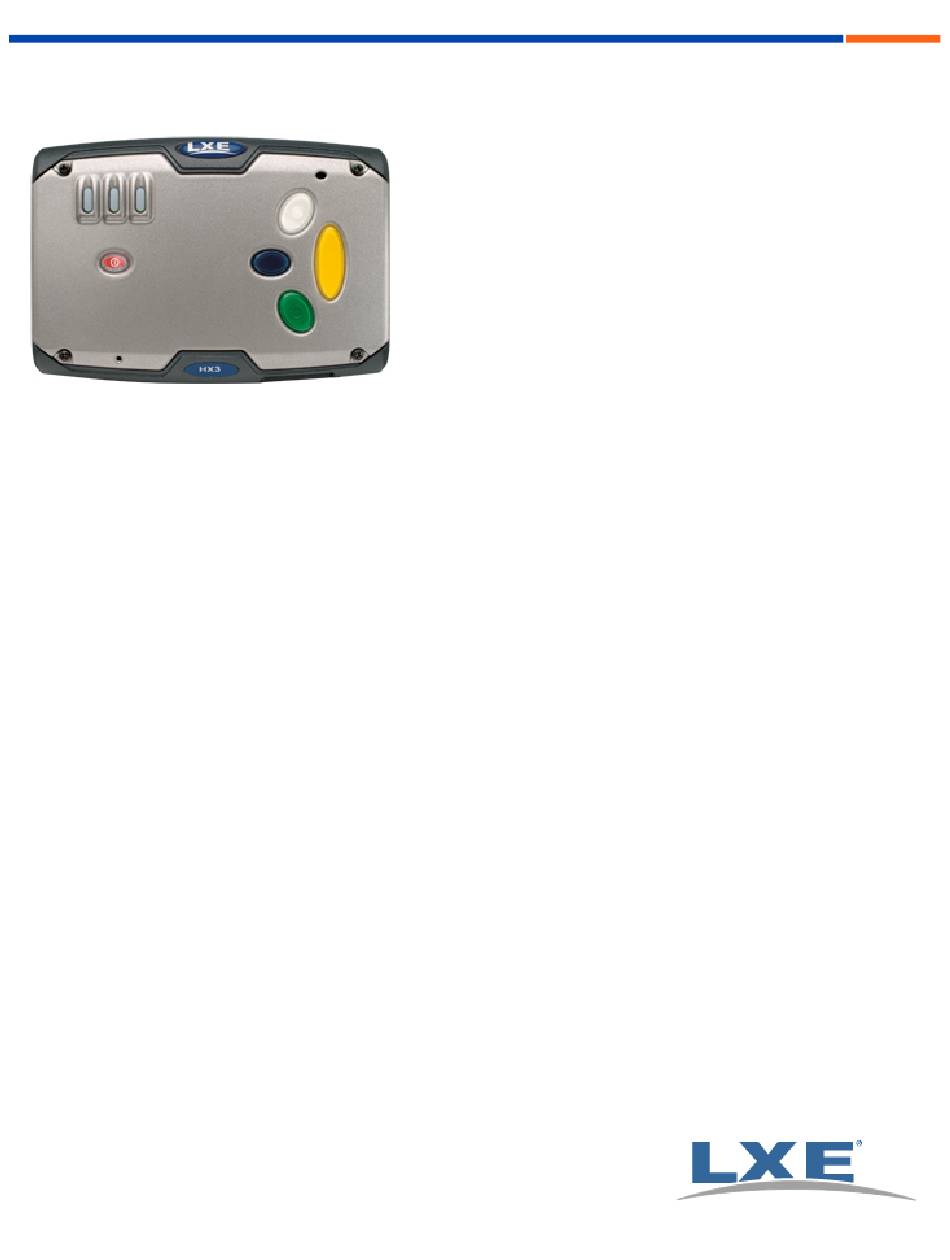

  • Page 1 HX3 User Guide FLEX Wearable Computer E-EQ-HX3OGWW-H Copyright © 2011 by LXE®, Inc. LXE is now part of Honeywell. All Rights Reserved.
  • Page 2 Summit Data Communications, Inc. Summit Data Communications, the Summit logo, and “The Pinnacle of Performance” are trademarks of Summit Data Communications, Inc. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by LXE, Inc. is under license.

  • Page 3: Table Of Contents

    Set Date and Time Zone Using the Input Panel / Virtual Keyboard Set Speaker Volume Using the Keypad Using the Control Panel Connecting Bluetooth Devices Taskbar Connection Indicator LED Connection Indicator Reboot Warm Boot Troubleshooting E-EQ-HX3OGWW-H [ i  ] HX3 User Guide...
  • Page 4 Table of Contents Continuous Scan Mode Regulatory Notices and Safety Information Class B Digital Device RF Notices Laser Light Safety Statement Important Safety Warnings - Desktop Cradle HX3 User Guide Revision History Index E-EQ-HX3OGWW-H [ ii  ] HX3 User Guide...

  • Page 5: Set Up A New Hx3

    5. Set the LXE Scanner Wedge parameters Note: Although the HX3 has no display or alphanumeric keypad, HX3 operating system screens can be viewed and parameters manipulated using LXEConnect and ActiveSync on a connected desktop/laptop computer. E-EQ-HX3OGWW-H [ 1  ] HX3 User Guide...

  • Page 6: Laser Warnings And Labels

    Do not look into the laser’s lens. Do not stare directly into the laser beam. Do not remove the laser caution labels from the HX3. Do not connect the laser barcode aperture to any other device. The laser barcode aperture is certified for use with the HX3 only.

  • Page 7: Components

    3. System Status LED (Green or Red) 4. Speaker 5. White Button (Up Arrow) 6. Yellow Button (Enter) 7. Green Button (Down Arrow) 8. Cradle Connector 9. Blue Modifier Key 10. Microphone 11. Power Button E-EQ-HX3OGWW-H [ 3  ] HX3 User Guide...

  • Page 8: Back

    4. Ring Scanner cable connector 5. Retaining Clip for Tethered Battery Connector 5. Retaining Clip for Ring Scanner Tether Connector 6. Tethered Battery Cable channel 6. Ring Scanner Tether cable channel 7. Cradle Connector 7. Cradle Connector E-EQ-HX3OGWW-H [ 4  ] HX3 User Guide...

  • Page 9: Connectors

    Tethered Battery Cradle Connection Connector 3 is at the base of the HX3. It connects to the Cradle. When the HX3 is in a powered cradle, the HX3 receives external power through the Cradle connector. USB Keyboard or USB Mouse input is received through the Cradle connector when the HX3 is in the HX3cradle.

  • Page 10: Ring Scanner And Ring Imager

    The trigger module and ring strap module are user replaceable. 1. Scan Window 2. Trigger 3. Ring Strap 4. Connector Laser Scanner 1. Illumination LEDs 2. Scan Window 3. Trigger 4. Ring Strap 5. Connector Laser Imager E-EQ-HX3OGWW-H [ 6  ] HX3 User Guide...

  • Page 11: Cables

    Ring Scanner and Ring Imager Extended Cable Clips are used to secure the cable to clothing. Wristband is used to secure the cable to the user's wrist. Audio Connector and Battery Connection Cable E-EQ-HX3OGWW-H [ 7  ] HX3 User Guide...

  • Page 12: Li-Ion Battery

    Li-Ion Battery Li-Ion Battery Main battery charging is handled exclusively by the HX3 Multi-Charger/analyzer and the battery charger integrated into the HX3powered cradle. The Standard battery is much thinner than the Extended battery. Each battery will fit in the battery sleeve on an armband and the voice case.

  • Page 13: Quick Start - Assembly

    Quick Start - Assembly Quick Start - Assembly 1. Headset 2. To Battery 3. Audio Cable 4. To Headset Cable 5. Headset Cable 6. To HX3 7. Battery E-EQ-HX3OGWW-H [ 9  ] HX3 User Guide...

  • Page 14: Voice Case Assembly

    The voice case is a sturdy, lightweight covering for the HX3, tethered battery, and voice accessories. The voice case cannot protect the HX3 from destructive, excessive force or a harsh or wet environment. It is designed to protect the HX3 from dirt, dampness, and minor, trivial bumps.
  • Page 15 If the voice case is damaged, it should be removed from service. An HX3 with a voice case does not fit in the HX2 cradle. Remove the voice case before placing the HX3 in the cradle. 1. Standard Battery Placement 2.

  • Page 16: Connect The Ring And Battery Cables

    When you want to switch connectors from left to right, or vice versa, first gently press downward on the Retaining Clip, then pinch and pull the cable connector (not the cable!) straight up and away from the HX3. Do not use a metal object, or extreme force, to remove the cable connector from the HX3.

  • Page 17: Attach Ring To Finger

    Note: Do not touch, push against or brace your finger on the scan aperture at any time. 1. Slide finger into opened loop 2. Remove shipping film on scan aperture before first scan 3. Tighten the finger loop strap 4. Ring on Left Hand 5. Ring on Right Hand E-EQ-HX3OGWW-H [ 13  ] HX3 User Guide...

  • Page 18: Backlights And Indicators

    Steady Red battery fails, the HX3 is turned Off. Blinking Green The HX3 is On and attached to either a battery with a good charge or to an external power source. Steady Green The HX3 is booting up. HX3 is Off (both batteries depleted) or the HX3 is in Suspend mode...

  • Page 19: Connecting The Headset Cable

    2. Headphones 3. Microphone Connect the HX3 voice cable I/O connector to the I/O port on the HX3. The HX3 internal microphone and speaker are automatically disabled. Slide the voice cable ends together until they click shut. Do not twist or bend the connectors.

  • Page 20: Adjust Headset / Microphone And Secure Cable

    The headset consists of an earpiece, a microphone, a clothing clip and a cable. The headset attaches to the audio cable end of the voice cable which attaches to the HX3. Align the audio connector and the headset quick connect cable end. Firmly push the cable ends together until they click and lock in place.

  • Page 21: Set Date And Time Zone

    Tap Start | Settings | Control Panel | Date/Time icon Set Date, Time, Time Zone, and assign a Daylight Savings location on the HX3 after a warm boot or anytime. There is very little functional change from standard desktop PC Date/Time Properties options. Adjust the settings and tap the OK button or the Apply button to save changes to the registry.

  • Page 22: Set Speaker Volume

    You can also select / deselect sounds for key clicks and screen taps and whether each is loud or soft. As the volume scrollbar is moved between Loud and Soft, the HX3 emits a tone each time the volume increases or decreases.

  • Page 23: Connecting Bluetooth Devices

    The system administrator has also assigned a Computer Friendly Name using LXEZ Pairing Control Panel for the HX3. To connect Bluetooth devices, the HX3 should be as close as possible and in direct line of sight (distances up to 32.8 feet or 10 meters) with the targeted Bluetooth device during the discovery and pairing process.

  • Page 24: Reboot

    When the Windows desktop is displayed or an application begins, the power up (or reboot) sequence is complete. Note: Although the HX3 has no display or alphanumeric keypad, HX3 operating system screens can be viewed and parameters manipulated using LXEConnect and ActiveSync on a connected desktop/laptop computer.
  • Page 25 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. NOTICE Changes or modifications made to this equipment not expressly approved by LXE, Inc., may void the FCC authorization to operate this equipment. EMC Directive Requirements This is a Class B product.
  • Page 26 Li-Ion Battery When disposing of the HX3 main battery, the following precautions should be observed: The battery should be disposed of properly. The battery should not be disassembled or crushed. The battery should not be heated above 212°F (100°C) or incinerated.
  • Page 27 Advertencia: Este producto usa luz de láser. Las etiquetas se proveen en la máquina exploradora. Por favor, lea detenidamente la explicación para las precauciones. (ES) Waarschuwing: Dit product gebruikt laserlicht. Een van de volgende labels is op de scanner aangebracht. Lees a.u.b. de waarschuwing onder Oppassen. (NL) E-EQ-HX3OGWW-H [ 23  ] HX3 User Guide...
  • Page 28 Laser Light Safety Statement E-EQ-HX3OGWW-H [ 24  ] HX3 User Guide...
  • Page 29 Keep dirt and foreign objects out of the battery pocket. Do not short circuit any of the contacts in the battery pocket, this could result in injury or property damage. Do not operate the Desktop Cradle if it has been dropped or damaged in any way. Return the Desktop Cradle to LXE for repair. Storing the Desktop Cradle Disconnect Desktop Cradle from the AC power source by pulling the plug;...
  • Page 30 Do not operate the Desktop Cradle with a damaged AC cord or plug. LXE does not recommend the use of any extension cord with the Desktop Cradle.
  • Page 31 Date, Time, TimeZone Set Speaker Volume Daylight Savings location Set Up A New Device SIP soft input panel Software Setup Extended Battery Standard Battery Extended Cable Status LEDs System Status LED Front Troubleshooting Hardware Setup E-EQ-HX3OGWW-H [ 27  ] HX3 User Guide...
  • Page 32 Index V - W virtual keyboard Voice Case Assembly Volume adjust Warm Boot WEEE Wireless Activity E-EQ-HX3OGWW-H [ 28  ] HX3 User Guide...
