multi N/C pharma HT
3

Function and design

3.1

Layout

The analyzer is a compact table-top device with permanently installed main compo-
nents. Further accessories and reagents are required for the measurement process.
Control of the analyzer and analysis of the measurement data is performed via the mul-
tiWin software.
All components of the analyzer operated or serviced by the user can be accessed via the
two doors on the front, the left-hand removable side wall or the top cover.
The analyzer consists of the following main components:
Sample supply system
¡
Gas box and hose system
¡
Combustion system
¡
¡ Measuring gas drying and cleaning
¡ Detector
¡ Indicator and control elements, connections
Electronics
¡
Accessories
¡

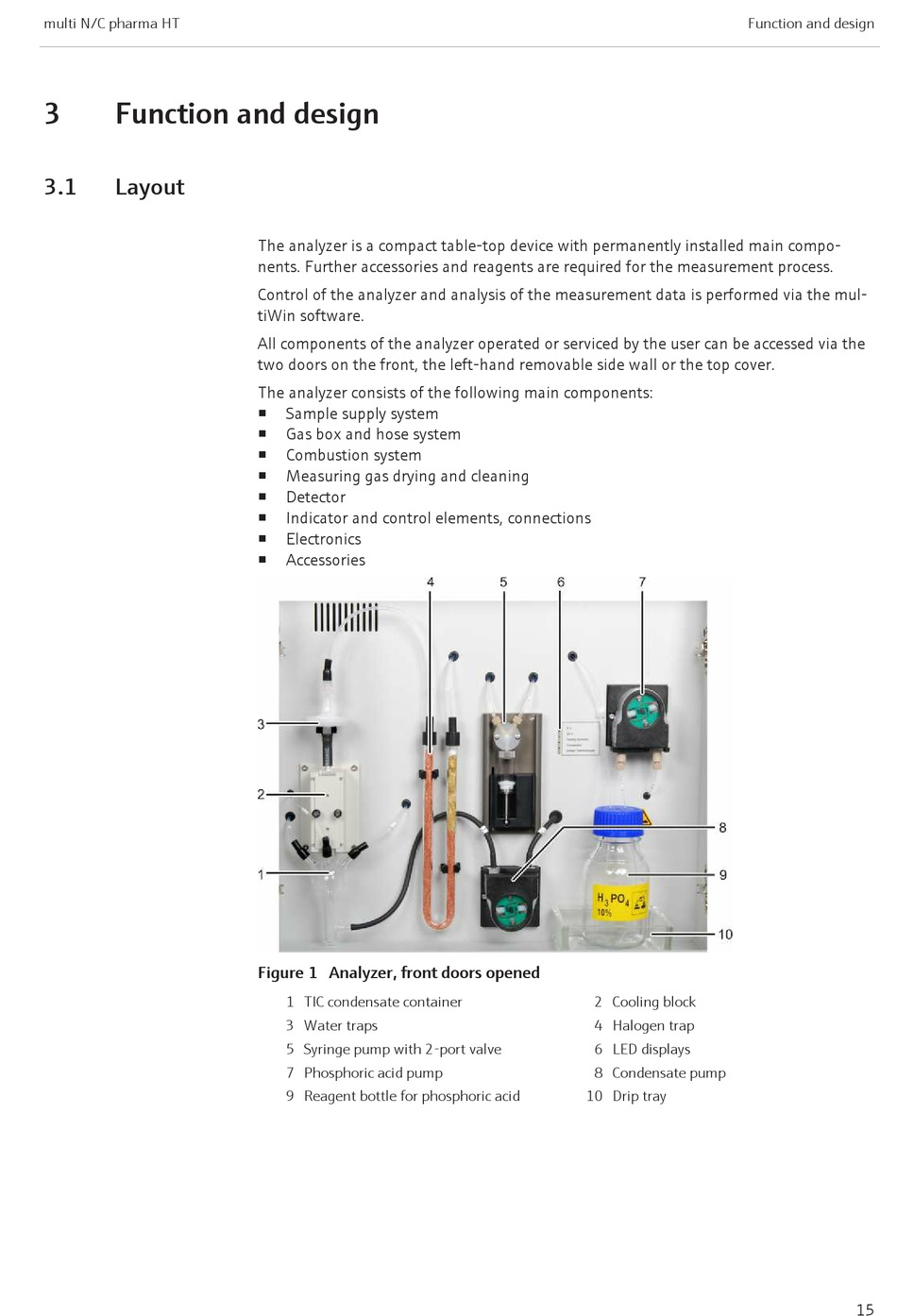

Figure 1 Analyzer, front doors opened
1 TIC condensate container
3 Water traps
5 Syringe pump with 2-port valve
7 Phosphoric acid pump
9 Reagent bottle for phosphoric acid
Function and design
2 Cooling block
4 Halogen trap
6 LED displays
8 Condensate pump
10 Drip tray
