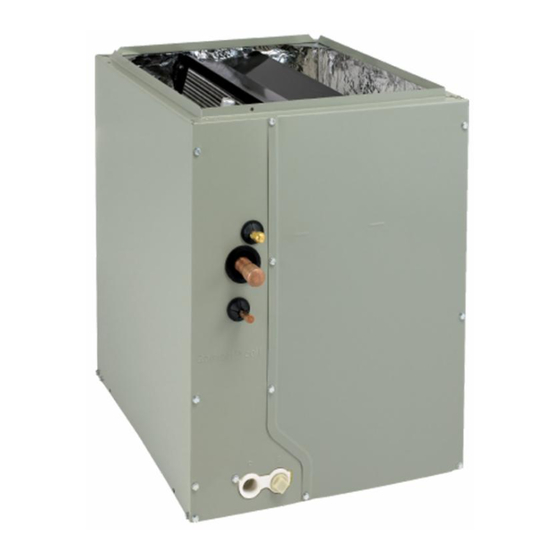

Cased aluminum "convertible" coils

Advertisement

Installer's Guide
Cased Aluminum "Convertible" Coils
Models:
5TXCA001AS3HCA
5TXCA002AS3HCA
5TXCB003AS3HCA
5TXCB004AS3HCA
ALL phases of this installation must comply with NATIONAL, STATE AND LOCAL CODES
IMPORTANT — This Document is customer property and is to remain with this unit. Please return to service information pack
upon completion of work.
!
WARNING
SAFETY WARNING
Only qualified personnel should install and service the
equipment. The installation, starting up, and servicing of
heating, ventilating, and air-conditioning quipment can be
hazardous and requires specific knowledge and training.
Improperly installed, adjusted or altered equipment by an
unqualified person could result in death or serious injury.
When working on the equipment, observe all precautions
in the literatures and on the tags, stickers, and labels, and
that are attached to the equipment.
IMPORTANT: These instructions do not cover all variations in
systems nor provide for every possible contingency to be met
in connection with the installation. Should further information
be desired or should particular problems arise which are not
covered sufficiently for the purchaser's purposes, the matter
should be referrred to your installing dealer or local dsitributor.
!
WARNING
SAFETY HAZARD!
This air handler shall only be connected to an outdoor
unit suitable for use with refrigerant R-454B.
!
WARNING
SAFETY HAZARD!
This appliance is not to be used by persons (including
children) with reduced physical, sensory, or mental
capabilities, or lack of experience and knowledge,
unless they have been given supervision or instructions
concerning the use of appliance by a person
responsible for their safety.
!
WARNING
RISK OF FIRE!
Flammable refrigerant used. To be repaired only by
trained service professional. Do not puncture refrigerant
tubing. Dispose of properly in accordance with federal
or local regulations.
!
WARNING
WARNING!
This product can expose you to chemicals including
lead, which are known to the State of California to cause
cancer and birth defects or other reproductive harm. For
more information go to www. P65Warnings. ca.gov
5TXCB006AS3HCA
5TXCC005AS3HCA
5TXCC007AS3HCA
5TXCD008AS3HCA
18-AD47D1-1B-EN
5TXCC009AS3HCA
5TXCD010AS3HCA
!
WARNING
HAZARDOUS VAPORS!
Failure to follow this caution could result in property
damage or personal injury. Equipment corrosion damage.
To prevent shortening its service life, the unit should not
be used during the finishing phases of construction or
remodeling. The low return air temperatures can lead to
the formation of condensate. Condensate in the presence
of chlorides and fluorides from paint, varnish, stains,
adhesives, cleaning compounds, and cement creates a
corrosive condition which may cause rapid deterioration
of the cabinet and internal components.
!
WARNING
RISK OF FIRE!
Failure to following this warning could result in serious
injury, death, or property damage.
The following requirements apply to the room where the
cased coil is installed:
All combustion appliances located in the same room
that have continuous pilot lights are equipped with an
effective flame arrest.
Auxiliary devices which may be a potential ignition
source, such as hot surfaces or electric switching
devices, shall not be installed in the connecting ductwork
unless they have been approved by the manufacturer or
declared suitable with the refrigerant used.
All indoor field-made joints of the field piping have
been checked for refrigerant leaks after charging
using an electronic leak detector calibrated for R-454B
having a sensitivity of 5 grams per year or better.
The room is constructed to ensure that should any
refrigerant leak it will not stagnate and create a fire
hazard.
!
WARNING
PRESSURIZED REFRIGERANT!
Failure to follow this Warning could result in personal
injury.
System contains oil and refrigerant under high pressure.
Recover refrigerant to relieve pressure before opening
the system. Do not use non-approved refrigerants or
refrigerant substitutes or refrigerant additives.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5TXCA001AS3HCA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Trane 5TXCA001AS3HCA

  • Page 1 18-AD47D1-1B-EN Installer’s Guide Cased Aluminum "Convertible" Coils Models: 5TXCC009AS3HCA 5TXCA001AS3HCA 5TXCB006AS3HCA 5TXCD010AS3HCA 5TXCA002AS3HCA 5TXCC005AS3HCA 5TXCB003AS3HCA 5TXCC007AS3HCA 5TXCB004AS3HCA 5TXCD008AS3HCA ALL phases of this installation must comply with NATIONAL, STATE AND LOCAL CODES IMPORTANT — This Document is customer property and is to remain with this unit. Please return to service information pack upon completion of work.
  • Page 2: Table Of Contents

    Note: Unit not to be used with oil drum type furnaces. Note: Both the drain pans and the refrigerant detection sensor installed on this unit are designed to be heat resistant to temperatures produced by all Trane residential and American Standard furnaces. TABLE OF CONTENTS General .................2...
  • Page 3 Installer’s Guide • The area shall be checked with an appropriate refrigerant • that there is continuity of earth bonding. detector prior to and during work, to ensure the technician Check that cabling will not be subject to wear, corrosion, is aware of potentially toxic or flammable atmospheres.
  • Page 4: Refrigerant Leak Detection System

    Installer’s Guide This process might need to be repeated several times. The recovered refrigerant shall be processed according Compressed air or oxygen shall not be used for purging to local legislation in the correct recovery cylinder, and the refrigerant systems. relevant waste transfer note arranged.
  • Page 5 Installer’s Guide D. REFRIGERANT LEAK DETECTION SYSTEM: WARNING For all tables contained in this section of the manual, the RISK OF FIRE! refrigerant charge is the total system charge which is marked Failure to following this warning could result in serious on the system according to the instructions provided by the injury, death, or property damage.
  • Page 6: Recommendation

    Installer’s Guide E. RECOMMENDATION: G. FURNACE IN DOWNFLOW POSITION: If a coil is part of the total system installation, use the Installer’s CAUTION Guide packaged with the furnaces, outdoor sections, and thermostat for physically installing those components. To prevent damage to pan, ensure Heat Shield is assembled to Horizontal Drain Pan.
  • Page 7: Furnace In Horizontal Right Position

    Installer’s Guide H. FURNACE IN HORIZONTAL RIGHT POSITION: STANDOFFS (4) DRILL SCREWS (4) CAUTION Both the coil and furnace must be fully supported. Do not attempt to suspend the coil using the connection brackets. Note: When installing onto an S-Series furnaces in horizon- tal right or downflow configuration the flanges will be bent FOR UPFLOW / inward for a flush fit.
  • Page 8: Furnace In Horizontal Left Position

    Installer’s Guide I. FURNACE IN HORIZONTAL LEFT POSITION: Note: When installing coil onto an S-Series furnaces in horizontal right or downflow configuration, bend the flanges downward for a flush fit. CAUTION Both the coil and furnace must be fully supported. Do not attempt to suspend the coil using the connection brackets.
  • Page 9: Maximum And Minimum Airflow Settings

    Installer’s Guide Standoffs and screws (See Figure 4) are included with the cased coils for attachment to the furnace. There are clearance alignment holes near the bottom of the coil wrapper. Drill screws are used to engage the top flanges of the furnace. The standoff is inserted into the cabinet alignment hole (See Figure 4).
  • Page 10: Installing / Brazing Refrigerant Lines

    Installer’s Guide When a refrigerant leak of the indoor coil is detected, the refrigerant K. INSTALLING / BRAZING REFRIGERANT LINES: leak detection system turns on the blower of the furnace to dilute leaked refrigerant. WARNING The installer must verify that the indoor airflow setting is sufficient to dilute leaked refrigerant.
  • Page 11 Installer’s Guide PAINTED AREAS OF THE UNIT MUST BE SHIELDED IMPORTANT: DURING BRAZING. Do not unseal refrigerant tubing until ready to fit refrigerant lines. Flow a small amount of nitrogen through the tubing while brazing. There is only a holding charge of dry air in the indoor coil, therefore Use good brazing technique to make leakproof joints.
  • Page 12: Pressure Test

    Installer’s Guide After charging the system, all indoor field-made joints of the field L. PRESSURE TEST: piping shall be checked for refrigerant leaks using an electronic • Using dry nitrogen, pressurize the field piping and indoor coil leak detector calibrated for R-454B having a sensitivity of 5 grams to the lower of the maximum operating pressures listed on the per year or better.
  • Page 13: Wiring - Communicating Systems

    Installer’s Guide P. WIRING - COMMUNICATING SYSTEMS: Use extra CAN connectors provided with communicating furnaces and/or SMART HUB accessories and field provided wiring. After installation, the installer must verify that the refrigerant leak detection system actuates all mitigating actions listed above. The test can be initiated by shorting the two test pins on the header of the mitigation control board inside of the unit.
  • Page 14: Wiring

    Installer’s Guide U. WIRING: Figure 19 The refrigerant detection system must be wired to the furnace thermostat, and outdoor unit in order to function as intended. A 24V wire harness is provided for connections to non- communicating systems. Route 24V harness wires and any extra accessory wires through saddle grommet and provided strain relief wire tie located on MCB control box.
  • Page 15: Field Wiring Diagrams

    Installer’s Guide V: FIELD WIRING DIAGRAMS: Notes: 1. For 24V control, connect factory supplied harness to circuit board at evaporator. Complete all other wiring connections at furnace. 2. For heat pump systems, remove factory Y1 - O jumper at furnace (if equipped). 3.
  • Page 16 Installer’s Guide Notes: 1. Installation of air cleaner will require replacement of furnace transformer. Refer to air cleaner literature. 2. For legacy 40" furnaces (models *UD, *UH, *DD, *DH), do not use EAC wire on the furnace control board. Wire as shown in this diagram.
  • Page 17 Installer’s Guide Notes: 1. Installation of air cleaner will require replacement of furnace transformer. Refer to air cleaner literature. 2. S*X, S*V, A8, A9, L8, or P0 models include EAC or ACC dry contacts as shown. (*UD, *UH, *DD, *DH, or S*B models do not utilize dry contact accessory connections.) 18-AD47D1-1B-EN...
  • Page 18 Installer’s Guide Notes: 1. Refer to air cleaner literature to determine if second air cleaner and/or secondary transformer is required. 2. See the other air cleaner wiring diagrams for control wiring connections. 18-AD47D1-1B-EN...
  • Page 19 Installer’s Guide 18-AD47D1-1B-EN...
  • Page 20: Outline Drawing

    Installer’s Guide 18-AD47D1-1B-EN...
  • Page 21: Troubleshooting Indoor Txv / Cooling Mode

    Installer’s Guide X: TROUBLESHOOTING: Before starting, insure the blower wheel, indoor and outdoor Troubleshooting Indoor TXV / Cooling Mode coils are clean. Correct air Is sub cooling at the Is superheat Is air flow at least flow outdoor unit between <...
  • Page 22: Checkout Procedures

    Installer’s Guide Y: CHECKOUT PROCEDURES: The final phase of the installation is the system Checkout Procedures. The following list represents the most common items covered in a Checkout Procedure. Confirm all requirements in this document have been met. • All wiring connections are tight and properly •...
  • Page 23 Installer’s Guide NOTES: 18-AD47D1-1B-EN...
  • Page 24 About Trane and American Standard Heating and Air Conditioning Trane and American Standard create comfortable, energy efficient indoor environments for residential applications. For more information, please visit www.trane.com or www.americanstandardair.com The manufacturer has a policy of continuous data improvement and it reserves the right to change design and specifications without notice. We are committed to using environmentally conscious print practices.
