INTERFACES
HARDWARE

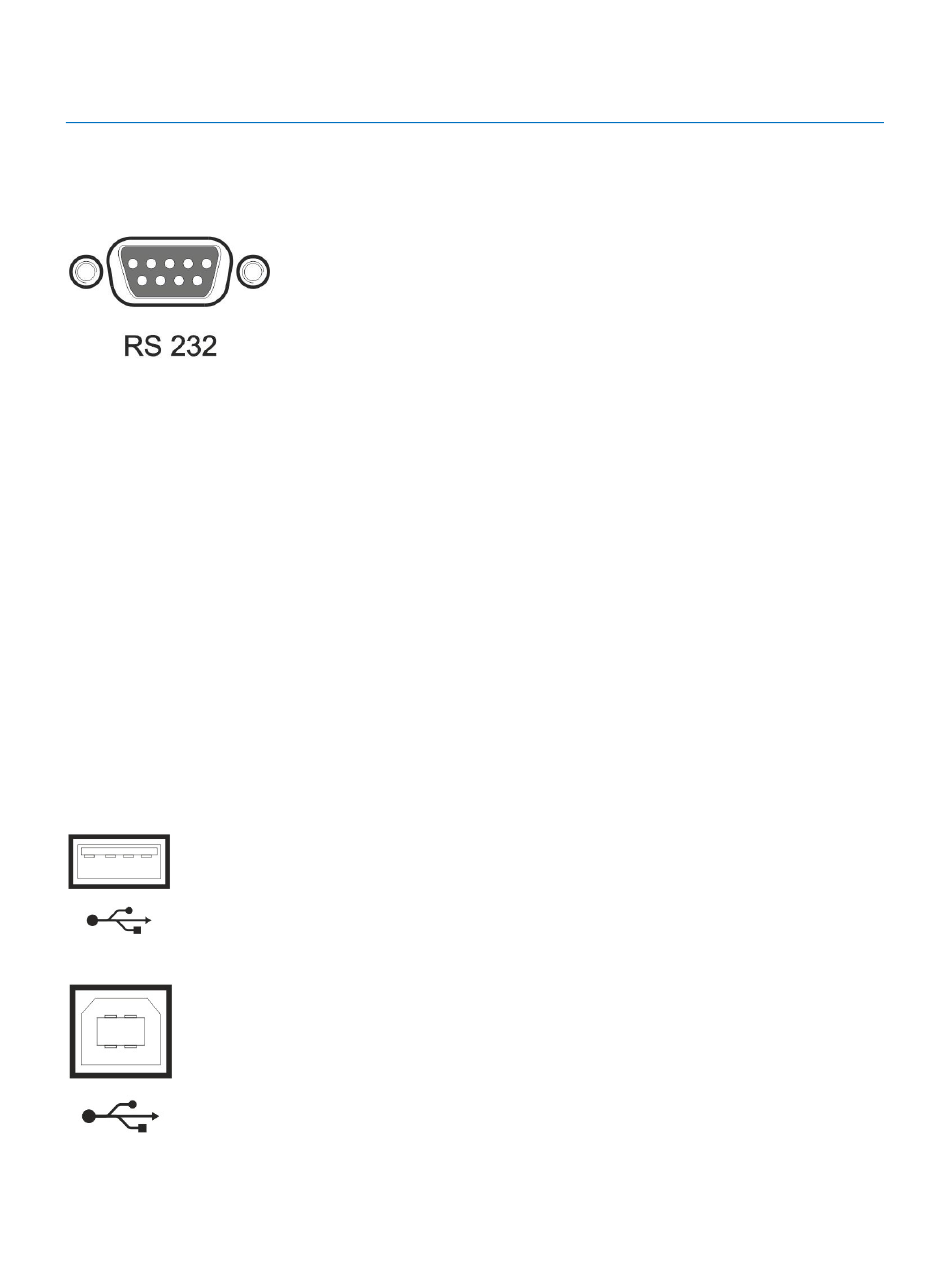

RS 232
TxD (WR → Host)
Pin 2
RxD (Host → WR)
Pin 3
Pin 5
GND
Interface Parameters (fixed, unchangeable):
Port
RS 232
Baudrate
38400 Baud
Databit
8 Bit
Stopbits
1 Bit
Parity
No
USB
USB – Master
Standard 2.0
USB – Slave
Standard 2.0
Version 3.03
WR14 / WR50-12/13 Winding Resistance Meter Instruction Manual
1 x RS 232, 9 Pin
