10M CABLE EXTENSION SET FOR THE WR50-13R

The WR50-13R is available with the optional 10m cable extension sets for the Plug type cable sets
(Note: Cable sets with the ring lug connectors do not have this option available). The Plug type
connector locking system operates on the "push-pull" principle. It self-locks when connected. To
disconnect the Plug type connector, push in first, then pull out.
Connectors that become dirty should be cleaned with industrial alcohol before connecting.

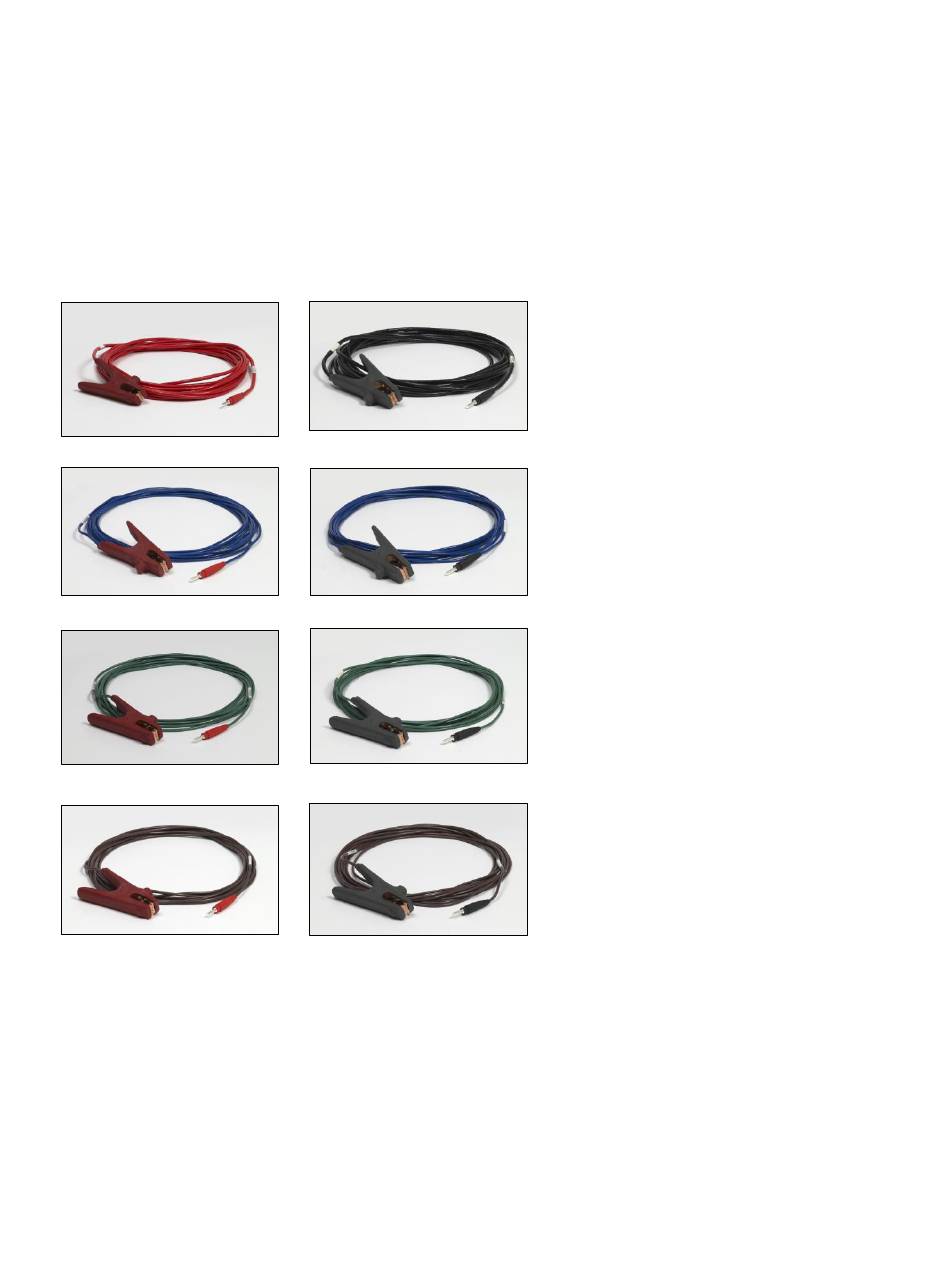

The Cable Extension Set for the WR50-13R consists of the following cables:
It is possible to connect multiple 10M extensions together to increase the length.
Version 3.03 WR14 / WR50-12/13 Winding Resistance Meter Instruction Manual
10M Extensions for the Current
Cables (Positive and Negative)
10M Extensions for the Potential
Cables (Channel 1, Positive and
Negative)
10M Extensions for the Potential
Cables (Channel 2, Positive and
Negative)
10M Extensions for the Potential
Cables (Channel 3, Positive and
Negative)
