MEASURING HIGH- AND LOW- VOLTAGE SIDES IN SERIES

It makes sense to measure the high voltage side in series to the low voltage side to magnetize the

transformer faster. Always select the 2 windings that are on the same part of the core in the same

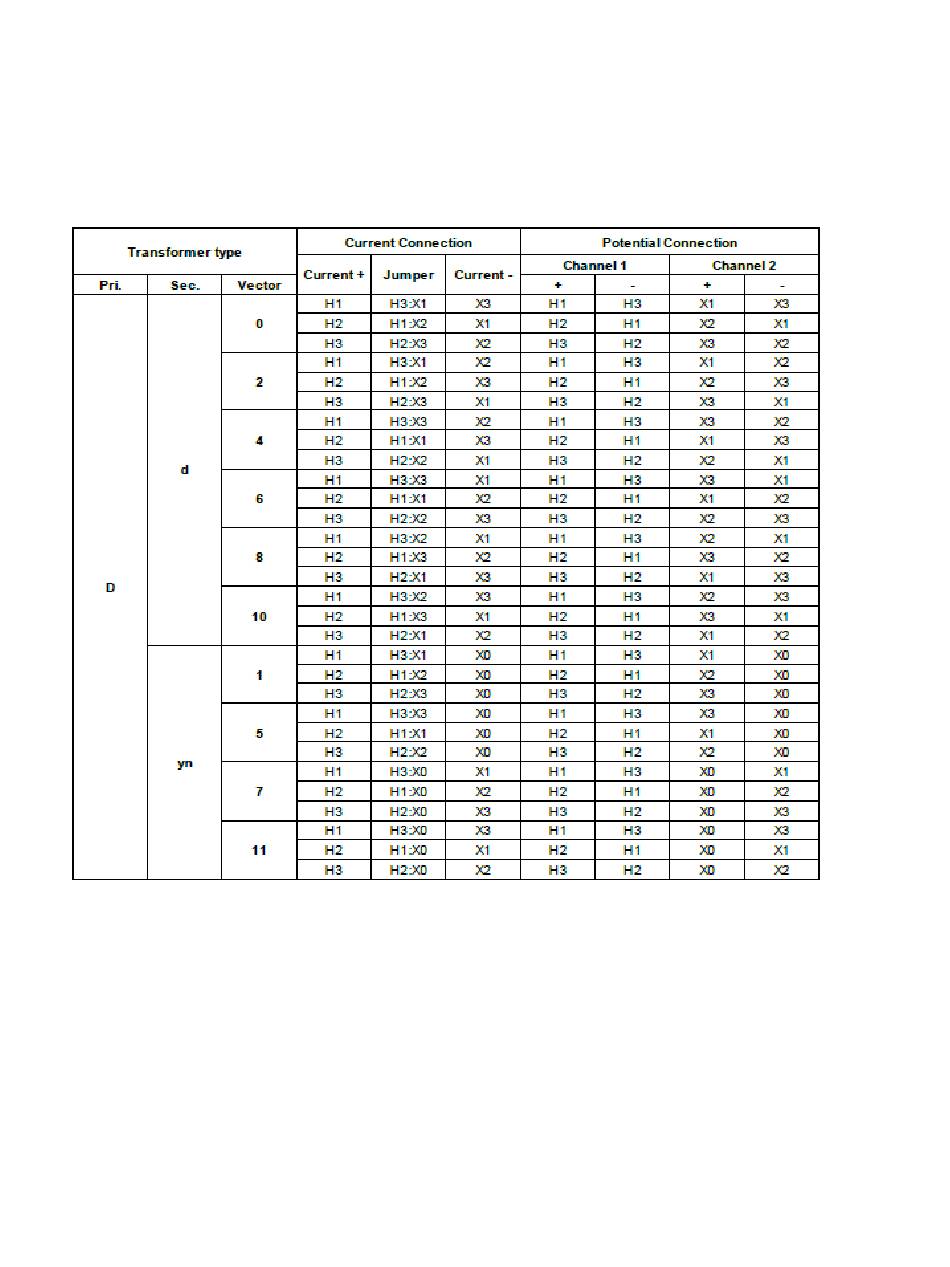

current direction. In the following table you will find examples of transformer connection schemes for

injecting test current and measuring 2 windings simultaneously:
