Using Profiles
When using Profiles, you can select (name) what you want to measure on your test object. The
measurement results are then stored with the corresponding label in the correct place.
This feature is very useful if utilizing a Raytech multiplexer which will automatically set the appropriate
relay. Thus, with a multiplexer, you connect the measurement cables to a Transformer only once and all
measurements are completed without changing any cables.
Check the check box in the Setup under "General."
7
43 WR14 / WR50-12/13 Winding Resistance Meter Instruction Manual

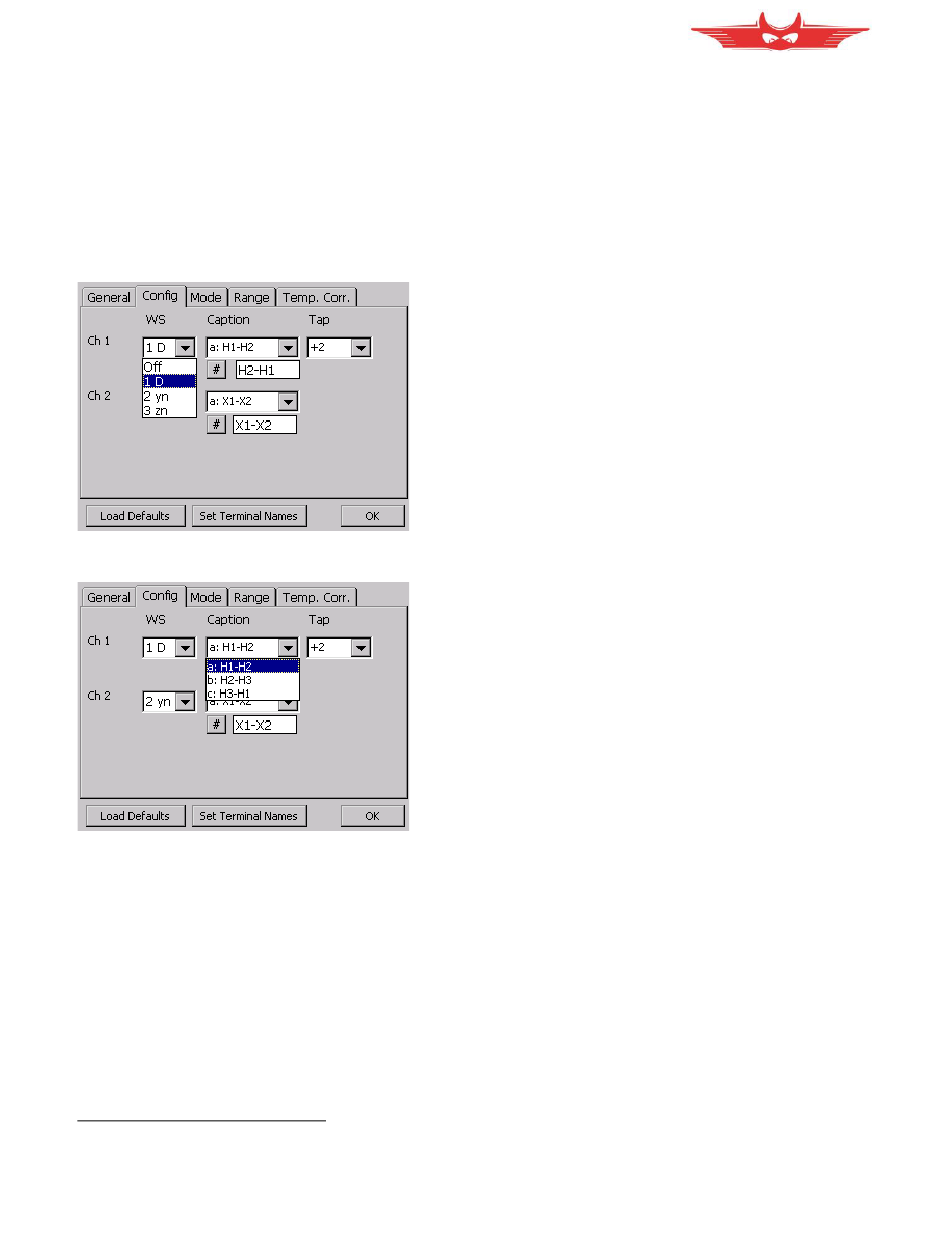

WS: Select the Winding System (1 Primary, 2
Secondary or 3 Tertiary side of the Transformer).
The configuration of the appropriate winding can be
made.
Caption: Select the point locations to be measured.
