Raytech WR14 Instruction Manual page 71

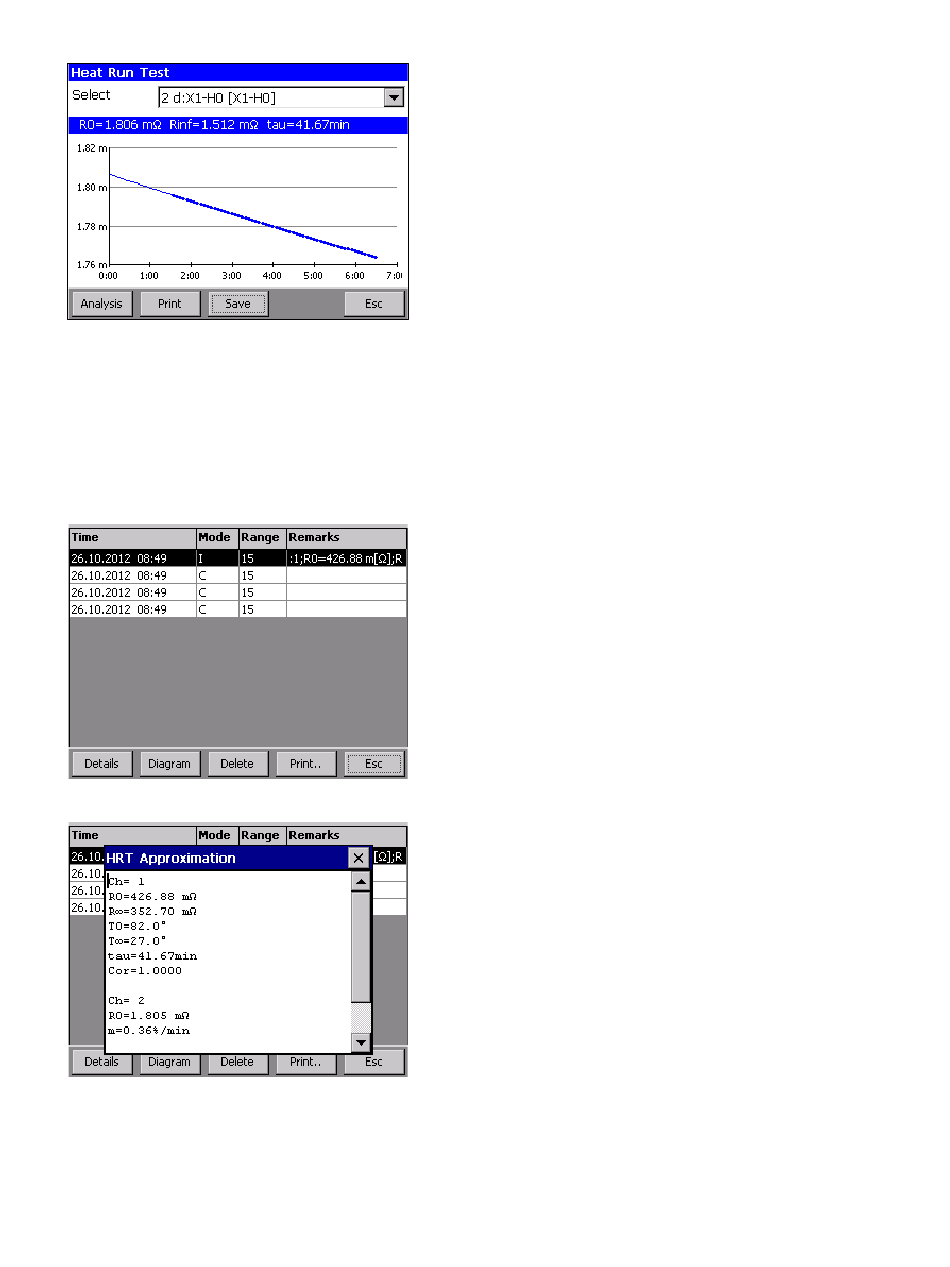

Save the HRT approximation
Select the "Save" button to store the calculated values and Graph as a graphical interchange format file
(gif).
The gif file is attached to the measurement data. If you export the data to a USB Key, the file will be
located in the directory \RAYTECH\DATA\Transformername\
Version 3.03 WR14 / WR50-12/13 Winding Resistance Meter Instruction Manual
You can Print the Graph with the approximation or
Save the calculated values to the corresponding
results.
The values of the corresponding measurement are
stored under Remarks.
Double-click on the highlighted measurement to
open a new window with the calculated results.
70
