Load Transformer Profile from Archive
When preparing to test a transformer, check to see if its Profile is already stored internally in the
instrument or on a USB (key) memory stick. "Use Profiles" must be selected in the General Tab under
Setup. The USB key tab will only be shown if a USB key is inserted in the instrument.
The Profile name that is written in blue is the active Transformer.
Version 3.03 WR14 / WR50-12/13 Winding Resistance Meter Instruction Manual

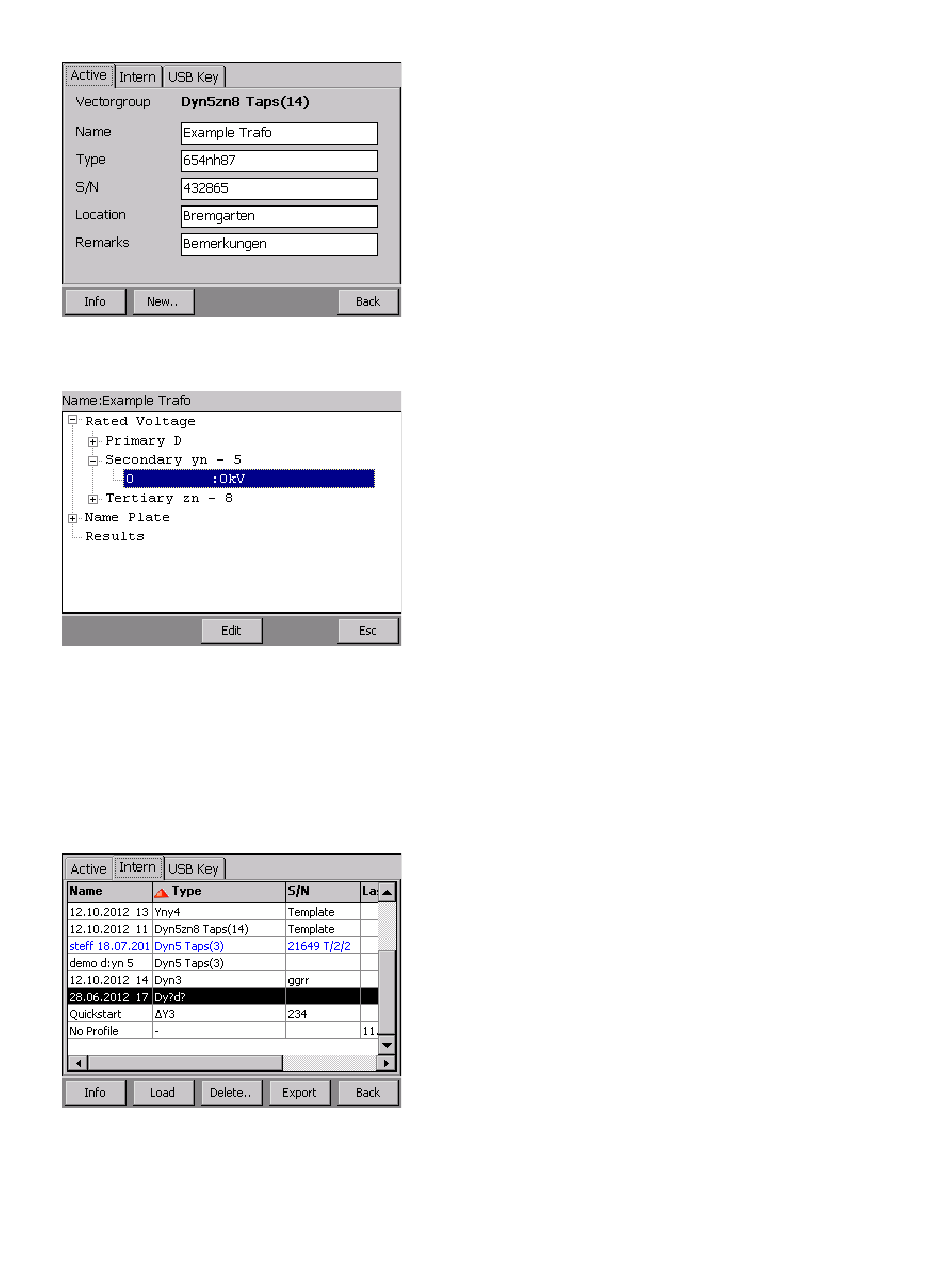

Select 'Info' for more information about the
transformer.
This is the location where additional information
about the transformer can be added.
Touch the tap (Intern or USB Key) and select the
transformer you would like to load.
