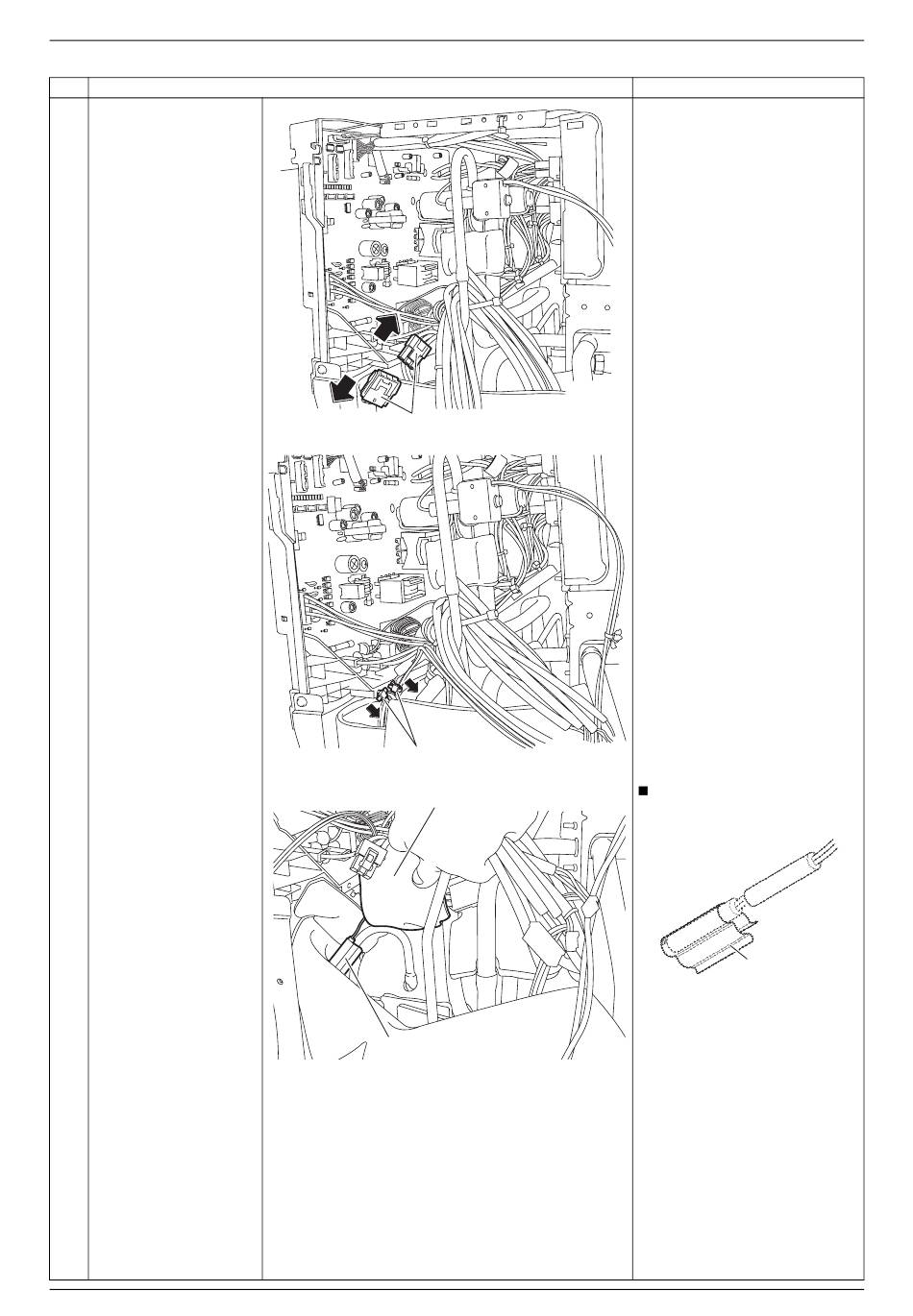

Step
6 Disconnect the relay
connector for
compressor.
7 Pull out the 2 clamps.
8 Open the sound blanket
(top outer) and detach
the discharge pipe
thermistor.
Removal Procedure
Procedure
Relay connector
Clamp
Sound blanket (top outer)
Discharge pipe thermistor
Rear Plate ASSY / Electrical Box
Points
(R22470)
(R22471)
Be careful not to lose the
fixture for the thermistor.
Fixture
(R22472)
(R22559)
