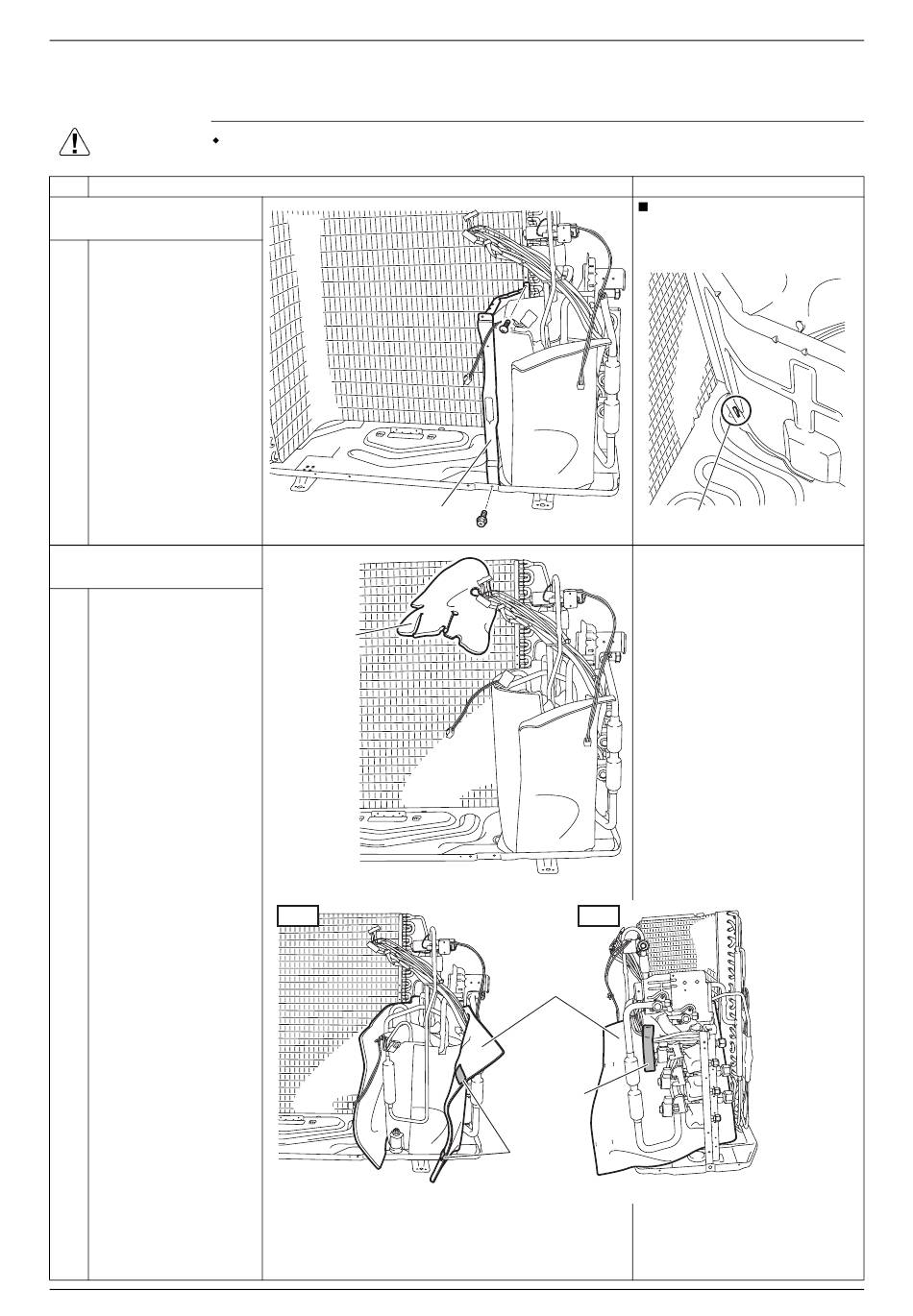

5. Partition Plate / Sound Blankets

Warning
Step
1. Remove the partition
plate.
1 Remove the 2 screws.
2 Lift up the partition plate
and remove it.
2. Remove the sound
blankets.
1 Remove the sound
blanket (top outer).
2 Release the 2 Velcro
tapes (front) and the
Velcro tape (right) on
sound blanket (outer).
Removal Procedure
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Procedure
Partition plate
Sound blanket
(top outer)
Front
Partition Plate / Sound Blankets
When reassembling, fit the
lower hook into the bottom
frame.
Hook
(R22487)
(R22489)
Right
Sound blanket
(outer)
Velcro tape
(right)
Velcro tape
(front)
Points
(R22488)
(R22490)
